Square D LHL36350

B000LETTX4

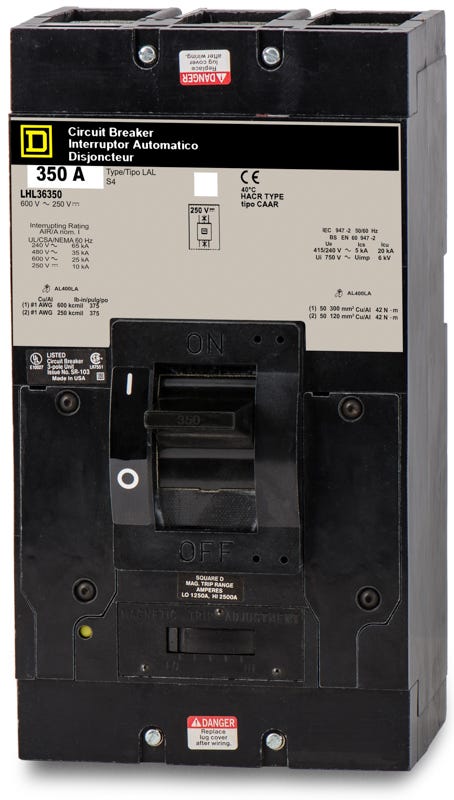

SQUARE D LHL36350 BN 350A 600V 3P New LINE/Load LUGS

SQUARE D LHL36350 BN 350A 600V 3P New LINE/Load LUGSzoom

Attributes

Key Value
AC Voltage Rating600V AC
Amperage350A
Amperage (Molded Case B.350 Amp
Amperage Rating350, 350, 350 A
Amps350 A
ApprovalUL Listed, CE and CSA C.
BrandSquare D, Square D by S.
Breaking Capacity CodeH
California Proposition .DINP, which is known to.
Catalog NumberLHL36350
Catalog PageN/A
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeHigh Interrupting Capac.
ComponentMolded Case Circuit Bre.
ConnectionLugs load;lugs line
Connection typeLine/Load Lug
Country of OriginMexico
Country of Origin (subj.Mexico
Current Rating350 A
DC Voltage Rating250V DC
Depth5.84 in
Dimensions5.84 in L x 6 in W x 11.
DisplayLHL36350 Circuit breake.
Electrical Connectionlugs load || lugs line
Environmental DisclosureENVPEP1410004EN
Eu Rohs DirectiveCompliant
For Use With-
FrameH
Frame Size400A/LA
Frame Type (Molded Case.LH Frame
Frequency Rating50/60, 50/60 Hz
Gtin785901563280
Halogen Content Perform.Halogen free plastic pa.
Height11 in, 11.0, 11.0 in
Height UOMInch
High Amp Trip Setting3,500 A
Instantaneous TripInstantaneous
Interrupt Rating250 V DC-600 V AC,50 KA.
Interrupt Rating (Molde.50 kA 125 Volt, 50 kA 2.
ItemMolded Case Circuit Bre.
Item Typecircuit breaker
Item?5B924
Length5.84
Length UOMInch
Line Rated Current350 A
Low Amp Trip Setting1,750 A
Made in USANo
Magnetic Hold Current1750 A
Magnetic Tripping Curre.3500-3500 A
ManufacturerSquare D, Schneider Ele.
Max. AIR Rating50 kA at 250V DC, 50kA .
Max. Wire Size250 MCM; 600 MCM, 250 M.
Maximum Voltage (Molded.250 VDC, 600 VAC
Mercury FreeYes
Mfr. Model?LHL36350
Min. Wire Size1/0 AWG
MountingFree Standing
Mounting (Molded Case B.unit mount
Mounting Modeunit mount
Mounting typeUnit
Mounting TypePlug-On
MpnLHL36350
Number of Poles3
Phase3, Three, 3, 3 ph
Phase ConnectionABC
Poles3
Poles (Molded Case Brea.Three Pole
Poles Description3P
Product CertificationsIEC || CSA || UL Listed
Product Or Component Ty.circuit breaker
Pvc FreeYes
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesLHL
Special Featuresunit mount
StandardIEC-CSA-UL LISTED
StandardsCSA, IEC, UL, CSA, IEC,.
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.-13 to 158, -13 to 158 .
Terminal ConnectionLine/Load Lug
Terminal IdentifierAL400LA
Tightening Torque13-13 N.m 42-304 mm? (A.
Trip Range1750 to 3500, 350/1750/.
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
UNSPSC39121601
Upc785901563280
UPC785901563280
Voltage600
Voltage Rating600 VAC, 250 VDC, 600 V.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width6.0, 6.0 in, 6 in
Width UOMInch
Wire Size1 AWG to 250 kcmil, 1 A.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG7CXM4.4694122SQUARE D4.4694 @ 1
simplybreakers.comLHL363502273.991In StockSchneider Electric2273.99 @ 1
AmazonTPB007IAI24G2284.631221SQUARE D2284.63 @ 1
thumbzoomsuperbreakers.comLHL363503436.3815Square D3436.38 @ 1
thumbzoomZoroG30635845243.4912270Square D5243.49 @ 1
thumbzoomstandardelectricsupply.com2478866232.42122Square D (Schneider Electric)6232.42 @ 1
thumbzoomRadwellLHL363506333.79122SCHNEIDER ELECTRIC16.06333.79 @ 1
thumbzoommayerelectric.comSQDLHL363506574.81122SQUARE D6574.81 @ 1
thumbzoomgordonelectricsupply.comLHL363506665.012210SQUARE D6665.0 @ 1
Newark16B5266943.461In StockSQUARE D BY SCHNEIDER ELECTRIC6943.46 @ 1
thumbzoomcrescentelectric.com655167480.06122Square D by Schneider Electric7480.06 @ 1
us.rs-online.com714150727787.7122Square D7787.7 @ 1
Grainger5B9248094.45122SQUARE D8094.45 @ 1
rspsupply.comSCHNEIDER LHL363508277.93122Schneider Electric8277.93 @ 1
thumbzoomsustainablesupply.comC12039838365.78122Square D16.48365.78 @ 1
steinerelectric.com3181208376.3122Square D?8376.3 @ 1
grainger.caSQDLHL363508987.08956932122SQUARE D15.128987.08956932 @ 1
industrialrefrigerationparts.comLHL3635011971.81In StockSquare D11971.8 @ 1
