Square D by Schneider Electric HOM3060L225PC

B00MZSO8E4

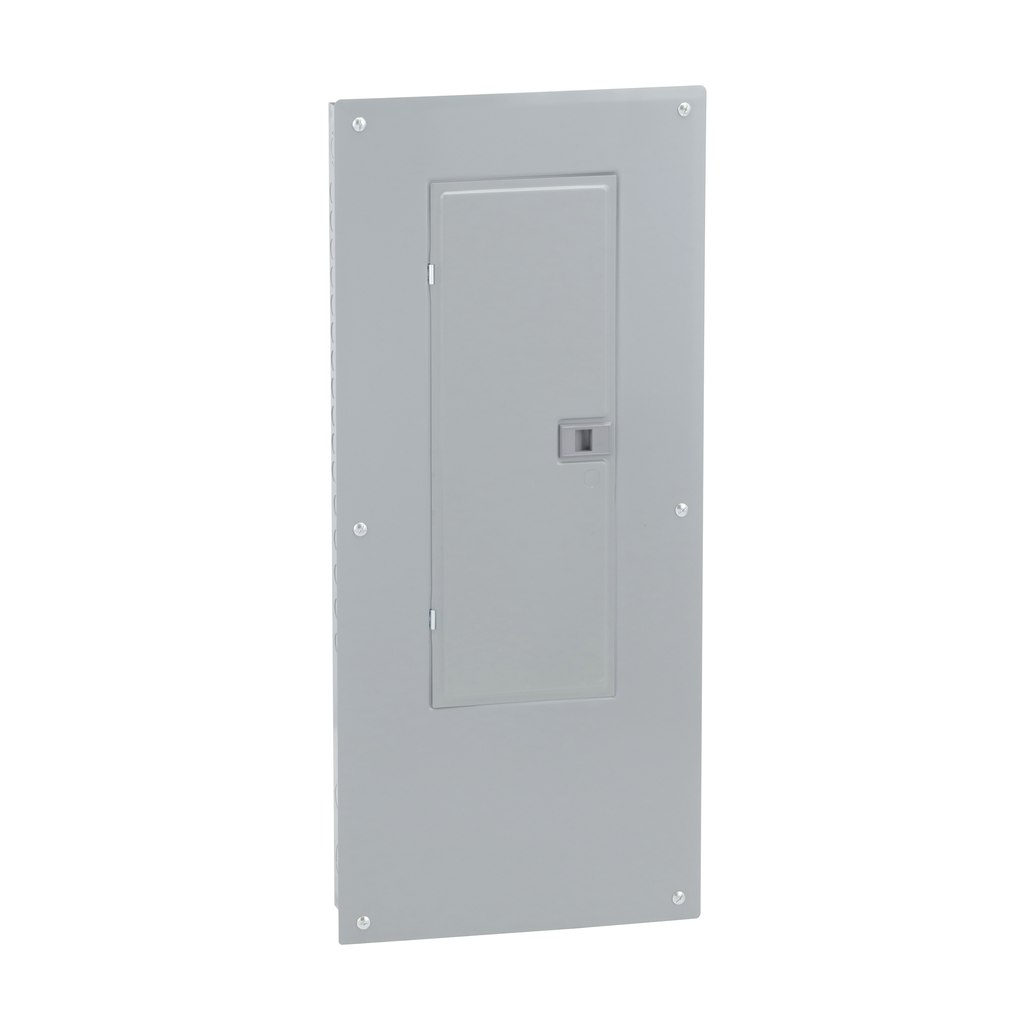

Square D - HOM3060L225PC 200A Load Center

Square D - HOM3060L225PC 200A Load Centerzoom

Attributes

Key Value
Ambient Air Temperature.-5 ?C || 40 ?C
Amperage225A
Amperage Rating225
ApplicationDESIGNED TO MEET RESIDE.
Awg GaugeAWG 4...250 kcmil coppe.
AWG RangeAWG 4...250 kcmil Coppe.
Box Number10
BrandSquare D by Schneider E.
Cable SizeAWG 4...250 kcmil coppe.
California Proposition .Lead and lead compounds.
Catalog NumberHOM3060L225PC
China Rohs RegulationPro-active China RoHS d.
Colorbaked enamel Gray
Color FamilyGray
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Cover Typecombination flush/surfa.
Depth95 mm
Device Compositiongrounding bar (ordered .
ECCNEAR99
Enclose TypeIndoor
EnclosureBaked enamel Gray;Welde.
Enclosure Materialwelded sheet steel
Environmental DisclosureENVPEP1403002
Eu Rohs DirectiveCompliant
Height858 mm
Interrupt Rating10 kA
ItemLoad Center, Homeline,L.
Item TypeLoad Center
Item Weight29.00 lbs per EA
Line Rated Current225 A
Load Center Typemain lugs
Made in USAYes
Main TypePoN Convertible Mains (.
ManufacturerSchneider Electric
Materialtin plated aluminium bu.
Max Number of Circuits60
Max. Single Pole Circui.30
Max. Tandem Circuits60
Mercury FreeYes
Mount TypeCombination
Nema Degree Of Protecti.NEMA 1 indoor
No. of Circuits60
No. of Spaces30
No. of Wires3-wire
Number Of Circuits60
Number Of Spaces30
Number of Spaces30
Number Of Tandem Circui.30
Package Quantity1
Phase1, Single, 1 phase
Product CertificationsUL listed file E-6294
Product Or Component Ty.Load Center
Range Of ProductHomeline
Rated Current225A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesHomeline
Short-Circuit Current10 kA
Special Featurestin plated aluminium bu.
StandardUL E-6294
Sub BrandHomeline
Surface Finishbaked enamel Gray
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
UL ListedYes
UNSPSC39121101
UPC785901977209
Voltage120V/240V
Voltage Rating120/240 V AC
Width362 mm
Wire Size#4-250 AWG/kcmil (Coppe.
Wiring Configuration3-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHOM3060L225PC113.591In StockSQUARE D113.59 @ 1
thumbzoommayerelectric.comSQDHOM3060L225PC127.411In StockSQUARE D127.41 @ 1
steinerelectric.com817762138.231In StockSquare D?138.23 @ 1
JugenheimerJI544523139.991In StockSquare D Co.29.0139.99 @ 1
thumbzoomRadwellHOM3060L225PC150.01In StockSCHNEIDER ELECTRIC SQUARE D150.0 @ 1
thumbzoomZoroG3304923172.01In Stock33Square D30.3172.0 @ 1
Graybar25649653508.0321In StockSquare D (Schneider Electric)508.032 @ 1
thumbzoomcrescentelectric.com226872594.719Square D by Schneider Electric594.7 @ 1
Home Depot2048363709999.01In StockSquare D9999.0 @ 1
