TE Connectivity 770096-1

B00KSV1JMO

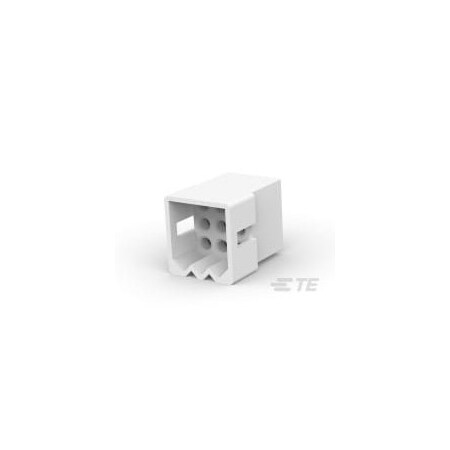

TE Connectivity Part Number 770096-1

TE Connectivity Part Number 770096-1zoom

Attributes

Key Value
Agency ApprovalsCSA ; UL
Alternate Mfr Part Numb.770096-1
Alternate Part No.571-7700961
AngleStraight
Base Product Number770096
BrandTE Connectivity
CategoryConnectors, Interconnec.
Centerline (Pitch)5.03?mm?[?.198?in?]
Circuit ApplicationPower & Signal
ColorNatural
ConnectorWire & Cable
Connector Mounting TypeCable Mount (Free-Hangi.
Connector SystemWire-to-Wire
Connector TypePlug
Contact Diameter0.093 in.
Contact LayoutMatrix
Contact RetentionWithout
Contact TerminationCrimp
Contact TypeMale or Female, Pin, So.
Country of Origin (subj.United States
Current Rating13 A
DescriptionCONN PLUG HSG 9POS 5.03.
Detailed Description9 Rectangular Connector.
Digi-Key Part NumberA14065-ND
Fastening TypeDetent Lock
Features-
GenderPlug
Glow Wire RatingStandard Part - Not Glo.
Housing ColorNatural
Housing MaterialNylon 6/6, Nylon
Housing TypePlug
Insulation MaterialPolyamide (PA), Nylon
Lock TypeDetent Lock
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.770096-1
Manufacturer Product Nu.770096-1
Manufacturer Standard L.8 Weeks
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line),.
NoteContacts Not Included
Number of Circuits9
Number of Contacts9
Number of Positions9
Number of Rows3
Number of Signal Positi.9
Operating Temperature-55?C ~ 105?C, +25 to +.
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage250
Overall Length0.97 "
PackageBulk
Packaging MethodPackage
Panel Mount FeatureWithout
Pin Spacing0.198 in
Pitch0.198" (5.03mm), 5.03 mm
Primary TypeSoft Shell
Product CategoryPin & Socket Connectors
Product HeaderFree Hanging Mounted Pl.
Product StatusActive
Product TypeHousing, Plug Housings
Row Spacing0.198" (5.03mm)
Row-to-Row Spacing5.03?mm?[?.198?in?]
SealableNo
SeriesCommercial MATE-N-LOK, .
Special FeaturesFree Hanging
StandardsRoHS Compliant, ELV Com.
Termination Method to W.Crimp
TradenameMATE-N-LOK
TypePlug
UL Flammability RatingUL 94V-2
Voltage Rating250 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Hawk Electronics770096-10.19100526TE Connectivity0.19 @ 100
Power and Signal Group770096-10.22842000526TE Connectivity0.2284 @ 2000
thumbzoomNewark89F27210.3522000284AMP - TE CONNECTIVITY0.352 @ 2000
Onlinecomponents.com770096-10.46603062TE Connectivity0.46 @ 60
HotendaH14724500.481526TE Connectivity AMP Connectors0.48 @ 1
thumbzoomswatee.com770096-10.512189TE Connectivity0.5 @ 1
us.rs-online.com700874630.5151749TE Connectivity0.51 @ 5
TE Connectivity770096-10.52791146TE Connectivity (TE)0.5279 @ 1
thumbzoomDigi-Key1877000.531275TE Connectivity AMP Connectors0.53 @ 1
thumbzoomZoroG0010444130.5416526Te Connectivity0.54 @ 16
AmazonSCB00M1LVALO11.091526TE Connectivity / AMP11.09 @ 1
