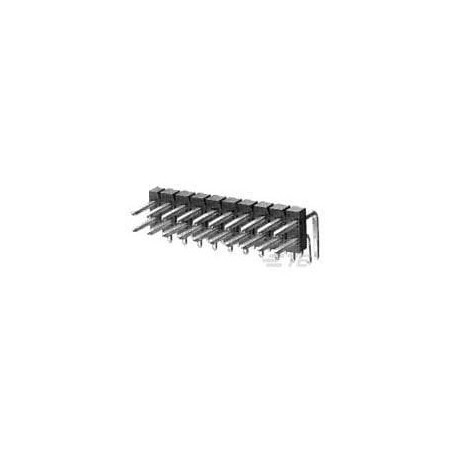

TE Connectivity 826634-4

mpn826634-4
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Connectivity Part Number 826634-4

TE Connectivity Part Number 826634-4

zoom

Brand: TE Connectivity
PartNumber: 826634-4
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Applications	-
Base Product Number	826634
Category	Connectors, Interconnec.
Connector	pin header
Connector series	AMPMODU Mod II
Connector Type	Header, Breakaway
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	3.90?in (0.099?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.126" (3.20mm)
Contact Material	Brass
Contact plating	selectively gold plated
Contact Shape	Square
Contact Type	Male Pin
Contacts pitch	2.54mm
Country of Origin (subj.	Poland
Current Rating (Amps)	5A
Description	CONN HEADER R/A 8POS 2..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	A121768-ND
Electrical mounting	THT
Fastening Type	Push-Pull
Features	-
Height	6.7mm
Ingress Protection	-
Insulation Color	Green
Insulation Height	0.219" (5.56mm)
Insulation Material	Polybutylene Terephthal.
Kind of connector	male
Leads dimensions	L 3.2mm
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	826634-4
Manufacturer Standard L.	24 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole, Right Ang.
Number of pins	8
Number of Positions	8
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-65?C ~ 105?C
Overall Contact Length	-
Package	Bulk
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	AMPMODU Mod II
Shrouding	Unshrouded
Spatial orientation	angled 90?
Style	Board to Board or Cable
Termination	Solder
Type of connector	pin strips
Type of pin configurati.	2x4
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Future Electronics	C012938931	0.612	4800	196		TE Connectivity		0.612 @ 4800
	Waldom	TE CONNECTIVITY AMP BRAND 826634-4	0.66	4800	86		TE CONNECTIVITY/AMP BRAND		0.66 @ 4800
	Zoro	G401044402	0.89	2400	112	135	Te Connectivity		0.89 @ 2400
	Digi-Key	2276152	0.93	1	6842		TE Connectivity AMP Connectors		0.93 @ 1
	Newark	96Y4843	0.967	1	80		AMP - TE CONNECTIVITY		0.967 @ 1
	Hotenda	H1302753	1.11	1	196		TE Connectivity AMP Connectors		1.11 @ 1
	TME	826634-4	1.29	1	77		TE Connectivity		1.29 @ 1
	Onlinecomponents.com	826634-4	1.823	20	1		TE Connectivity / AMP		1.823 @ 1
