TE Connectivity TSPDF11FGRA0

B083TB9L3N

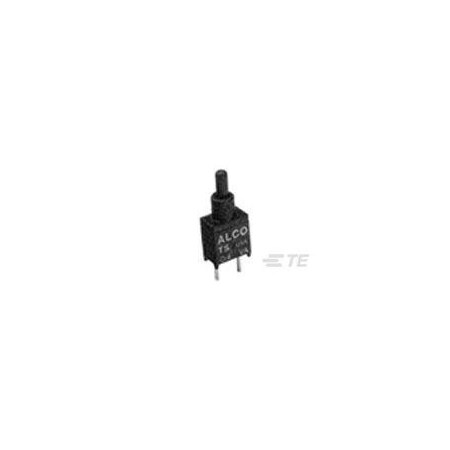

TSPDF11FGRA0, Switch Push Button ON (ON) SPDT Flush Round Button 20VAC 20VDC 0.4VA Momentary Contact Thru-Hole PC Pins Loose

TSPDF11FGRA0, Switch Push Button ON (ON) SPDT Flush Round Button 20VAC 20VDC 0.4VA Momentary Contact Thru-Hole PC Pins Loosezoom

Attributes

Key Value
Actuator ColorBlack
Actuator Length5.08 mm [ .2 in ]
Actuator MarkingNo Marking
Actuator MaterialNylon - GF
Actuator ProfileFlush
Actuator StyleRound
Actuator TypeRound, Plunger, Flush
Alternate Mfr Part Numb.3-1437573-6
Base Product NumberTSPDF11
Button Width2.54 mm [ .1 in ]
Case MaterialThermoplastic (LCP)
CategorySwitches
CircuitSPDT
Color - Actuator/CapBlack
Configuration (Pole-Thr.Single Pole - Double Th.
Contact PlatingGold over Nickel
Current Rating (Amps)0.4VA (AC/DC)
DescriptionSWITCH PUSHBUTTON SPDT .
Detailed DescriptionPushbutton Switch SPDT .
Digi-Key Part Number450-2018-ND
Dust ProofNo
Electrical Life60,000 Cycles
ESD Grounding TerminalWithout
FeaturesProcess Sealed
IlluminatedNo
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
Low ProfileNo
ManufacturerTE Connectivity ALCOSWI.
Manufacturer Product Nu.TSPDF11FGRA0
Mechanical Life-
MfrTE Connectivity ALCOSWI.
Mounting AngleRight Angle
Mounting TypeThrough Hole, Through H.
Number of ActuatorsSingle
Operating Temperature-30?C ~ 85?C
PackageBulk
Panel Cutout Dimensions-
Process SealedYes
Product StatusLast Time Buy
Product TypeSwitch
Seal TypeRubber O-Ring
SeriesTSP
Snap ActionWithout
Support BracketWithout
Switch FunctionOn-Mom
Switch TypePushbutton
Temperature RatingHigh
Termination StylePC Pin
TypeStandard
Voltage Rating20 VAC [ 20 VDC ]
Voltage Rating - AC20 V
Voltage Rating - DC20 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomComponent Electronics171-1285.381225Alcoswitch5.38 @ 1
WaldomTE CONNECTIVITY TSPDF11FGRA011.0500In StockTE Connectivity11.0 @ 1
Newark15H073211.34500In StockALCOSWITCH - TE CONNECTIVITY11.34 @ 500
thumbzoomDigi-Key52954911.63964500In StockTE Connectivity ALCOSWITCH Switches11.63964 @ 500
us.rs-online.com7203248712.64500In StockTE Connectivity12.64 @ 500
Onlinecomponents.comTSPDF11FGRA036.461499TE Connectivity / Alcoswitch Brand36.46 @ 1
thumbzoomZoroG300968335119.910In StockAlcoswitch119.9 @ 10
