Tritan 60BS15H X 1

mpn60BS15H X 1
brandname: Tritan
manufacturername: Tritan

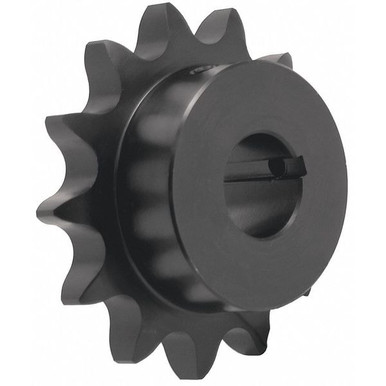

TRITAN 60BS15H X 1 Finished Bore B-Hub Sprocket, 15 Teeth, 3/4" Pitch, 1" Finished Bore

TRITAN 60BS15H X 1 Finished Bore B-Hub Sprocket, 15 Teeth, 3/4" Pitch, 1" Finished Bore

zoom

Brand: Tritan
PartNumber: 60BS15H X 1
Model: 60BS15H X 1
PackageQuantity: 1
Binding: Misc.
Manufacturer: Bearings Ltd.
Label: Bearings Ltd.

Attributes

Key	Value
ANSI Sprocket Number	60
Bore Dia. (In.)	1
Bore Dia. - Sprockets	1 Inch
Bore Diameter	1 in
Bore Type	Finished Bore with Keyw.
Brand	Tritan
Chain Number	60
Color	Black
Country of Origin (subj.	China
Current Stock	9
Finish	Black Oxide
For Chain Number	60
For Chain Pitch	3/4 in
For Number of Strands	Single
For Use With	Roller Chain
Hub Dia.	2.875 in
Hub Dia. (In.)	2-7/8
Hub Diameter	2 7/8 in
Hub Projection	1 in
Hub Type	One Side
Includes	Standard Keyway and (2).
Industry Chain Pitch	3/4 in
Industry Chain Size	60
International Shipping	No
Item	Sprocket
Item - Roller Chain Spr.	Roller Chain Sprocket
Keyseat Size (In.)	1/4 x 1/8
Keyway	Yes
Keyway Depth	1/8 in
Keyway Size	1/4 in x 1/8 in
Keyway Width	1/4 in
Lead Time	Expected to ship in 1-2.
Length through Bore	1.250", 1 1/4 in
Length through Bore (In.	1-1/4
Material	Steel
Material - Sprockets	Forged 1045 Alloy Steel
Maximum Bore Diameter	1 in
Mpn	60BS15H X 1
Number of Chain Rows	Single
Number of Set Screws	2
Number of Teeth	15
Number of Teeth - Sproc.	15
Outside Dia.	3.976 in
Outside Dia. (In.)	3.976
Outside Diameter	4 in
Pitch	3/4"
Pitch Dia.	0.75 in
Pitch Dia. (In.)	0.750
Pitch Diameter	3.608 in
Set Screw Dia. (In.)	5/16
Set Screw Hole Dia.	0.313 in
Set Screw Location	Setscrews are Placed Ov.
Set Screw Size	5/16 in
Setscrew Location	One Setscrew Over The K.
SKU	ZO-G0028546
Sprocket Bore Type	Fixed Bore
Sprocket Hub Type	B Hub Type
Standards	ANSI B29.1, BIS
SubCategory	Power Transmission
Teeth Heat Treatment	Hardened Teeth
Temp. Range (F)	-50 to +500? F
Tooth Width	0.459 in
Type	Finished Bore
UPC	888569105738
Width Across Tooth Sets	Not Applicable
