- mpnUCF212-39
- brandname: TRITAN
- manufacturername: TRITAN

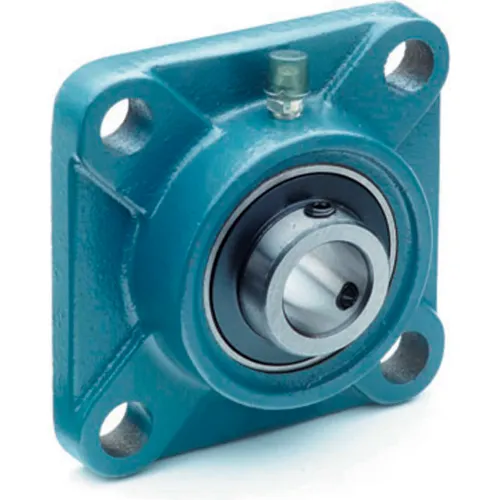

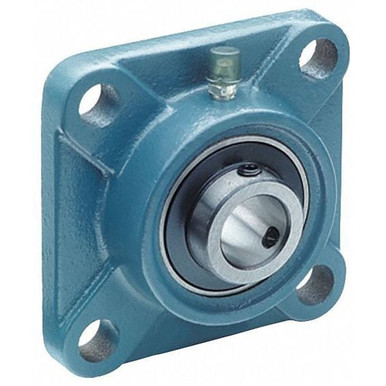

UCF212-39 - TRITAN - Factory New!
- Brand: Tritan
- PartNumber: UCF212-39
- PackageQuantity: 1
- Manufacturer: TRITAN
- Label: TRITAN
Attributes
| Key | Value |
|---|
| Bearing Housing Materia. | Cast Iron |
| Bearing Insert Material | 52100 Steel, Alloy Steel |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Lubrication | Shell Alvania RL2 or NL. |
| Bearing Material Grade | 52100 |
| Bolt Hole Center-to-Cen. | 5.6299" |
| Bolt Size | 5/8 in |
| Bore Dia. | 2.4375" |
| Bore Diameter | 2 7/16 in |
| Bore Type | Cylindrical |
| Brand | Tritan |
| Closure | Double Sealed |
| Color | Blue |
| Current Stock | 22 |
| Dynamic Load Capacity | 10,723.39 lbf, 10745 Lbf |
| Features | Anti-Rotation Device, C. |
| Finish | Painted |
| Flange Thickness | 0.781 in |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Square |
| Included Bearing | UC212-39 |
| International Shipping | No |
| Item | 4-Bolt Flange Bearing, . |
| Lead Time | Expected to ship in 1-2. |
| Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Center-to-Ce. | 5.625 in |
| Mount Hole Center-to-Ce. | 5.625 in |
| Mount Hole Size | 3/4 in |
| Mounting Bolt Size | 5/8 in |
| Mpn | UCF212-39 |
| Number of Mount Holes | 4 |
| Overall Height | 68.7 mm, 6.89 in |
| Overall Length | 6.89 in, 175 mm |
| Overall Width | 2.703 in, 175 mm |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Series | UCF |
| Shaft Locking Type | Set Screw, Set Screws |
| SKU | ZO-G9446972 |
| Standards | ISO, AFBMA, AFBMA, ISO |
| Static Load Capacity | 7373 Lbf |
| Static Radial Load Capa. | 7,396.21 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| UPC | 888569052933 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G9446972 | 83.19 | 1 | 37 | | Tritan | 9.23 | 83.19 @ 1 |
 | simsupply.com | ZO-G9446972 | 102.58 | 1 | 22 | | Tritan | | 102.58 @ 1 |
 | Global Industrial | WBB1873286 | 126.94 | 1 | In Stock | | Tritan | | 126.94 @ 1 |
| grainger.ca | WWG36UY45 | 154.20474276 | 1 | In Stock | | TRITAN | 9.23 | 154.20474276 @ 1 |
 | Raptor Supplies | AH7JXU | 188.4187305 | 1 | In Stock | | TRITAN | | 188.4187305 @ 1 |
