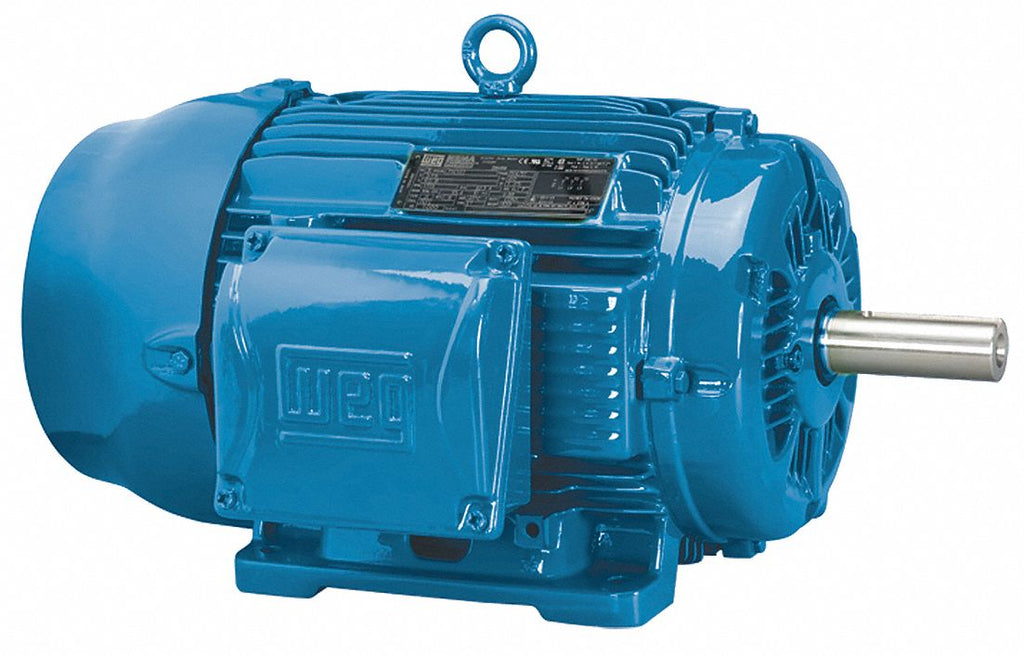

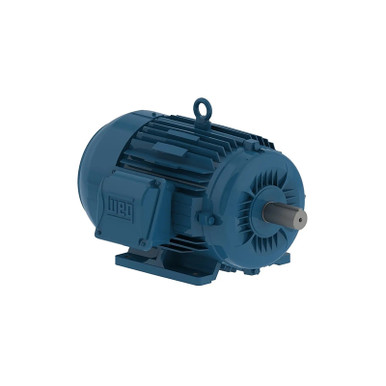

WEG 00718ET3E213T-W22

B073WMPD4P

WEG Mtr,3 Ph,7.5hp,1765,230/460,Eff 91.7 (00718ET3E213T-W22)

WEG Mtr,3 Ph,7.5hp,1765,230/460,Eff 91.7 (00718ET3E213T-W22)zoom

Attributes

Key Value
Amperage Rating19.9 to 18.4/9.18 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BrandWEG
CC NumberCC029A
ClassificationThree Phase
CompositionCast Iron
ConditionNew
ConstructionCast Iron
Current Stock36
Degree of ProtectionIP55
Description:MOTOR 7.5HP 4P 213/5T W.
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
EfficiencyLeft position
Efficiency %91.7 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight169.00
Family SeriesWEG Electric Motors
FL Amps9.00
FL Efficiency91.7
Frame215T, 213T, 213/5T
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps18.4/9.2
Full Load Amps @ 50Hz10.3, 10.5, 11.0
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower7-1/2 hp
HP7 1/2, 7.5
HP @ 50Hz7 1/2
Hz60
Ins. ClassF
Insulation ClassClass F
International ShippingNo
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number00718ET3E213T-W22
Length Less Shaft16 1/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00718ET3E213T-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:00718ET3E213T-W22
Model11723875
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTEFC, Totally Enclosed .
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFOOT, Rigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeFooted, Foot Mount
Mpn00718ET3E213T-W22
Nameplate RPM1,765, 1800
NEMA DesignB
NEMA Frame213T
Net Weight165 lbs
No. of Speeds1
Nominal Efficiency91.7 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating7.5 HP
Overall Length19.517, 19 1/2 in
Part Number00718ET3E213T-W22
Phase3, Three
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,800 RPM, 1800, 1765
RPM Range1,701-1,800
Service Factor1.25
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Shaft Size1-3/8 in Dia x 3-3/8 in.
SKUZO-G1481602
Special Features4-Pole, Direct On Line .
Speed1800 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsUL, CSA, CE, NOM, CE, C.
SubCategoryMotors/Ac Motors
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxWithout
UPC:7891327761247
Usable @ 200VNo
Usable @ 208VYes
Voltage230/460//380 V, 230/460.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight165 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00718ET3E213T-W22668.01In StockWEG165.0668.0 @ 1
AmazonTPB00BC8NRVI685.811In Stock2WEG685.81 @ 1
thumbzoomvfds.com00718ET3E213T-W22780.01In StockWEG780.0 @ 1
thumbzoommotorsandcontrol.com00718ET3E213T-W22789.531In StockWEG Electric169.0789.53 @ 1
thumbzoomWalker Industrial00718ET3E213T-W22816.751In Stock17WEG816.75 @ 1
kscdirect.comWEG 00718ET3E213T-W22836.321In StockWEG ELECTRIC CORP836.32 @ 1
thumbzoommidwestapplianceparts.com00718ET3E213T-W22-WG-P850.2111Weg850.21 @ 1
thumbzoomMRO Supply1312228894.431In StockWEG894.43 @ 1
thumbzoomDealers Electric00718ET3E213T-W22894.851In StockWeg169.0894.85 @ 1
thumbzoomZoroG1481602906.75135Weg154.0906.75 @ 1
thumbzoomindustrialrefrigerationparts.com00718ET3E213T-W22939.361In StockWEG939.36 @ 1
thumbzoomGalco00718ET3E213T-W22-WEG944.821In StockWEG Electric165.0944.82 @ 1
thumbzoomsimsupply.comZO-G14816021116.271In StockWeg1116.27 @ 1
Airline HydraulicsWEG 00718ET3E213T-W221122.681In StockWEG1122.68 @ 1
grainger.caWWG6AJC51196.425868461In StockWEG154.01196.42586846 @ 1
thumbzoomPurvis00718ET3E213T-W221208.81In StockWEG1208.8 @ 1
thumbzoomNational Supply NetworkB8731431381.591In StockWeg Electric Motors1381.59 @ 1
thumbzoomsustainablesupply.comC15664851490.091In StockWEG154.01490.09 @ 1
thumbzoomRaptor SuppliesAE7TVK1694.45010151In StockWEG1694.4501015 @ 1
