- mpn00718ET3E213T-W22
- brandname: WEG Electric Corporation
- manufacturername: WEG Electric Corporation

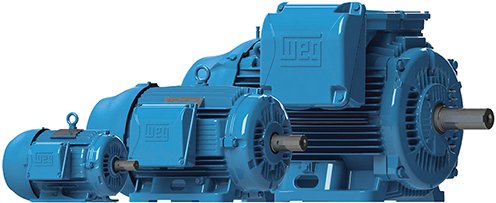

WEG Electric Corporation 00718ET3E213T-W22 - General Purpose Motor - 3 ph, 7-1/2 hp, 1800 rpm, 190/380//208-230/460 V, 213/5T Frame, TEFC Enclosure, 50/60 Hz, Foot Mount
- Binding: Misc.
- Manufacturer: WEG Electric Corporation
- Label: WEG Electric Corporation
Attributes
| Key | Value |
|---|
| Amperage Rating | 19.9 to 18.4/9.18 A |
| Application Type | General Purpose AC Moto. |
| Bearing Type | Ball |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Description: | MOTOR 7.5HP 4P 213/5T W. |
| Drive End Flange Type | Standard |
| duty / condition type: | Continuous Duty |
| Efficiency % | 91.7 % |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | Totally Enclosed Fan Co. |
| enclosure type: | TEFC (Totally Enclosed . |
| Estimated Weight | 169.00 |
| Family Series | WEG Electric Motors |
| FL Amps | 9.00 |
| FL Efficiency | 91.7 |
| Frame | 213T, 213/5T |
| frame material: | Cast Iron |
| frame size: | 213/5T |
| Frequency | 60 Hz |
| Frequency Rating | 60 Hz |
| frequency rating: | 50/60 Hz |
| full load current: | 9.00 A |
| full load efficiency: | 91.70 % |
| Gross Weight | 0 lbs |
| harmonization code: | 8501.52.4000 |
| Hertz | 60 |
| Horsepower | 7-1/2 hp |
| HP | 7.5 |
| Insulation Class | Class F |
| insulation class: | F |
| ip rating: | 55 |
| Item Number | 00718ET3E213T-W22 |
| Manufacturer | WEG Electric, WEG ELECT. |
| Manufacturer Part Number | 00718ET3E213T-W22 |
| Material | Cast Iron |
| MFG Part #: | 00718ET3E213T-W22 |
| motor horsepower: | 7.50 hp, 7-1/2 hp |
| motor phase: | 3 ph |
| motor supply voltage: | 190/380//208-230/460 V |
| Mounting | Foot Mount |
| Mounting Type | Footed, Foot Mount |
| mounting type: | Footed |
| NEMA Frame | 213T |
| Net Weight | 165 lbs |
| Nominal Voltage | 208 VAC |
| Number of Speeds | 1 |
| overall length (c-dimen. | 19.52 in |
| Part Number | 00718ET3E213T-W22 |
| Phase | 3 |
| Product Type | General Purpose |
| Rotation | CW/CCW |
| RPM | 1,800 RPM |
| Service Factor | 1.25 |
| service factor: | 1.25 |
| Shaft Size | 1-3/8 in Dia x 3-3/8 in. |
| Special Features | 4-Pole, Direct On Line . |
| Speed | 1800 rpm |
| Speed (RPM) | 1800 |
| standards met: | UL, CSA, CE |
| Supplier: | WEG ELECTRIC CORP |
| synchronous rpm: | 1800 rpm |
| UPC: | 7891327761247 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208 VAC |
| volts @ frequency: | 190 V @ 50 Hz; 380 V @ . |
| weight: | 169 lbs |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motorsandcontrol.com | 00718ET3E213T-W22 | 789.53 | 1 | In Stock | | WEG Electric | 169.0 | 789.53 @ 1 |
| kscdirect.com | WEG 00718ET3E213T-W22 | 836.32 | 1 | In Stock | | WEG ELECTRIC CORP | | 836.32 @ 1 |
 | motionindustries.com | 04516805 | 921.27 | 1 | In Stock | | WEG Electric Corporation | | 921.27 @ 1 |
 | Galco | 00718ET3E213T-W22-WEG | 944.82 | 1 | In Stock | | WEG Electric | 165.0 | 944.82 @ 1 |
