Linear Technology LTC3560ES6#TRMPBF

B00AZVCGU6

LTC3560ES6#TRMPBF

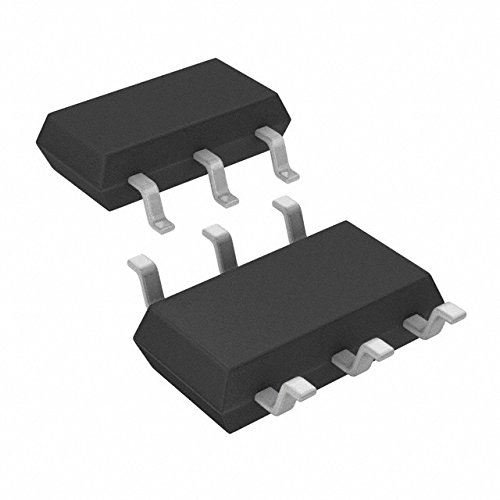

LTC3560ES6#TRMPBFzoom

Attributes

Key Value
Base Product NumberLTC3560
BrandBrand
CategoryIntegrated Circuits (IC.
Converter TypeStep Down
Current - Output800mA
DescriptionIC REG BUCK ADJ 800MA T.
Detailed DescriptionBuck Switching Regulato.
Digi-Key Part Number505-LTC3560ES6#TRMPBFTR.
Dimensions2.9 x 1.75 x 0.9mm
EfficiencyEfficiency
Frequency - Switching2.25MHz
FunctionStep-Down
Height0.9mm
Length2.9mm
Line Regulation0.4 %/V
Load Regulation0.5 %
ManufacturerAnalog Devices Inc.
Manufacturer Product Nu.LTC3560ES6#TRMPBF
Manufacturer Standard L.26 Weeks
Maximum Input Voltage5.5 V
Maximum Operating Tempe.+85 ?C
Maximum Output CurrentMaximum Output Current
Maximum Output VoltageMaximum Output Voltage
Maximum Switching Frequ.2.7 MHz
MfrAnalog Devices Inc.
Minimum Input VoltageMinimum Input Voltage
Minimum Operating Tempe.Minimum Operating Tempe.
Minimum Output Voltage0.8 V
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature-40?C ~ 85?C (TA)
Output ConfigurationPositive
Output TypeAdjustable
PackageTape & Reel (TR)
Package / CaseSOT-23-6 Thin, TSOT-23-6
Package TypeTSOT-23
Pin CountPin Count
Product StatusActive
Series-
StockStock
Supplier Device PackageTSOT-23-6
Switching RegulatorSwitching Regulator
Synchronous RectifierYes
TopologyBuck
Voltage - Input (Max)5.5V
Voltage - Input (Min)2.5V
Voltage - Output (Max)5.5V
Voltage - Output (Min/F.0.6V
Width1.75mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRS Delivers155-75183.55850025Analog Devices3.558 @ 500
thumbzoomNewark51AK68975.441164ANALOG DEVICES5.44 @ 25
thumbzoomDigi-Key16205235.537212986Analog Devices Inc.5.5372 @ 25
