- mpn52491
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

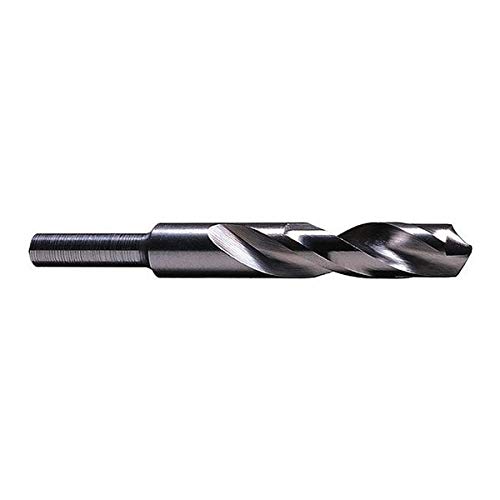

Drill Bit, Sz 1-27/64", HSS, Steam Oxide
- Brand: Chicago Latrobe
- PartNumber: 52491
- Model: 52491
- Manufacturer: CHICAGO-LATROBE
- Label: CHICAGO-LATROBE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy and Carbon St. |
| Brand | Chicago-Latrobe |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 4 |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 1.4219 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 1.421875, 1.4219" |
| Diameter (Fraction) | 1-27/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1 27/64 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0015 in |
| Drill Size - Decimal In. | 1.4219 in |
| Drill Size - Fraction | 1-27/64 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Black/Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Left/Right Hand | Right |
| List Number | 190F |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 5 11/16 in |
| Measurement System | Fractional Inch, Imperi. |
| Mpn | 52491 |
| Number of Flutes | 2 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Split |
| Point Type | Split, Radial |
| Primary Material Applic. | Cast Iron, Steel, Wood |
| Primary Material Applic. | K, O, P |
| Series | 190F |
| Shank Configuration | Reduced w/ 3 Flats |
| Shank Dia. | 1/2 in |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.8750" |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 1.3779" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 0.5, 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Round with Flats, Flat/. |
| Shank Type - Machining | Straight with Three Fla. |
| Silver & Deming Drill | Yes |
| SKU | ZO-G1156010, 52491 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 190F |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 1-27/64" |
| UPC | 6.62E+11, 662355524916 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Amazon | B0025QOSF0 | 96.89 | 1 | In Stock | | Chicago-Latrobe | | 96.89 @ 1 |
 | Zoro | G1156010 | 133.08 | 1 | In Stock | | Chicago-Latrobe | 1.3 | 133.08 @ 1 |
 | MRO Supply | 6131008 | 138.31 | 1 | In Stock | | Chicago-Latrobe | | 138.31 @ 1 |
 | Megadepot | 52491 | 148.4 | 1 | In Stock | | Chicago-Latrobe | | 148.4 @ 1 |
 | heavydutydepot.com | 52491 | 148.4 | 1 | In Stock | | Chicago-Latrobe | | 148.4 @ 1 |
 | simsupply.com | ZO-G1156010 | 149.2 | 1 | 4 | | Chicago-Latrobe | | 149.2 @ 1 |
 | usmegastore.com | 52491 | 156.3 | 1 | In Stock | | Chicago-Latrobe | | 156.3 @ 1 |
 | National Supply Network | 93076578 | 226.35 | 1 | In Stock | | Chicago-Latrobe | | 226.35 @ 1 |
 | Guardian | 93076578 | 299.35 | 1 | In Stock | | Chicago-Latrobe | | 299.35 @ 1 |
 | imsbolt.com | 52491 | 310.66 | 1 | In Stock | | CHICAGO-LATROBE | | 310.66 @ 1 |
