Cle-line C24351

mpnC24351
brandname: Cle-Line
manufacturername: Cle-Line

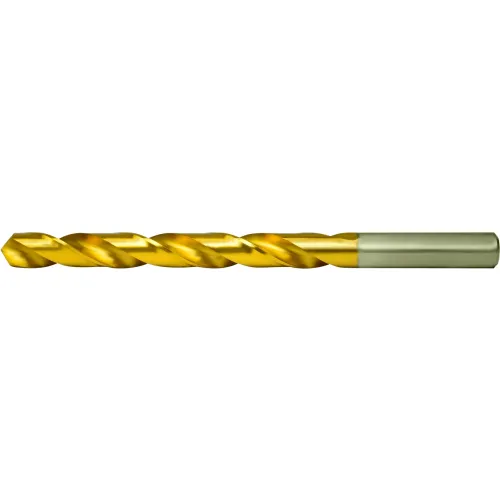

Cle-Line C24351 General Purpose Jobber Length Drill, High Speed Steel, TiN Finish, Straight Shank, 118-Degree Radial Point, 5.10 mm Drill Diameter (Pack of 12)

Cle-Line C24351 General Purpose Jobber Length Drill, High Speed Steel, TiN Finish, Straight Shank, 118-Degree Radial Point, 5.10 mm Drill Diameter (Pack of 12)

zoom

Brand: Cle-line
PartNumber: C24351
Model: C24351
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Coolant Fed	Non-Coolant Through
Country of Origin (subj.	United States
Cutting Direction	Right Hand
Decimal Equivalent	0.2008
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.2008"
Diameter (Metric)	5.10mm
Drill Bit Dimension Type	Metric
Drill Bit Finish	TiN
Drill Bit Grouping	Drill Bit
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	5.10 mm
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Jobber Length
Drill Point Length	0.0603mm
Drill Size System	Metric
Drill Style	Jobber Drill
Finish - Machining	TiN
Flute Length	52.00 mm, 2.0472"
Flute Length (Metric)	52.00mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Jobber Length Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	51/64 in
Measurement System	Metric
Number of Flutes	2
Overall Length	3.3858", 86.00 mm
Overall Length (Metric)	86.00mm
Point Angle	118?
Point Style	Radial
Primary Material Applic.	Aluminum, Cast Iron, St.
Primary Material Applic.	K, N, P
Series	1898-TN
Shank Configuration	Straight
Shank Dia.	5.1 mm
Shank Length	34 mm, 1.3386"
Shank Length (Metric)	34.00mm
Shank Size	0.2008"
Shank Size (Metric)	5.10mm
Shank Type - Machining	Straight
Spiral Direction	Right Hand
Standards	ASME B94.11M, DIN 338
Style	1898T
Surface Condition	TiN
Tool Size	5.1mm, 5.10mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Global Industrial	WBB2545639	3.2148	12	12		Cle-Line		3.2148 @ 12
	Megadepot	C24351	3.35	1	12		Cle-Line		3.35 @ 12
	heavydutydepot.com	C24351	3.35	30	12		Cle-Line		3.35 @ 30
	usmegastore.com	C24351	3.49	1	12		Cle-Line		3.49 @ 12
	MRO Supply	6125235	3.9	13	12		Cle-Line		3.9 @ 13
	Zoro	G4943377	3.99	12	12	10	Cle-Line	0.07	3.99 @ 12
	AmazonSC	B00J9G7JZK	47.7	1	12		Cle-line		47.7 @ 12
