CLEVELAND C08682

B00075EPHC

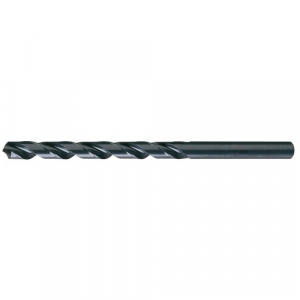

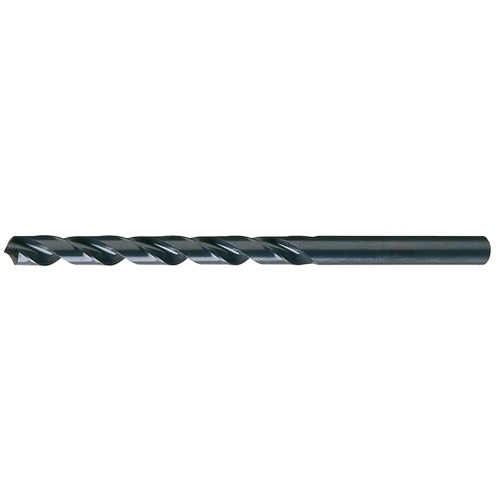

Cleveland C08682 High-Speed Steel General Purpose Taper Length Drill Bit, Steam Oxide Finish, Round Shank, Spiral Flute, 118 Degrees Radial Point, 24 Size (Pack of 10)

Cleveland C08682 High-Speed Steel General Purpose Taper Length Drill Bit, Steam Oxide Finish, Round Shank, Spiral Flute, 118 Degrees Radial Point, 24 Size (Pack of 10)zoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Carbon Ste.
ApplicationFor Drilling Carbon Ste.
BrandCLEVELAND
Catalog PageN/A
Coolant FedNon-Coolant Through
Coolant ThroughNo
Country of OriginUSA
Country of Origin (subj.United States
Cutting Depth3 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent0.1520
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Drill Bit Dimension TypeWire
Drill Bit FinishBlack Oxide
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle118 ?, 118 Degrees
Drill Bit Point TypeConventional Point
Drill Bit Size#24
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Drill Length ClassTaper Length
Drill Point Length0.0457 in
Drill Size - Decimal In.0.152 in
Drill Size - Wire#24
FinishSteam Oxide
Finish - MachiningBlack Oxide
Flute Length3 in
Flute TypeSpiral
GradeGeneral Purpose
Helix Angle21 Degrees /34 Degrees,.
ItemTaper Length Drill Bit
Item?439M11
List Number2510
MaterialHSS
Material - MachiningHigh Speed Steel
Material Grade - Machin.General Purpose
Maximum Drilling Depth3 in
Measurement SystemWire
Mfr. Model?C08682
Number of Flutes2
Overall Length5 3/8 in, 5-3/8 in
Point Angle118 deg
Point TypeRadial
Primary Material Applic.Cast Iron, Steel, Cast .
Primary Material Applic.K, P, K; P
Series2510
Shank Dia.9/64 in
Shank Length2-3/8 in, 2 3/8 in
Shank Size0.152 in
Shank TypeStraight
Shank Type - MachiningStraight
Sizes Included#24
Spiral DirectionRight Hand
StandardsASME B94.11M-1993
Style2510
Surface ConditionSteam Oxide
Tool Size#24
TypeGeneral Purpose
UNSPSC27112801

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply61099847.29510Cleveland7.29 @ 10
thumbzoomMegadepotC086828.52110Cleveland8.52 @ 10
thumbzoomusmegastore.comC086828.58110Cleveland8.58 @ 10
thumbzoomZoroG29951118.591010Cleveland0.028.59 @ 10
thumbzoomsustainablesupply.comC297495410.18110Cleveland0.0210.18 @ 10
thumbzoombscsource.comC0868212.59110Cleveland12.59 @ 10
Grainger439M1113.2211065CLEVELAND13.22 @ 10
thumbzoomNational Supply Network6372524614.479110Cleveland14.479 @ 10
thumbzoomGuardian6372524616.35110Cleveland16.35 @ 10
AmazonB00075EPHC64.38110Cleveland Twist Drill64.38 @ 10
