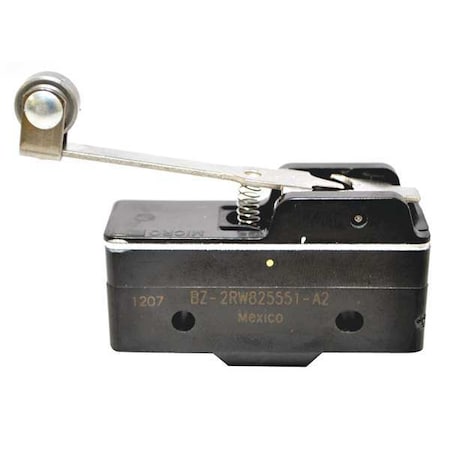

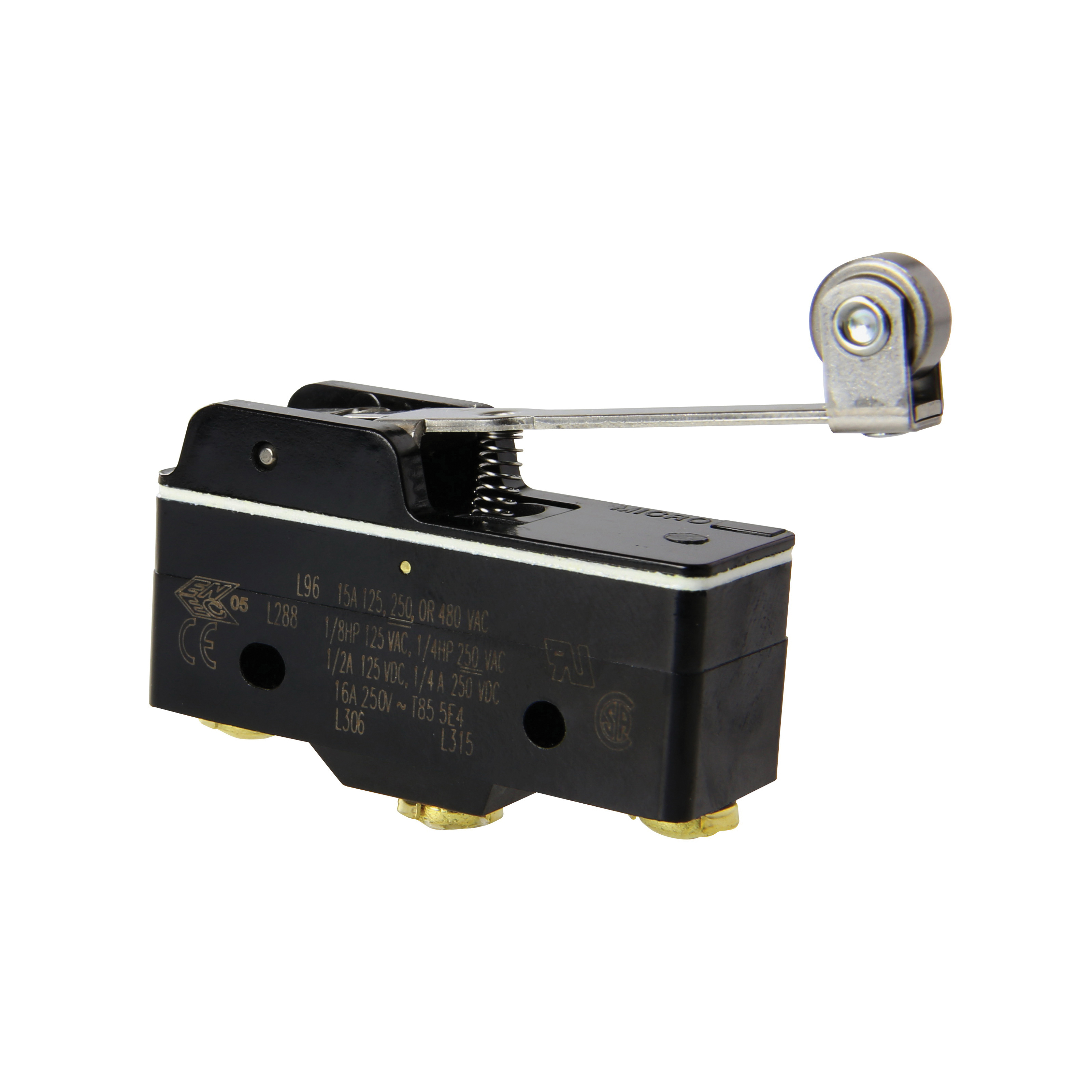

Honeywell BZ-2RW825551-A2

B00BR2YESE

Lg Basic Swch, 15A, SPDT, LNG Roller Lever

Lg Basic Swch, 15A, SPDT, LNG Roller Leverzoom

Attributes

Key Value
AC Contact Rating - Sna.15A @ 240V, 15 A @ 240V
AC contacts rating @R15A / 250V AC
ActionSnap
ActuatorLever/Roller
Actuator Length1.90"
Actuator TypeRoller Lever, Lever, Ro.
Actuator Type - Snap Ac.Lever, Long, Roller
Amperage Rating15
Base Product NumberBZ-2
Basic Actuator Type - S.Lever
BrandHoneywell
CategorySwitches
CircuitSPDT
Connection typeThreaded
Contact ConfigurationSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Contact Rating15 A at 125 VAC
Contacts configurationSPDT
Current Rating15a, 15 A
Current Rating (Amps)15A (AC), 500mA (DC)
Current Stock11
DC Contact Rating - Sna.15A @ 240V, 15 A @ 240V
Depth0.7"
Depth - Snap Action Swi.0.70 in, 0.7 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.040" (1.0mm), 0.015 in
Digi-Key Part Number480-4668-ND
Electrical Connection -.Screw
Electrical Life-
Electrical life100000 cycles
Family NameMICRO SWITCH B Series P.
Features-
Frequency Rating50/60
Head TypeRotary
Height1.0"
Height - Snap Action Sw.1 in, 1.00 in
Housing MaterialGeneral Purpose Phenolic
Ingress ProtectionIP64 - Dust Tight, Wate.
International ShippingNo
IP ratingIP64
ItemLarge Basic Snap Switch.
LeadsScrew
Length2.0"
Lever Actuator Length -.1.90 in, 1.9 in
ManufacturerHoneywell, Honeywell Se.
Manufacturer Product Nu.BZ-2RW825551-A2
Manufacturer seriesBZ
Manufacturer Standard L.38 Weeks
MaterialPhenolic
Max. Pretravel0.218 in
Mechanical durability20000000 cycles
Mechanical Life20,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting TypeChassis Mount, Surface .
MpnBZ-2RW825551-A2
Number of Circuits - Sn.1
Number of Poles1
Number of positions2
Operating Cycles20000000
Operating Force970mN, 99gf, 8 oz
Operating Position1.188" (30.2mm)
Operating Temp. Range-67 Degrees to 185 Deg.
Operating temperature-55...85?C
Operating Temperature-55?C ~ 85?C, -55 to 85
Over Travel0.06 in
Overtravel0.156" (3.96mm)
PackageBulk
Pretravel-
Product StatusActive
Release Force1.5 oz, 21gf, 1.50 oz
SeriesBZ/BA/BM/BE/6AS Series,.
Size2 in L x 0.7 in W x 1 i.
SKUZO-G4604162
Snap Action Switch TypeIndustrial Snap Action .
Stable positions number1
StandardsUL, CSA, ENEC, CSA, ENE.
SubCategoryElectrical
Switch FunctionOn-Mom
Switching methodON-(ON)
Terminal TypeScrew
TerminationScrew
Termination StyleScrew Terminal
TypePremium Standard
Type of switchmicroswitch SNAP ACTION
UPC078454917151
Voltage Rating125 ; 250 V, 125, 250VAC
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Watertight - Snap Actio.No
Width - Snap Action Swi.2.00 in, 2 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comBZ-2RW825551-A216.92221018Honeywell16.922 @ 2
thumbzoomDigi-Key274303126.33315200In StockHoneywell Sensing and Productivity Solutions26.33315 @ 200
TMEBZ-2RW825551-A226.4325In StockHONEYWELL26.43 @ 25
AmazonSCB00BR2YESE27.531In StockHoneywell27.53 @ 1
thumbzoomZoroG460416230.331In StockHoneywell0.0130.33 @ 1
RS Delivers691-721331.5841In StockHoneywell31.584 @ 1
thumbzoomsustainablesupply.comC117458632.191In StockHoneywell32.19 @ 1
grainger.caWWG24A08432.908044041In StockHONEYWELL0.00532.90804404 @ 1
thumbzoomCarlton Bates Company7845491715133.491In StockHONEYWELL33.49 @ 1
LCOMP7845491715133.49150Honeywell33.49 @ 1
Mouser785-BZ-2RW825551-A234.3148Honeywell34.3 @ 1
us.rs-online.com7024146339.211157Honeywell39.21 @ 1
thumbzoomsimsupply.comZO-G460416241.03111Honeywell41.03 @ 1
thumbzoomRadwellBZ-2RW825551-A248.01In StockHONEYWELL MICROSWITCH48.0 @ 1
thumbzoomRaptor SuppliesAB7TJD69.04105651In StockHONEYWELL69.0410565 @ 1
thumbzoomstandardelectricsupply.com23071995356.01In StockHoneywell5356.0 @ 1
thumbzoomkempstoncontrols.co.ukBZ-2RW825551-A27034.83561In StockHoneywell7034.8356 @ 1
