Johnson Controls A19ABC-12C

B07SZ456D7

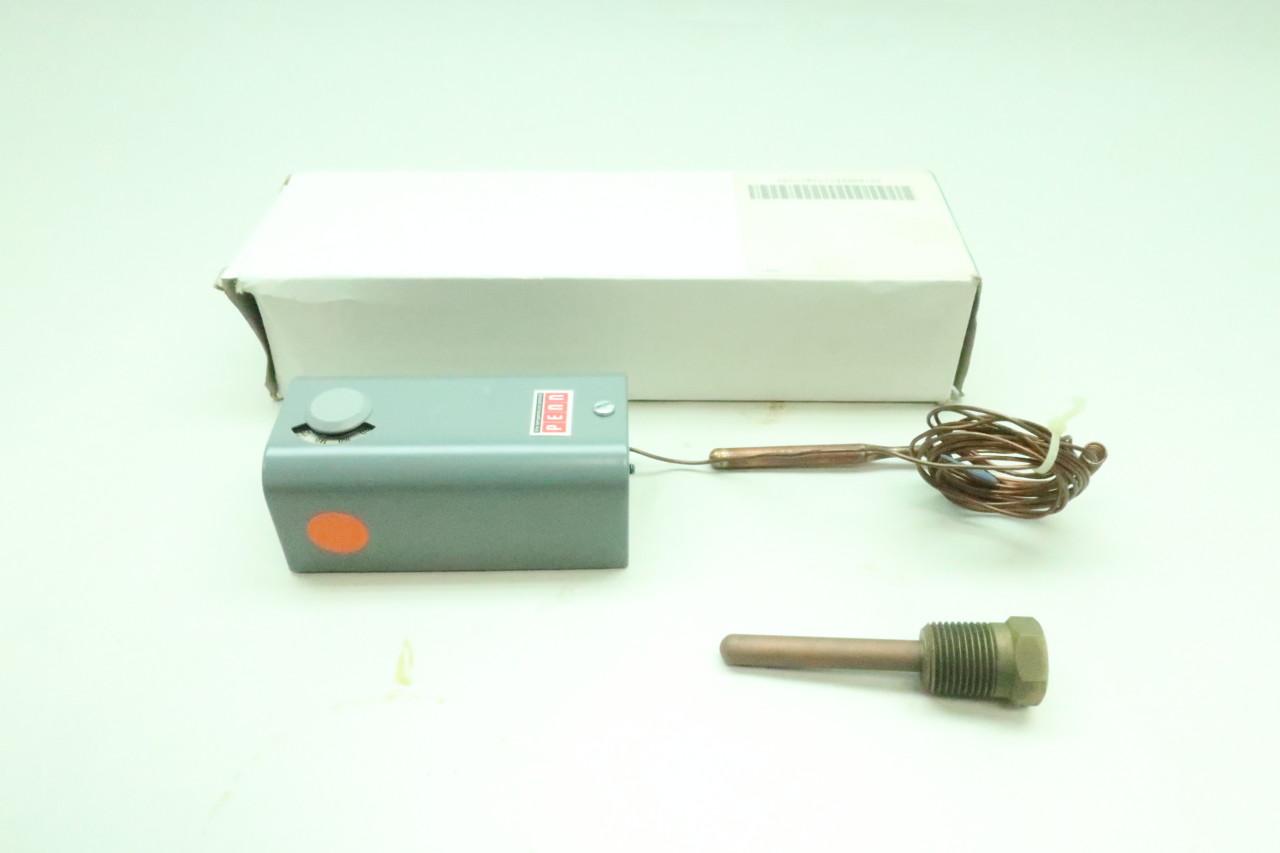

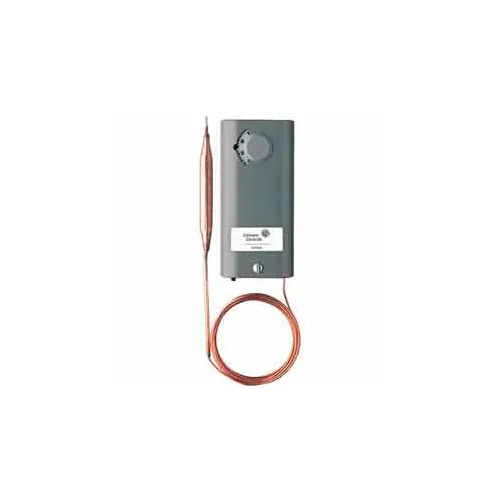

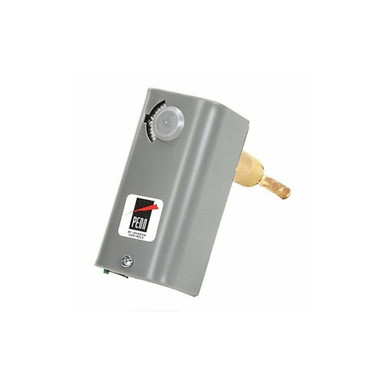

Johnson Controls A19ABC-12C Remote Bulb Temperature Control Diff 6-24 ADJ 8' Cap SpeedT NEMA 1 .290 X 2.33 Bulb

Johnson Controls A19ABC-12C Remote Bulb Temperature Control Diff 6-24 ADJ 8zoom

Attributes

Key Value
ApplicationHeating and Cooling
Best Sellers RankSee Top 100 in Tools & .
BrandJohnson Controls
Capillary Length8 ft, 8 ', 96 in
ColorGray
Compatible System TypeHot Water Heating Contr.
Contact Rating120V AC, 240V AC
Control TypeKnob
Current Stock97
Date First AvailableJune 5, 2010
Depth1 13/16 in
Differential6 Degrees to 24 Degrees.
Differential Temperature6-24 ?F
Differential TypeAdjustable
Electrical Connection T.Screw Terminals
Enclosure ColourGray
Enclosure MaterialSteel
Enclosure NEMA RatingNEMA 1
Enclosure TypeGalvanized/Steel
Family SeriesJohnson Controls Contro.
Full Load Amps @ 120V AC10 A
Full Load Amps @ 240V AC6 A
Gross Weight1.21 lbs
GTIN094723336232
Height4 3/8 in
IncludesRemote Sensing Bulb
International ShippingNo
ItemLine Volt Mechanical Ts.
Item model numberA19ABC-12C
Item NumberA19ABC-12C
Key FeaturesLiquid-Filled Element P.
Lead TimeExpected to ship in 1-2.
Locked Rotor Amps @ 120V60 A
ManufacturerJohnson Controls, Johns.
Manufacturer Part NumberA19ABC-12C
Max Temperature290 ?F
Maximum Control Tempera.240 Degrees F
Maximum Operating Tempe.140 Degrees F
Minimum Control Tempera.100 Degrees F
Mounting TypeSurface Mount
MpnA19ABC-12C
Net Weight1.21 lbs
Number of Cooling Stages1
Number of Heating Stages1
Number of Poles1
Number of Relay Inputs1
Number of Switches1
Output1 SPDT
Overall Depth1 13/16 in
Overall Height4 3/8 in
Overall Width2 1/8 in
Pilot Duty Rating125 A @ 24/600V AC
Product Dimensions3.3 x 2.5 x 10.5 inches.
Product SeriesA19 Hot Water Temperatu.
Product with faster shi.true
Remote Sensing Bulb Inc.Yes
Sensing Bulb Dia.3/8 in
Sensing Bulb Length2 3/8 in
Sensor Diameter3/8 in
Sensor Length2 3/8 in
Sensor LocationRemote
Sensor TypeWell
Setpoint Temp Range100-240 ?F
Shippingundefined (Fixed Shippi.
SKUZO-G5061987
StandardsCSA LR948/4813 02, UL E.
Switch ActionOpen/Close on Rise
Switch TypeSPDT
Temp. Sensitivity+/-4 Degrees F
Temperature Differential6 Degrees F to 24 Deg.
Temperature ScaleFahrenheit/Celsius
Temperature Sensitivity+/- 4 Degrees F
Thermostat Control Range100 Degrees to 240 Deg.
Thermostat ItemLine Voltage Mechanical.
UPC94723336232
Voltage24 to 277V AC, 120/240V.
Weight4.00
Well Connection Size1/2 in NPT
Width2 1/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD75571841.751In StockJOHNSON CONTROLS41.75 @ 1
AmazonTPB003U4DDWU103.291In Stock15Johnson Controls Inc103.29 @ 1
thumbzoomindustrialstores.comA19ABC-12C109.2414Johnson Controls109.24 @ 1
Grainger38Y057112.51660JOHNSON CONTROLS112.5 @ 1
thumbzoomcappusa.com471822116.8111Johnson Controls116.81 @ 1
alliedcontrols.comA19ABC-12C119.41In StockJohnson Controls119.4 @ 1
thumbzoomblackhawksupply.comA19ABC-12C120.641In StockJohnson Controls120.64 @ 1
thumbzoomZoroG5061987123.991118Johnson Controls1.2123.99 @ 1
thumbzoomRadwellA19ABC-12C124.9917JOHNSON CONTROLS124.99 @ 1
AmazonSCB07J6FRGVG126.971In StockCAI - JOHNSON CONTROLS126.97 @ 1
hvacdiscountstore.comJOH--A19ABC-12C127.381In StockJOHNSON127.38 @ 1
thumbzoomsustainablesupply.comC1135010130.081In StockJohnson Controls1.2130.08 @ 1
thumbzoomVoomi SupplyA19ABC-12C133.761In StockJohnson Controls133.76 @ 1
thumbzoomenergycontrol.comA19ABC-12C134.371In StockJOHNSON CONTROLS134.37 @ 1
thumbzoomhomeessentialsdirect.comA19ABC-12C135.011In StockJohnson Controls Inc135.01 @ 1
thumbzoomsimsupply.comZO-G5061987146.84197Johnson Controls146.84 @ 1
thumbzoomGalcoA19ABC-12C-JHSN153.121In StockJohnson Controls1.21153.12 @ 1
grainger.caJHCA19ABC12C159.20554611In StockJOHNSON CONTROLS1.2159.2055461 @ 1
thumbzoomwaterpumpsnow.comA19ABC-12C161.71In StockJohnson2.0161.7 @ 1
thumbzoomGlobal IndustrialWBB476070179.951In Stock15Johnson Controls179.95 @ 1
KeleA19ABC-12C183.561In StockJohnson Controls183.56 @ 1
thumbzoomNational Supply NetworkB476070185.441In StockJohnson Controls Inc185.44 @ 1
