Leeson 116610.00

B00EPKO16K

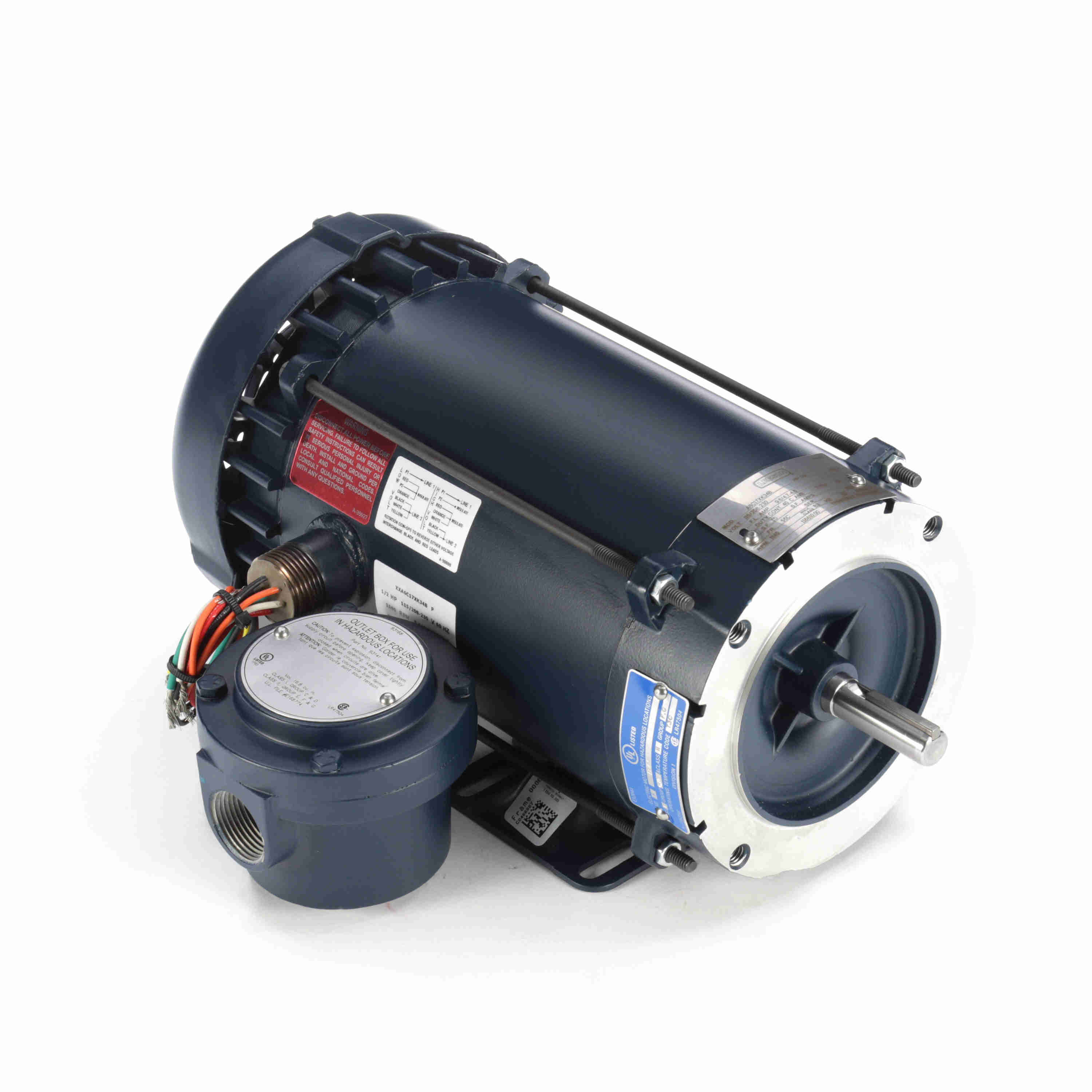

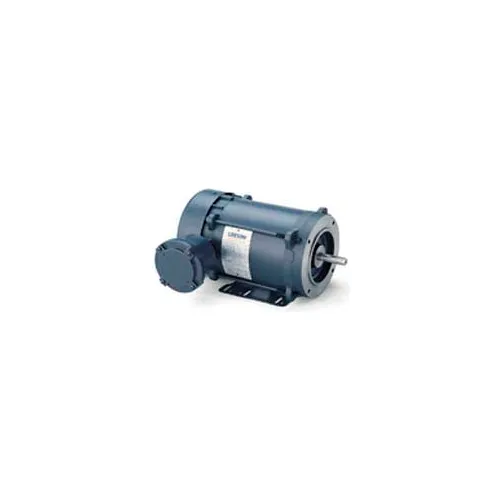

Leeson 116610.00 Rigid Base Explosion-Proof Motor, 1 Phase, 56C Frame, Rigid Mounting, 1/2HP, 1200 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 116610.00 Rigid Base Explosion-Proof Motor, 1 Phase, 56C Frame, Rigid Mounting, 1/2HP, 1200 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating9.6/4.7 to 4.8 A
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupA6C17XK34
CompositionSteel
ConstructionRolled Steel
Description:..1/2HP..1140RPM.56.EPF.
Dimensions14.94 in L x 8.2 in W x.
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Efficiency64
EnclosureTEFC, Explosion Proof, .
Enclosure TypeEPFC
Estimated Weight56.00
Explosion Proof RatingClass I (Group C,D) Cla.
Family SeriesLeeson Motors, Explosio.
FL Amps9.6/4.7-4.8
FL Efficiency64
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTED
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hazardous LocationDIV 1 EXP PROOF CL I GR.
Hertz60
Horsepower0.5 hp, 1/2 hp
HP0.50, 0.5
Hz60
Insulation ClassB, Class B
Item ConditionFACTORY NEW
Item Number116610.00
KW0.37
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number116610.00
MaterialRolled Steel
MFG Part #:116610.00
Model NumberA6C17XK34
MountingFoot Mount
mountingC-face w/ rigid base
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame56HC
Net Weight56 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4, 6
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length14.94 "
Overload ProtectionAutomatic
Part Number116610.00
Phase1, 1 ph
Product SeriesExplosion Proof
Product TypeExplosion Proof
RotationSelective CCW
RPM1,200 RPM, 1100 - 1200,.
Service Factor1
Shaft Diameter0.625, UL;CSA
Shaft Length1.88
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesCapacitor Start Motors,.
Speed1140 rpm
Speed (RPM)1140
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720341810
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com116610565.01In StockLEESON565.0 @ 1
AmazonTPB0773VKW4W752.031In Stock3Leeson Electric752.03 @ 1
thumbzoomMRO Supply2525963815.221In StockLeeson815.22 @ 1
thumbzoomGlobal IndustrialWBB5885441009.01In Stock17Leeson1009.0 @ 1
thumbzoomDealers Electric116610.001018.011In StockLeeson56.01018.01 @ 1
us.rs-online.com733965731096.911In StockLeeson1096.91 @ 1
thumbzoommotorsandcontrol.comLE-116610.001118.21128Leeson Electric56.01118.21 @ 1
thumbzoomGalco116610.00-LEES1126.551In StockLeeson56.01126.55 @ 1
kscdirect.comLEE 116610.001168.61In StockLEESON ELECTRIC CORPORATION1168.6 @ 1
thumbzoomWalker Industrial116610-001267.31In Stock10Leeson1267.3 @ 1
thumbzoompumpproducts.com116610.001516.891In StockLeeson1516.89 @ 1
thumbzoomRaptor SuppliesAJ2QTV1594.905391In StockLEESON1594.90539 @ 1
