Mid-West Instrument 140-SA-00-OO-30P

B00BJ6K8WE

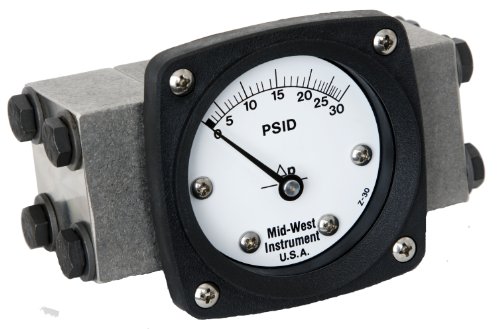

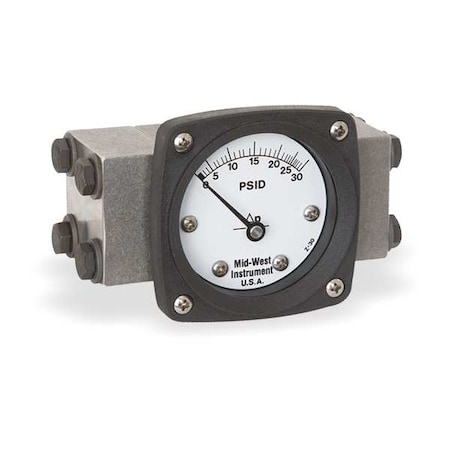

Mid-West 140-SA-00-OO-30P Differential Pressure Gauge with 316 Stainless Steel Body and 316 Stainless Steel Internals, Diaphragm Type, 3/2/3% Full Scale Accuracy, 2-1/2" Dial, 1/4" FNPT Back Connection, 0-30 psid Range, 3000 psig SWP

Mid-West 140-SA-00-OO-30P Differential Pressure Gauge with 316 Stainless Steel Body and 316 Stainless Steel Internals, Diaphragm Type, 3/2/3% Full Scale Accuracy, 2-1/2" Dial, 1/4" FNPT Back Connection, 0-30 psid Range, 3000 psig SWPzoom

Attributes

Key Value
(Hidden) max pressure d.3,000 psig x For High O.
(Hidden) Series x Accur.+/-3-2-3% x 140
Accuracy+/-3-2-3%
Accuracy GradeASME B40.1 Grade B
Adjustable Set PointsYes
Ambient Operating Tempe.-40 Degrees to 200 Deg.
ApplicationCompressors, Filtration.
Application - Max Press.For High Operating Pres.
Basic Gauge Case Materi.Metal
Basic Gauge Wetted PartsBuna-N
Bezel Gasket MaterialBuna-N
Blowout Safety BackNo
Body Material316 Stainless Steel
Bolt Circle Diameter3.5 in
Brand and SeriesMIDWEST INSTRUMENT 140
Case ConstructionGlass Reinforced
Case Depth0.78 in
Case Diameter3.37 in
Case ShapeRound
Connection LocationBack
Country of Origin (subj.United States
Dial ColorWhite
Dial MaterialEngineered Plastic
Diaphragm MaterialBuna-N
Differential Gauge Conn.1/4 in
Differential Gauge Conn.FNPT
Differential Pressure G.Differential Pressure G.
Differential Pressure R.0 to 30 psi
Differential Pressure R.psi
Differential Pressure R.0 to 30
Gauge Accuracy+/-3-2-3%
Gauge Case Material316 Stainless Steel
Gauge Connection Locati.Back
Gauge Nominal Dial Size2 1/2 in
Gauge Operating Temp. R.-40 Degrees to 200 Deg.
Gauge Primary Range Sma.1
Hazardous Location Rati.Not Rated
Housing Material316 Stainless Steel
IncludesInstructions
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
IP/NEMA RatingIP65, NEMA 4X
ItemDifferential Pressure G.
Manufacturer Warranty L.5 yr
Manufacturers Warranty .5 yr
Max Pressure ApplicationFor High Operating Pres.
Maximum Working Static .3,000 psig
Movement Material316 Stainless Steel
Movement TypeRotary
Nominal Dial Size2 1/2 in
Non-SparkingNo
Panel Mount Characteris.3 L Dia Holes on E Dia .
Panel-MountableYes
Pressure Gauge TypeDifferential Pressure G.
Pressure Range0 to 30 psid
Primary Scale Minor Gra.1
Process Connection1/4 in NPT Female
Process Connection Gend.Female
Process Connection Loca.Back
Process Connection Size1/4 in
Process Connection TypeNPT
Process Temperature Ran.-40 Degrees to 200 Deg.
Rated Total Pressure3000 PSI
Removable BezelNo
Repeatability1%
Scale TypePressure
Seal MaterialBuna-N
Sensor MaterialBuna-N
Sensor TypeDiaphragm
SeriesSeries 140
StandardsASME B1.20.1, ASME B40..

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0017595730.991In Stock26Midwest Instrument5.35730.99 @ 1
thumbzoomRaptor SuppliesAC9JJR964.719991In StockMIDWEST INSTRUMENTS964.71999 @ 1
