Molex 39-29-1248

mpn0039291248
brandname: Molex
manufacturername: Molex

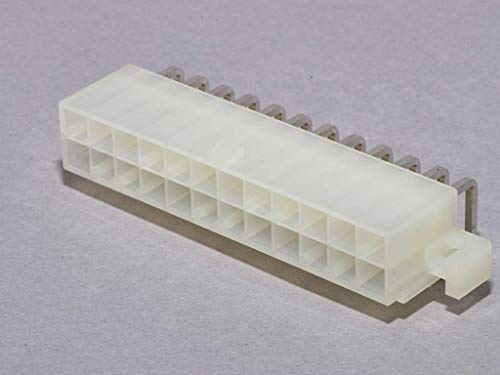

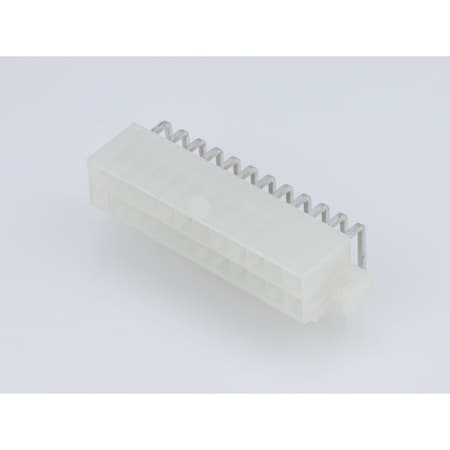

Headers & Wire Housings 24 CKT R/A HEADER (1 piece)

Brand: Molex
PartNumber: 39-29-1248
Model: 39-29-1248
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Part No.	538-39-29-1248
Applications	General Purpose, Indust.
Brand	Molex
Circuits (Loaded)	24
Circuits (maximum)	24
Color	Natural
Color - Resin	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Gender	Pin (Male)
Contact Length - Mating	-
Contact Length - Post	0.142" (3.60mm)
Contact Material	Brass
Contact Plating	Tin
Contact Shape	Square
Contact Type	Male Pin
CSA	LR19980
Current Rating	13 A
Current Rating (Amps)	-
Durability (mating cycl.	30
Duration at Max. Proces.	5
Fastening Type	Locking Ramp
Features	Mounting Flange
Flammability	94V-2
Housing Material	Nylon
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.378" (9.60mm)
Insulation Material	Polyamide (PA66), Nylon.
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Part No.	39-29-1248
Mated Stacking Heights	-
Material - Plating Mati.	Matte Tin
Material - Resin	Nylon
Material Flammability R.	UL94 V-2
Max. Cycles at Max. Pro.	1
Mfr	Molex
Mounting Angle	Right
Mounting Type	Through Hole, Right Ang.
Number of Positions	24
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Packaging	Bulk
Part # Aliases	0039291248 5569-24A1
Part Status	Active
PCB Locator	Yes
PCB Retention	Yes
PCB Thickness - Recomme.	1.78mm
Pitch	4.2 mm
Pitch - Mating	0.165" (4.20mm)
Pitch - Termination Int.	4.20mm
Plating min - Mating	2.540?m
Polarized to Mating Part	Yes
Polarized to PCB	Yes
Product Category	Headers & Wire Housings
Product Type	Header Assemblies
Row Spacing	5.5 mm
Row Spacing - Mating	0.165" (4.20mm)
Series	5569
Shrouded	Fully
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Temperature Range - Ope.	-40? to +105?C
Termination	Solder
Termination Style	Through Hole
Tradename	Mini-Fit Jr.
Type	Pin Header
UL	E29179
Voltage - Maximum	600V
Voltage Rating	-, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
NEP Electronics	39-29-1248	3.3676	25	50	Molex	3.3676 @ 50
RS Delivers	510-9821P	3.8424	1	170	Molex	3.8424 @ 50
TME	MX-39-29-1248	3.91	1	50	MOLEX	3.91 @ 50
Newark	98K9006	4.04	1	50	MOLEX	4.04 @ 50
Arrow	39-29-1248	5.005	1	290	Molex	2.345 @ 100
swatee.com	39-29-1248	6.36	1	464	Molex	6.36 @ 50
Radwell	39-29-1248	12.0	1	50	MOLEX	12.0 @ 50
Zoro	G600416109	129.75	1	50	Molex	129.75 @ 50
