NKK Switches UB26KKW01N

B00KSX5Q3U

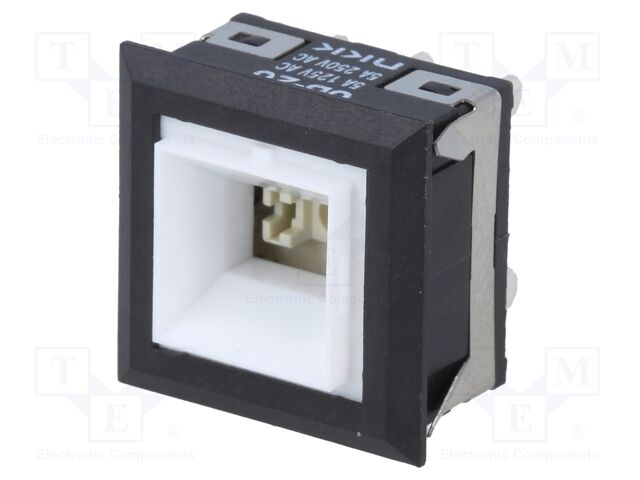

NKK Switches Part Number UB26KKW01N

NKK Switches Part Number UB26KKW01Nzoom

Attributes

Key Value
AC contacts rating @R5A / 125V AC
Actuator MarkingNo Marking
Actuator TypePlunger for Cap
Base Product NumberUB26KKW
Body dimensions16.2x16.2x10mm
CategorySwitches
CircuitDPDT
Color - Actuator/Cap-
Contacts configurationDPDT
Current Rating (Amps)5A (AC/DC)
Electrical Life10,000 Cycles
Electrical life10000 cycles
FeaturesStainless Steel
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
Leadsfor soldering
ManufacturerNKK SWITCHES
Manufacturer seriesUB
Max. contact resistance:50m?
Mechanical durability200000 cycles
Mechanical Life200,000 Cycles
MfrNKK SWITCHES
Min. insulation resista.200M?
Mounting TypePanel Mount, Snap-In
Number of positions2
Operating Temperature-20?C ~ 70?C
Operating temperature-25...50?C
PackageBulk
Panel Cutout DimensionsSquare - 16.20mm x 16.2.
Product StatusActive
SeriesUB
Stable positions number2
Switch FunctionON-ON
Switching methodON-ON
Termination StyleSolder Lug
TypeStandard
Type of switchpush-button
Voltage Rating - AC125 V
Voltage Rating - DC30 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEUB26KKW01N10.56143NKK SWITCHES10.56 @ 1
RS Delivers181-718611.281In StockNKK Switches11.28 @ 1
Digi-Key210704913.441In StockNKK Switches13.44 @ 1
Newark11X509316.241In StockNKK SWITCHES16.24 @ 1
