NTN ARP3/4

mpnARP-3/4
brandname: NTN Bearing
manufacturername: NTN Bearing

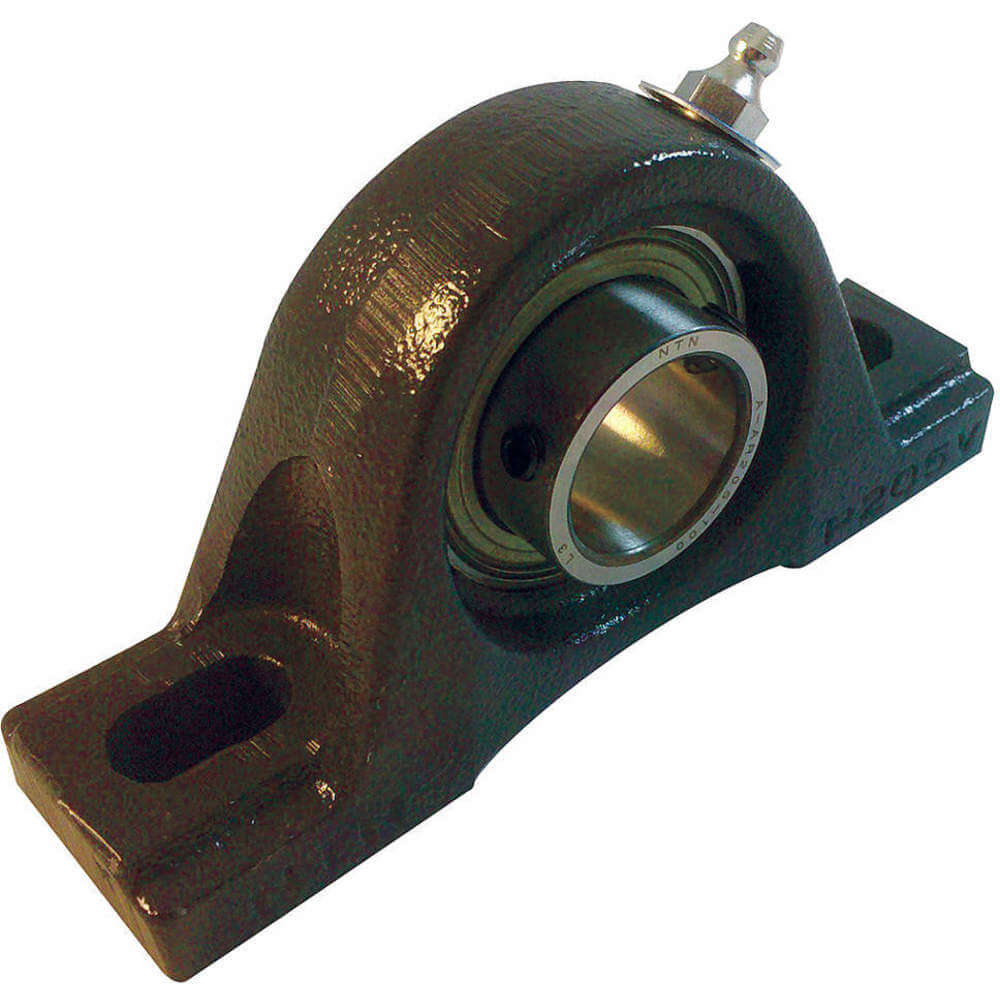

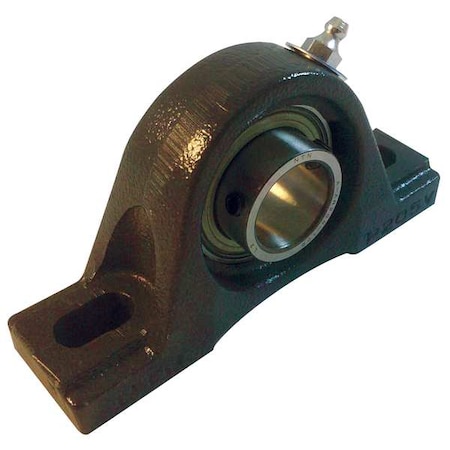

Pillow Block Bearing, Ball, 3/4" Bore

Brand: NTN
PartNumber: ARP3/4
Model: ARP-3/4
PackageQuantity: 1
Binding: Toy
Manufacturer: NTN
Label: NTN

Attributes

Key	Value
Actual Bolt Center to C.	3.8 Inch \| 96Millimeter
Base Height	0.563 in
Base to Center Height	1.313 Inch \| 33.35 Mill.
Base Width	1.5 in
Bearing Housing Materia.	Cast Iron
Bearing Insert Material	52100 Chrome Steel
Bearing Insert Type	Ball
Bolt Hole Center-to-Cen.	3 25/32 in
Bolt Size	3/8 in
Bolt Spacing Maximum	0 Inch \| 0Millimeter
Bolt Spacing Minimum	0 Inch \| 0Millimeter
Bore	0.75 Inch \| 19.05 Milli.
Bore Dia.	3/4 in
Bore Diameter	3/4 in
Brand	NTN
Category	Pillow Block Bearings
Category - BDI	Pillow Block
Center Height	1 19/64 in
Current Stock	22
Dynamic Load Capacity	2,890 lb
EAN	4547359018837
Expansion / Non-expansi.	Non-expansion
Finish	Painted
Global Part Number GPN	514879
Harmonized Tariff Code	8483.20.40.40
Housing Configuration	1 Piece Solid
Housing Material	Cast Iron
Housing Style	2 Bolt Pillow Block
Inch - Metric	Inch
Inner Ring Width	1.003 in
Insert Part Number	A-AR204-012D1
International Shipping	No
Keyword String	Pillow Block
Length Thru Bore	1.004 Inch \| 25.5 Milli.
Long Description	2 Bolt Pillow Block; 3/.
Manufacturer Item Number	ARP-3/4
Manufacturer Name	NTN
Minimum Buy Quantity	N/A
Mount Hole Center-to-Ce.	3 49/64 in
Mount Hole Size	0.437 in x 0.78 in
Mounting Bolt Size	M10
Mounting Bolts	3/8 Inch
Mounting Method	Set Screw
Mounting Surface to Sha.	1 5/16 in
Mpn	ARP-3/4
Nominal Bolt Center to .	3.8 Inch \| 97 Millimeter
Noun	Bearing
Number of Bolts	2
Number of Mounting Holes	2
Other Features	Single Row \| Narrow Inn.
Overall Height	2 9/16 in
Overall Length	5 in
Overall Width	1 1/2 in
price	$ 39.73 / each
Product Group - BDI	M06110
Relubricatable	Yes
Rolling Element	Ball Bearing
Seals	Single Lip Land Riding
Series	Light Duty
Shaft Locking Type	Set Screws
SKU	ZO-G2463991
SubCategory	Power Transmission
Temp. Range	-20 Degrees to 250 Deg.
title	ARP-3/4
UNSPSC	31171511
Weight / kgm	0.065
Weight / Kilogram	0.065
Weight / LBS	0.145

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Lily Bearing	ARP-3/4	33.77	1	In Stock		NTN	0.143	33.77 @ 1
Zoro	G2463991	43.79	1	26		Ntn	1.74	43.79 @ 1
Grainger	5ZMX2	47.8	1	81	0	NTN		47.8 @ 1
BDI Express	1214624	48.70922729	1	In Stock		NTN	0.143	48.70922729 @ 1
simsupply.com	ZO-G2463991	57.8	1	22		Ntn		57.8 @ 1
sustainablesupply.com	C1696830	73.29	1	In Stock		NTN	1.74	73.29 @ 1
motionindustries.com	01758823	74.21	1	In Stock		NTN		74.21 @ 1
Raptor Supplies	AE7NCJ	120.9084435	1	In Stock		NTN		120.9084435 @ 1
