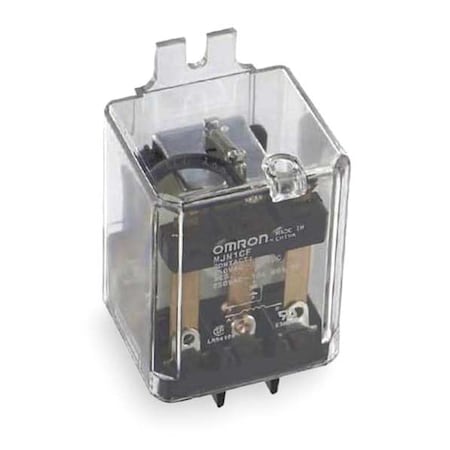

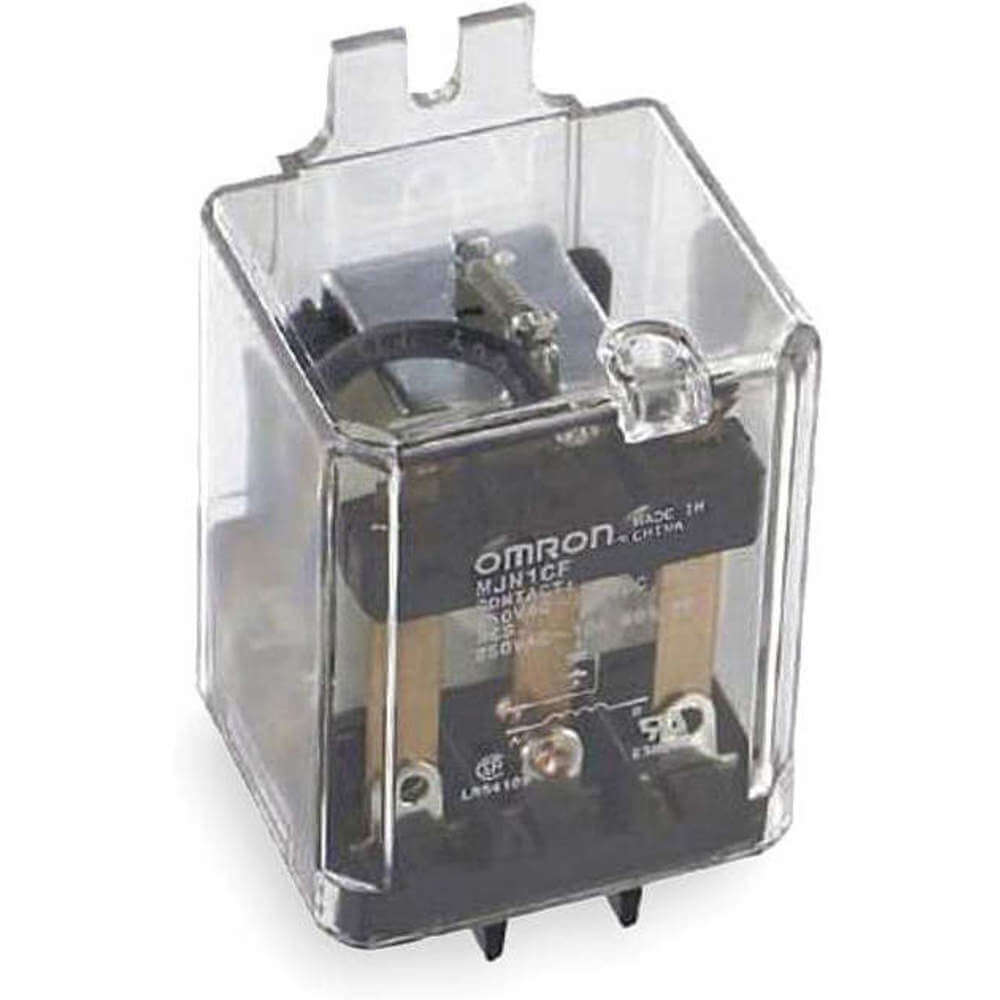

MJN1CF-AC24

mpnMJN1CF-AC24
brandname: OMRON
manufacturername: OMRON

General Purpose Relays GENERAL PURPOSE RELAY

General Purpose Relays GENERAL PURPOSE RELAY

zoom

PartNumber: MJN1CF-AC24
PackageQuantity: 1
Manufacturer: Omron Automation and Safety
Label: Omron Automation and Safety

Attributes

Key	Value
AC Contact Rating - Rel.	10A @ 240V
Base Product Number	MJN-1CF
Body Depth	1.4 in
Body Depth - Relay	1.4 in
Body Height	1.9 in
Body Height - Relay	1.9 in
Body Width	1.52 in
Body Width - Relay	1.53 in
carry current	10 a
carry voltage	250 v
Category	Relays
Coil Current	70.8 mA
Coil Insulation	-
Coil Resistance	75 Ohms
Coil Type	Non Latching
Coil Voltage	24VAC
coil voltage ac	24 v
Coil Volts	24V AC
Contact Form	SPDT (1 Form C)
Contact Form - Relay	SPDT
Contact Material	Silver Alloy
Contact Rating	10A @ 240VAC/28VDC
Contact Rating (Current)	10 a
DC Contact Rating - Rel.	10A @ 28V
Description	RELAY GEN PURPOSE SPDT .
Detailed Description	General Purpose Relay S.
Digi-Key Part Number	MJN-1CF-AC24-ND
Features	-
HP @ 120V	1/3 hp
Item	Flange Mount Relay
Item - Relay	Flange Mount Relay
item per pack	1
Manufacturer	Omron Automation and Sa.
Manufacturer Product Nu.	MJN-1CF-AC24
Mfr	Omron Automation and Sa.
Mounting	Side
Mounting - Relay	Side Flange
Mounting Type	Chassis Mount
Must Operate Voltage	20.4 VAC
Must Release Voltage	-
Number of Pins - Relay	5
Operate Time	20 ms
Operating Temperature	-45?C ~ 60?C
Overall Depth	2.9 in
Overall Height - Relay	2.9 in
Package	Bulk
package	box
Pins	5
Power Consumption - Rel.	1.7 VA
Primary Type	Power Relays
Product Status	Active
Relay Type	Electromechanical, Gene.
Release Time	10 ms
Seal Rating	-
Series	MJN
Standards	CSA Certified, UL Listed
Status Indicator	None
switch function	SPDT
Switching Voltage	600VAC, 28VDC - Max
Termination Style	Quick Connect - 0.187" .

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0364953	15.99	1	In Stock		Omron	0.47	15.99 @ 1
	Tedss	2034000094	25.0	1	In Stock		OMRON		25.0 @ 1
	us.rs-online.com	71275428	29.96	1	In Stock		Omron Automation		29.96 @ 1
	Digi-Key	1813929	30.71	1	In Stock		Omron Automation and Safety		30.71 @ 1
	sustainablesupply.com	C1168680	31.85	1	In Stock		Omron	0.47	31.85 @ 1
	Newark	89C7174	33.9	1	3		OMRON INDUSTRIAL AUTOMATION		33.9 @ 1
	Raptor Supplies	AB4HWR	44.649306	1	In Stock		OMRON		44.649306 @ 1
