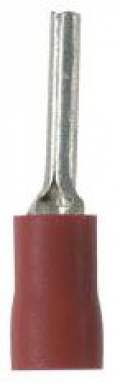

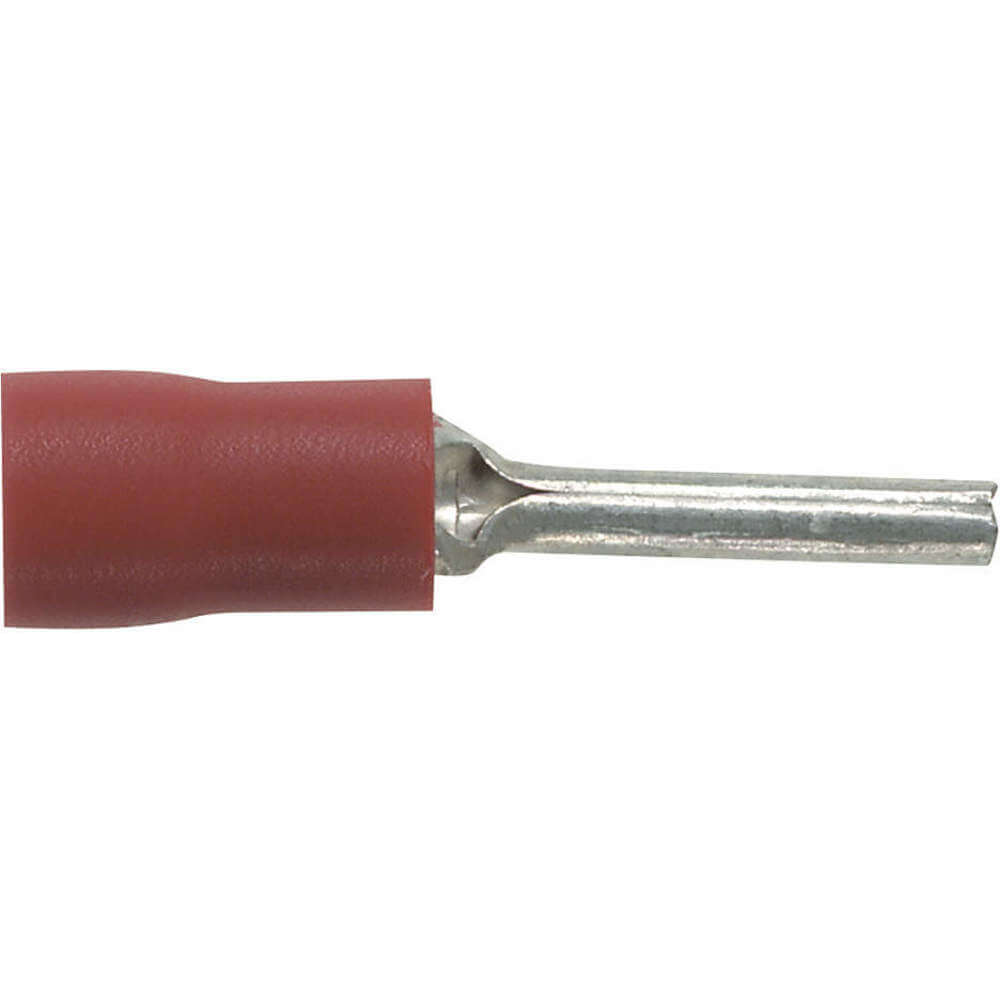

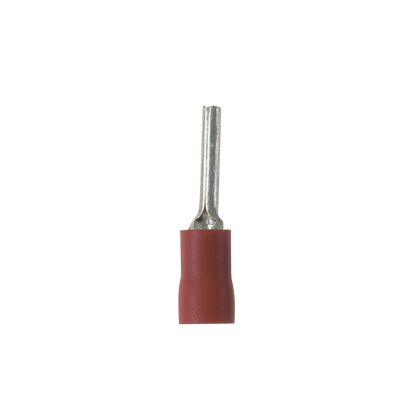

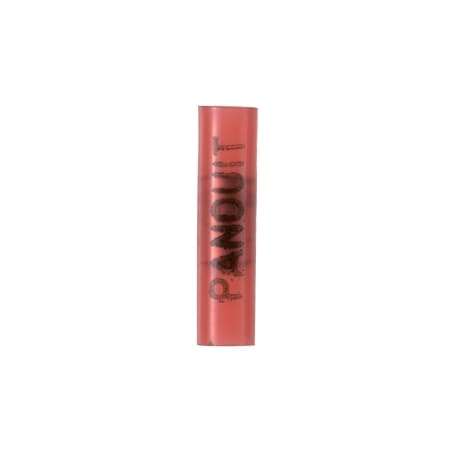

Panduit PV18-P47-CY Pin Terminal, Vinyl Insulated, Funnel Entry, 22 - 18 AWG Wire Range, Red, 0.15" Max Insulation, 0.07" Pin Width, 0.49" Pin Length, 0.97" Overall Length (Pack of 100)
- Brand: Panduit
- PartNumber: PV18-P47-CY
- Model: PV18-P47-CY
- Color: Red
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 18 |
| Alternate Parts | PV18-P47 |
| Approvals | UL |
| ARRA Compliant | Y |
| AWG Range | 22 - 18 AWG |
| Barrel Type | Brazed |
| Base Material | Copper |
| Base Product Number | PV18 |
| Brand | Pan-Term? |
| Buy American Compliant | Y |
| California Pro65 Cancer | No |
| Category | Connectors, Interconnec. |
| Color | Red |
| Color Code | Red |
| Color Family | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Unknown |
| Country of Origin 2Digit | MX |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
| EAN | 00074983694822 |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam |
| Finish | Tin-Plated |
| Finish/Coating | Tin-Plated |
| Flammability Rating | UL94-V0 |
| For Use With | CT-100, CT-1550, CT-155. |
| Gross Weight | 0.21 lbs |
| GTIN Carton | 50074983694827 |
| GTIN Package | 00074983694822 |
| Hazardous Material Flag | N |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Diameter | 0.150" (3.81mm) |
| Insulation Material | Vinyl |
| Item Number | PV18-P47-CY |
| Lead Content Indicator | N |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length | 0.490 in |
| Length - Overall | 0.970" (24.64mm) |
| Length - Pin | 0.490" (12.45mm) |
| Length - Termination | 0.480" (12.19mm) |
| Manufacturer | Panduit |
| Manufacturer Part Number | PV18-P47-CY |
| Manufacturer Standard L. | 4 Weeks |
| Material | Copper |
| Material - Insulation | Vinyl |
| Max Temp | 221 ?F |
| Maximum Copper Conducto. | #18 |
| Maximum Copper Conducto. | #18 |
| Maximum Metric Conducto. | 1 |
| Maximum Operating Tempe. | 105 |
| Maximum Operating Tempe. | 221 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation. | 0.15 |
| Maximum Wire Insulation. | 3.8 |
| Maximum Wire Size (AWG) | 22 - 18 AWG |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Order Qty | 100 |
| Min. Order UOM | Piece |
| Minimum Copper Conducto. | #22 |
| Minimum Copper Conducto. | #22 |
| Minimum Metric Conducto. | 0.5 |
| Net Weight | 0 lbs |
| Note | PV18-P47-CY replaces PV. |
| Overall Length (In.) | 0.97 |
| Overall Length (mm) | 24.6 |
| Package | Bulk |
| Package Quantity | 100 |
| Packaging | 100, Bulk Pack |
| Packaging Type | Bottle |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Pin Diameter | Circular - 0.070" (1.78. |
| Pin Diameter (In.) | 0.07 |
| Pin Diameter (mm) | 1.8 |
| Pin Length (In.) | 0.49 |
| Pin Length (mm) | 12.4 |
| Plating Material | Tin |
| Product Segment | IEI |
| Product Series | Pan-Term Disconnects |
| Product Status | Active |
| Product Type | Pin Terminal |
| Rated Voltage | 600V |
| REACH Status | False |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant, Yes |
| Series | Pan-Term?, Pan-Term |
| Standard Carton Volume . | 0.0368 |
| Standard Carton Weight . | 2.1000 |
| Standard Package | 100 |
| Standard Package Volume. | 0.0037 |
| Standard Package Weight. | 0.2100 |
| Standards Met | UL486A/B |
| Std Carton Height In | 3.65 |
| Std Carton Height MM | 92.71 |
| Std Carton Length In | 9.45 |
| Std Carton Length MM | 240.03 |
| Std Carton Width In | 4.15 |
| Std Carton Width MM | 105.41 |
| Std Ctn Qty | 1000 |
| Std Package Height In | 1.75 |
| Std Package Height MM | 44.45 |
| Std Package Length In | 3.6 |
| Std Package Length MM | 91.44 |
| Std Package Width In | 1.8 |
| Std Package Width MM | 45.72 |
| Std. Pkg. Qty. | 100 |
| Std. Pkg. UOM | Piece |
| Sub Brand | Pan-Term? |
| Terminal Material | Copper |
| Terminal Type | Pin |
| Termination | Crimp |
| UNSPSC | 39121409 |
| UOM EA PK | PK |
| UPC | 07498369482 |
| Use With | CT-100, CT-1550, CT-155. |
| Volts | 600 V |
| Volts AC | 600 |
| Wire Gauge | 18-22 AWG (1.5~0.5mm, 1. |
| Wire Size | 22-18 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Strip Length | 0.313 " |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
