PIC Gauges 101D-158F

B00FBIVUI2

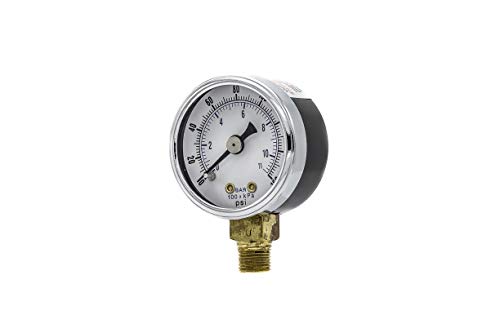

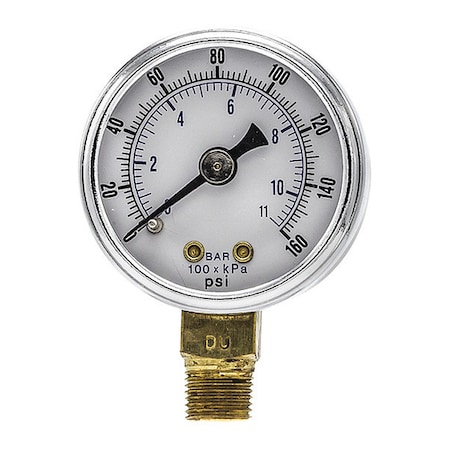

PIC Gauge 101D-158F 1.5" Dial, 0/160 psi Range, 1/8" Male NPT Connection Size, Bottom Mount Dry Pressure Gauge with a Black Steel Case, Brass Internals, Chrome Bezel, and Plastic Lens

PIC Gauge 101D-158F 1.5" Dial, 0/160 psi Range, 1/8" Male NPT Connection Size, Bottom Mount Dry Pressure Gauge with a Black Steel Case, Brass Internals, Chrome Bezel, and Plastic Lenszoom

Attributes

Key Value
Accuracy3-2-3% of Span, ASME B4.
Accuracy GradeASME B40.100 Grade B
Accuracy ScaleMid-Scale
Ambient Operating Tempe.-50 Degrees to 160 Deg.
Ambient Temp-50? F to 160? F
Ambient Temperature-50? F to 160? F
Available OptionsCertificate of Accuracy.
BezelChrome Plated Steel, Fi.
Bezel MaterialChrome Plated Steel
Bezel Mounting TypeFixed
Blowout Safety BackNo
BrandPIC Gauges
Calibration Certificate.No
CaseBlack steel, dry non-fi.
Case ColorBlack
Case Depth0.93 in
Case Diameter1.64 in
Case Material - GaugeStainless Steel
Case TypeBlack Steel
Cleaned for Oxygen Serv.No
ConditionNew
Connection1/8" NPT, Lower mount (.
Connection LocationLower
Connection Size1/8 in MNPT
Country of Origin (subj.China
Current Stock22
Dial1-1/2" (40 mm)
Dial ColorWhite
Dial Face MaterialAluminum
Dial Size1-1/2"
Dry Dampening FeatureNone
Field FillableNo
Fill TypeDry (Non-Fillable)
Freeze Resistant Moveme.No
Gauge Accuracy+/-3-2-3%
Gauge Accuracy GradeGrade B - Commercial
Gauge Case ColorBlack
Gauge Case LiquidNone
Gauge Case MaterialStainless Steel
Gauge Connection Locati.Bottom
Gauge Connection Size1/8 in
Gauge Connection TypeMNPT
Gauge Lens MaterialPlastic
Gauge Nominal Dial Size1 1/2 in
Gauge Primary Range Num.20
Gauge Primary Range Sma.20
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 160
Gauge Secondary Range U.Bar
Gauge Secondary Range V.0 to 11
Gauge Sensor MaterialBrass
Gauge Socket MaterialCopper Alloy
Gauge Wetted PartsCopper
Graduations20 psi
Hazardous Location Rati.Not Rated
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
International ShippingNo
IP/NEMA RatingNot Rated
ItemIndustrial Pressure Gau.
Lead TimeExpected to ship in 1-2.
LensPlastic
Lens MaterialPlastic
Lens Material - GaugePlastic
Lens TypePlastic Lens
Liquid FilledNo
Liquid-Filled CaseNo
ManufacturerPIC Gauges
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Maximum Pressure Range160 psi
Minimum Pressure Range0 psi
Mount TypeLower Mount
Mpn101D-158F
Nominal Dial Size1 1/2 in
Non-SparkingNo
Operating Temp. Range-50 Degrees to 160 Deg.
Panel-MountableNo
PointerBlack Aluminum
Pointer ColorBlack
Pointer MaterialAluminum
Pressure Gauge TypeGeneral Purpose Dial Pr.
Pressure Range0-160 psi
Pressure Range TypePressure
Primary Graduations20
Primary Pressure Range0 to 160
Primary Scale Minor Gra.20
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/8 in
Process Connection TypeNPT
Product Series100 series
Prop 65WARNING: Cancer and Rep.
Range0/160 psi, 0 to 160 psi
Removable BezelNo
ScaleStandard: psi/BAR (x 10.
Scale TypeDual
Secondary Pressure Range0 to 11
Secondary Range0 to 11 bar
Secondary Scale UnitsBar
Sensor MaterialCopper Alloy
Series100
SKUZO-G7286835
Socket MaterialCopper Alloy
SubCategoryTest Instruments
Vibration ResistanceNone
Weight2.000000
Wetted PartsBrass Internals, Copper.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG72868355.293In StockPic Gauges0.285.29 @ 3
thumbzoomindustrialrefrigerationparts.com101D-158F9.441In StockPIC Gauges2.09.44 @ 1
thumbzoomsimsupply.comZO-G728683510.81122Pic Gauges10.81 @ 1
thumbzoomusmegastore.com101D-158F14.761In StockPIC Gauges14.76 @ 1
