Schneider Electric TM3AM6G

mpnTM3AM6G
brandname: Schneider Electric
manufacturername: Schneider Electric

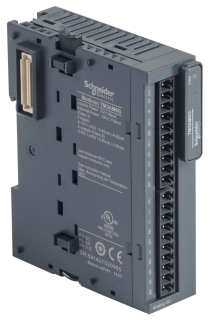

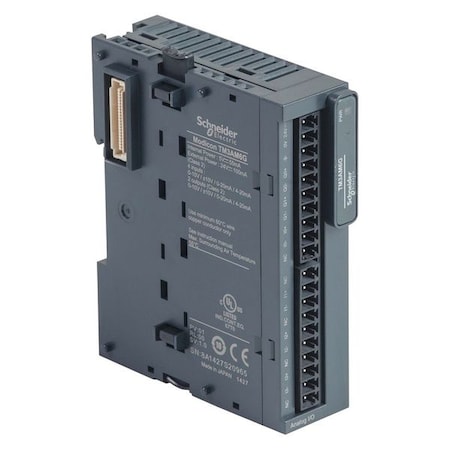

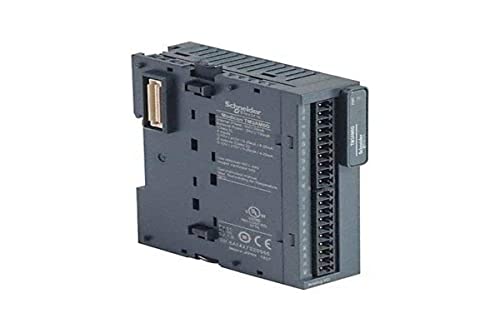

Ext Module TM3 2 outputs Terminal Block

Ext Module TM3 2 outputs Terminal Block

zoom

Brand: Schneider Electric
PartNumber: TM3AM6G
Model: TM3AM6G
PackageQuantity: 1
Binding: Misc.
Manufacturer: SCHNEIDER ELECTRIC
Label: SCHNEIDER ELECTRIC

Attributes

Key	Value
Amperage Rating	0 to 20/4 to 20, 0 to 2.
Application	MODICON TM3
Brand	Schneider Electric
Catalog Number	TM3AM6G
Connection Cables	10 X 1.5 MMA? REMOVABLE.
Country of Origin	Japan, JP - Japan
Country of Origin (subj.	Japan
Depth	70 mm
Dimensions	90 x 70 x 23.6 mm, 70 m.
Display	for PWR 1 LED (green)
ECCN	EAR99
Enclosure	IP20
Family Name	Modicon Controllers Fam.
Features	Plate or panel with fix.
For Use With	Modicon Mfr. No.M221 PL.
GTIN	00785901334149, 0360648.
Height	3.54, 90 mm
Includes	Terminal Block
Input Current	0 to 20 mA
Input Signal	current 4...20 mA; curr.
Input Type	Current, Voltage
IP Rating	IP20
Item	Extension Module
Item Type	Input/output analog mod.
Length	2.76
Length UOM	Inch
Made in USA	No
Manufacturer	Schneider Electric
Mounting	Rail Plate
Mounting Type	Panel Mount
Number of Channels	6
Number of Inputs	4
Number of inputs	4
Number of outputs	2
Number of Outputs	2
Operating Temperature	-10...55 A Degrees C (H.
Output Signal	Current 4...20 mA;curre.
Output Type	Transistor PNP
PLC Input Voltage	24V DC
Power Required	24V DC
Power Supply	45 mA 5 V DC via bus co.
Primary Type	I/O Module
Product Type	Extension Module
Resolution	12, 12 bit
Series	Modicon TM3 Series, TM3
Signal Range	0 to 20/4 to 20, 0 to 2.
Special Features	10 x 1.5 mm? removable .
Standard	CE
Sub Brand	Modicon M221;Modicon M2.
Supply Voltage	24 VDC
Temperature Rating (Deg.	-10 to 55 deg C Horizon.
Terminal Type	Spring
Type	Analog
UNSPSC	32151705
UPC	785901334149
UPC Code	785901334149
Voltage Rating	24, 24 VDC
Width	23.6 mm, 0.93

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	standardelectricsupply.com	2289968	290.15	1	2		Square D (Schneider Electric)		290.15 @ 2
	RS Delivers	806-7051	321.672	1	2		Schneider Electric		321.672 @ 2
	Radwell	TM3AM6G	371.86	1	2		SCHNEIDER ELECTRIC		371.86 @ 2
	gordonelectricsupply.com	TM3AM6G	375.0	1	2	10	SQUARE D		375.0 @ 2
	Zoro	G0040461	381.55	1	2	260	Schneider Electric	0.52	381.55 @ 2
	crescentelectric.com	543615	440.48	1	2		Schneider Electric		440.48 @ 2
	us.rs-online.com	70406714	478.31	1	2		Schneider Electric		478.31 @ 2
	Newark	84X5891	480.41	1	2		SCHNEIDER ELECTRIC		480.41 @ 2
	sustainablesupply.com	C2926672	497.35	1	2		Schneider Electric	0.52	497.35 @ 2
	Graybar	25666530	519.6128	1	2		Square D (Schneider Electric)		519.6128 @ 2
