Square D 9007FTUB1

B011OY9KOC

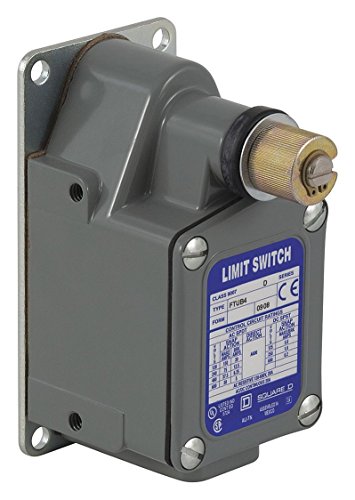

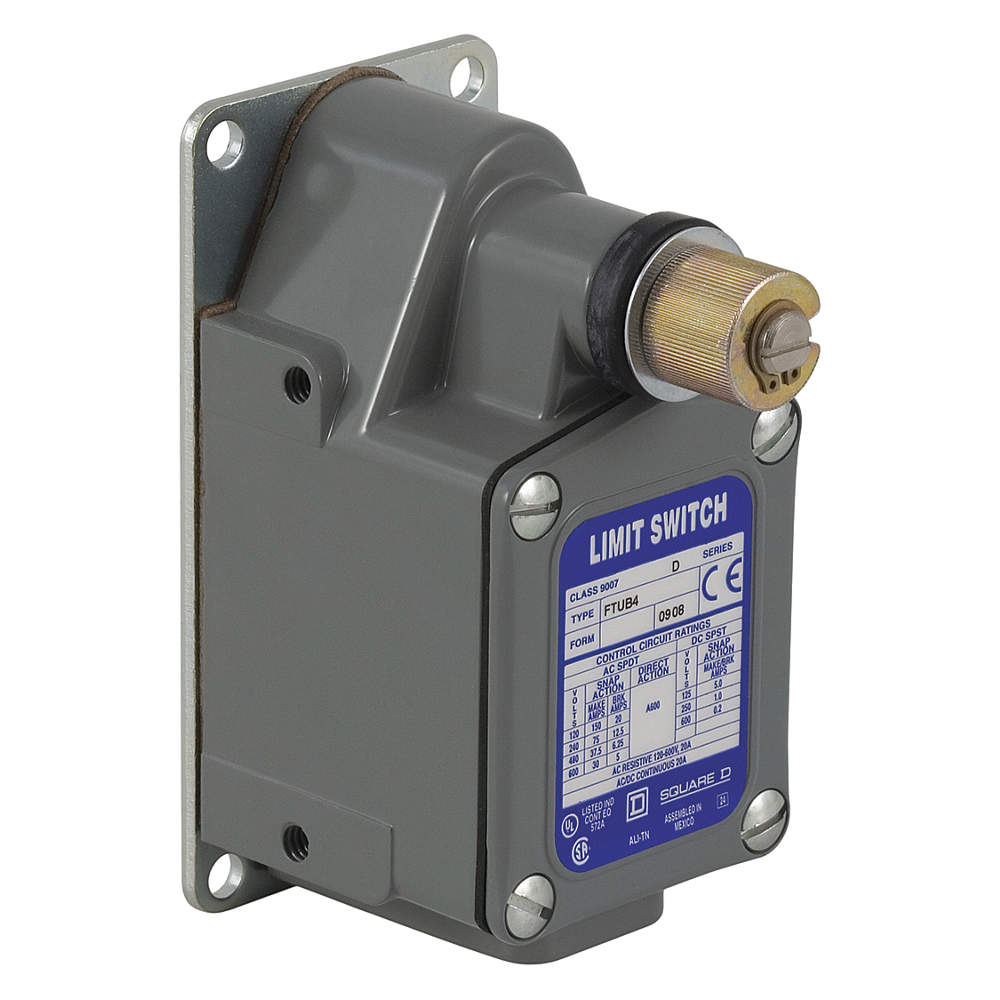

Square D 9007FTUB1 NSFPGENUINE 9007 FTUB1 Schneider Telemecanique

Square D 9007FTUB1 NSFPGENUINE 9007 FTUB1 Schneider Telemecaniquezoom

Attributes

Key Value
[Ithe] Conventional Enc.20 A
[Ui] Rated Insulation V.600 V 3)IEC 609470-1 ||.
[Uimp] Rated Impulse Wi.2.5 kV AC for 1 minute .
AC Contact Rating - Lim.20A @ 600V
Actuator Location (Limi.Top
Actuator Location - Lim.Top
Actuator Style - Limit .No Lever, Rotary
Actuator TypeSide Rotary - No Lever
Ambient Air Temperature.-10-185 ?F
Ambient Air Temperature.-10-185 ?F
Base Plate Stylestyle B
Basic Actuator Style (L.Rotary
Basic Actuator Style - .Rotary
Body Depth - Limit Swit.2.44 in
Body Height - Limit Swi.4.66 in
Body Materialcast zinc
Body Style (Limit Switc.Standard
Body Style - Limit Swit.Standard
Body Typefixed
Body Width - Limit Swit.2.25 in
Cable Entry1 entry for 1/2" - 14 N.
California Proposition .Diisononyl phthalate (D.
CategorySwitches
CircuitSPDT (DB/DM)
Contact Code DesignationA600, AC (Ue = 600 V) I.
Contact FormForm Z
Contact Form- SwitchesSPDT
Contact Operationsnap action
Contact Sequence Number1
Contacts Materialsilver flashed copper
Current Rating (Amps)20A (AC), 5A (DC)
DC Contact Rating - Lim.Not Rated
Depth3.41 in, 3.41"
DescriptionLIMIT SWITCH, 9007, 600.
Detailed DescriptionSwitch SPDT (DB/DM) Cha.
Device Applicationuniversal foundry switch
Device Short Name9007T/FT
Differential Travel-
Digi-Key Part Number4008-9007FTUB1-ND
Electrical Connectionscrew-clamp terminals A.
Electrical Life-
Electrical Shock Protec.class 0 IEC 61140
Environmental DisclosureENVPEP111160EN
Eu Rohs DirectiveNot applicable, out of .
Features-
Fixing Modeby the body
Head Typerotary head
Height4.66", 4.66-4.66 in
Ingress ProtectionIP67 - Dust Tight, Wate.
Ip Degree Of ProtectionIP67 conforming to IEC .
ItemFoundry Duty Limit Swit.
ManufacturerSchneider Electric
Manufacturer Product Nu.9007FTUB1
Manufacturer Standard L.1 Weeks
Maximum Actuation Speed130 ft/min with 30? cam.
Maximum Displacement An.88 ?
Mechanical Life-
MfrSchneider Electric
Minimum Torque For Trip.12 lbf.in
Mounting - Limit SwitchSurface
Mounting Hole - Limit S.(4) 0.26 in dia
Mounting Hole Spacing -.4.22 in x 1.81 in
Mounting TypeChassis Mount
Movement Of Operating H.Rotary
Nema Degree Of Protecti.NEMA 1 Nema type 250 ||.
Net Weight2.5 lb(US)
Number Of Poles1
Operating Force-, 12.0 in-lb
Operating Position-
Operating Temperature-23?C ~ 85?C
Overtravel-
PackageBox
Positive Openingwithout
Pretravel-
Product Or Component Ty.limit switch
Product StatusActive
Promotion RestrictionNot eligible for promot.
Protective Treatmentcorrosion resistant gra.
Range Of Product9007
Reach RegulationReference contains Subs.
Release Force-
Repeat Accuracy+/- 0.004 in linear tra.
Sale Per Indivisible Qu.1
SeriesSquare D 9007FT
Series Namesevere duty foundry
Shock Resistance30 gn 9 ms IEC 60068-2-.
Short-Circuit Protection20 A Bussmann class CC .
Stem Thread - Limit Swi.No Stem
Switch ActuationCW || from left
Switch FunctionSPDT-DB, On-Mom
Terminals Description I.B (right side contact) .
Termination StyleScrew Terminal
Tripping Angle14 ?
Type Of Approachlateral approach
Type Of Operatorspring return without o.
Vibration Resistance10 gn 10-55 Hz)IEC 6006.
Voltage Rating600VAC
Voltage Rating - AC120 V
Voltage Rating - DC120 V
Warranty18 months
Width2.25", 2.25 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG9109965436.991In StockSquare D2.53436.99 @ 1
Superbreakers9007FTUB1485.01In StockSchneider Electric / Square D485.0 @ 1
thumbzoomDigi-Key16567432498.221In StockSchneider Electric498.22 @ 1
thumbzoomgordonelectricsupply.com9007FTUB1615.01In Stock10SQUARE D615.0 @ 1
thumbzoomsustainablesupply.comC1190903639.011In StockSquare D2.53639.01 @ 1
thumbzoomNational Supply Network69658573655.191In StockSquare D655.19 @ 1
thumbzoommayerelectric.comSQD9007FTUB1667.071In StockSQUARE D2.5667.07 @ 1
thumbzoommostelectric.com9007FTUB1677.511In StockSQUARE D/TELEMECANIQUE677.51 @ 1
thumbzoomRaptor SuppliesAG4VJW1038.018151In StockSQUARE D1038.01815 @ 1
