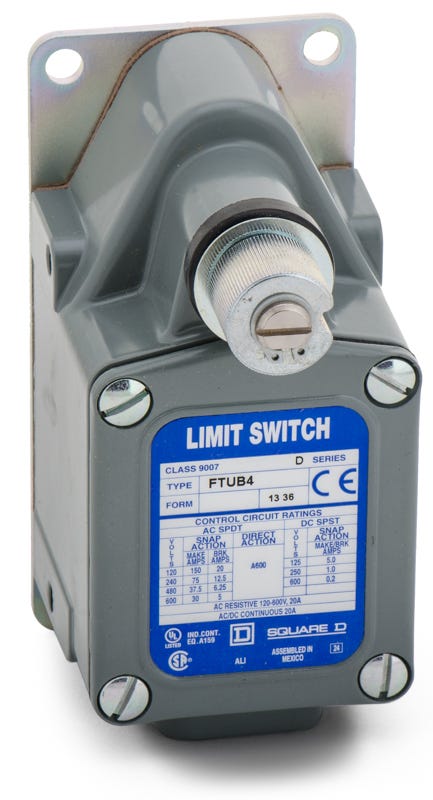

Square D by Schneider Electric 9007FTUB4 9007Ft Nema Limit Switch, Universal Style, For Foundry Casting, Base Plate with End Mounting Holes, Spdt, CwithCcw Action, Spring Ret. To Neutral, 1/2"-14 Npt, Heavy Duty Contacts

Square D by Schneider Electric 9007FTUB4 9007Ft Nema Limit Switch, Universal Style, For Foundry Casting, Base Plate with End Mounting Holes, Spdt, CwithCcw Action, Spring Ret. To Neutral, 1/2"-14 Npt, Heavy Duty Contactszoom

Attributes

Key Value
AC Contact Rating20A @ 600V
AC Contact Rating - Lim.20A @ 600V, 20 A @ 600V
Actuator Location - Lim.Side
Actuator Style (Limit S.Rotary, No Lever
Actuator Style - Limit .No Lever, Rotary
Actuator TypeRotary
Amperage20A
Basic Actuator Style - .Rotary
Body Depth - Limit Swit.2.44 in
Body Height - Limit Swi.4.66 in
Body MaterialZinc
Body Style (Limit Switc.Standard
Body Style - Limit Swit.Standard
Body Width - Limit Swit.2.25 in
Boot Sealed Actuator - .No
BrandSquare D
Contact Form- SwitchesSPDT
Contact Rating (125 VAC)20 A
Contact Rating (125 VDC)5 A
Contact Rating (250 VAC)12.5 A
Contact Rating (250 VDC)1 A
Contact Rating (480 VAC)6.25 A
Contact Rating (600 VAC)5 A
Contacts1NO/1NC
DC Contact Rating20A @ 600V
DC Contact Rating - Lim.20A @ 600V, 20 A @ 600V
Depth3.41"
Direction of OperationCW/CCW
Electrical ConnectionScrew Terminals
Family SeriesSquare D Limit Switches.
Gross Weight0 lbs
Gtin785901904014
Height4.66"
Housing MaterialZinc
IEC Protection RatingIP67
IP Rating67
ItemFoundry Duty Limit Swit.
Item Number9007FTUB4
Limit Switch StyleFoundry Duty Limit Swit.
ManufacturerSquare D
Manufacturer Part Number434023
Mounting - Limit SwitchSurface
Mounting Hole - Limit S.(4) 0.26 in dia
Mounting Hole Pattern -.4 Hole Rectangular
Mounting Hole Spacing -.4.22 in x 1.81 in
MovementCCW, CW
Mpn9007FTUB4
Nema RatingNEMA 1/2/4/12/13
NEMA Rating1, 12, 13, 2, 4
Net Weight2.5 lbs
Operating Force12.0 in-lb
Operating Temp. Range-10 Degrees to 185 Deg.
Poles2
Product Series9007
Series9007FTU, 9007F
Special FeaturesWithstands 300 Degrees .
StandardsCE, CSA, UL
Stem Thread - Limit Swi.No Stem
Travel81 Degrees
Upc785901904014
Voltage600V
Voltage Rating600VAC/DC
Width2.25"
Wiring Entry1/2 in NPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.com9007FTUB4349.981In StockSquare D349.98 @ 1
Radwell9007-FTUB4422.51In StockSCHNEIDER%20ELECTRIC422.5 @ 1
thumbzoomGalco9007FTUB4-SQD488.521In StockSquare D2.5488.52 @ 1
thumbzoomZoroG6149787488.991In StockSquare D2.45488.99 @ 1
Grainger2EG60514.01110SQUARE D514.0 @ 1
thumbzoomgordonelectricsupply.com9007FTUB4615.01In Stock10SQUARE D615.0 @ 1
steinerelectric.com100196639.941In StockSquare D?639.94 @ 1
thumbzoommostelectric.com9007FTUB4677.511In StockSQUARE D/TELEMECANIQUE677.51 @ 1
thumbzoomsustainablesupply.comC2682158683.081In StockSquare D2.45683.08 @ 1
thumbzoomNational Supply Network54423959724.711In StockSquare D724.71 @ 1
grainger.caSQD9007FTUB4803.097080941In StockSQUARE D2.6803.09708094 @ 1
AmazonTPB07NMTMS19818.741In Stock2SQUARE D/TELEMECANIQUE818.74 @ 1
AmazonUNKB07NMTMS19818.741In StockSQUARE D/TELEMECANIQUE818.74 @ 1
thumbzoomRaptor SuppliesAF9FXN1057.80641851In StockSQUARE D1057.8064185 @ 1
