SULLINS NRPN022PAEN-RC

B073RPCY4J

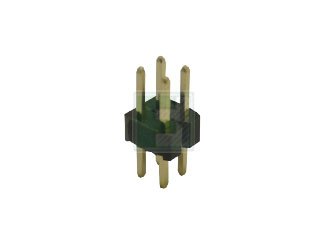

SULLINS NRPN022PAEN-RC Dual Row 4 Position 2 mm Pitch Straight Male Header - 25 item(s)

SULLINS NRPN022PAEN-RC Dual Row 4 Position 2 mm Pitch Straight Male Header - 25 item(s)zoom

Attributes

Key Value
Applications-
Base Product NumberNRPN022
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thicknes.Flash
Contact Finish Thicknes.Flash
Contact Length - Mating0.141" (3.60mm)
Contact Length - Post0.110" (2.79mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)2A
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.079" (2.00mm)
Insulation MaterialPolyamide (PA6T), Nylon.
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrSullins Connector Solut.
Mounting TypeThrough Hole
Number of Positions4
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
Overall Contact Length0.330" (8.38mm)
PackageBulk
Part StatusActive
Pitch - Mating0.079" (2.00mm)
Product StatusActive
Row Spacing - Mating0.079" (2.00mm)
Series-
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating150V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key8049540.1896125Sullins Connector Solutions0.1896 @ 25
HotendaH13133770.546125Sullins Connector Solutions0.546 @ 25
