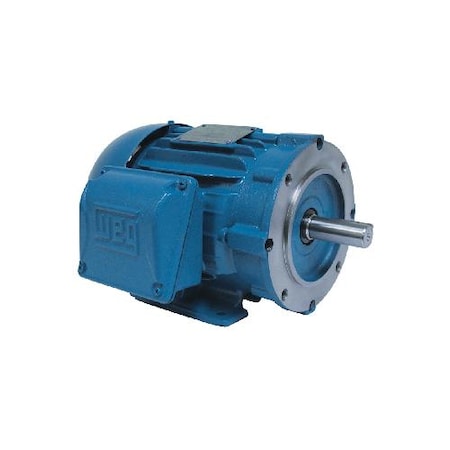

WEG Electric Motor 01012ET3E256TC-W22

B00BC8J596

WEG Electric, 01012ET3E256TC-W22, 10HP, 1200RPM, 3PH, 208V;230V;460V, 256TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor.

WEG Electric, 01012ET3E256TC-W22, 10HP, 1200RPM, 3PH, 208V;230V;460V, 256TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor.zoom

Attributes

Key Value
Amperage Rating28.5 to 26.6/13.3 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
CompositionCAST IRON
ConditionNew
Constant Torque Speed R.20:1
ConstructionCAST IRON
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 10HP 6P 254/6TC W.
Dimensions24.945 in L
Drive End Flange TypeC-Face
Efficiency %91 %
EnclosureTEFC, IC411 -TEFC, Tota.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight324.00
Family SeriesWEG Electric Motors
FL Amps12.9
FL Efficiency91.0
FlangesFlange C
FRAME254/6TC
Frame254/6T, 256TC, 254/6TC,.
Frame MaterialCAST IRON
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps12.9
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number01012ET3E256TC-W22
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number01012ET3E256TC-W22
MaterialCAST IRON
MFG Part #:01012ET3E256TC-W22
Model11458408
Motor Enclosure DesignTEFC
Motor Mounting TypeFOOT
Motor Service Factor1.25
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
Nameplate RPM1200
NEMA Frame256TC
Net Weight0 lbs
Nominal Efficiency91
Nominal Voltage208 VAC
Number of Poles6
Number of Speeds1
Output Rating10 hp
Overall Length24.945
Part Number01012ET3E256TC-W22
Phase3, 3 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,200 RPM, 1175, 1200
Service Factor1.25
Speed1175 rpm
Speed (RPM)1200
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1200 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7891327200029
VOLTAGE230/460
Voltage230/460//380 V, 208-230.
Voltage (AC)208 VAC
Volts208/230/460
WEIGHT329
Weight314.910000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com01012ET3E256TC-W221415.01In StockWEG292.01415.0 @ 1
thumbzoomZoroG6024845021739.01In Stock11Weg329.01739.0 @ 1
thumbzoommotorsandcontrol.com01012ET3E256TC-W221827.941In StockWEG Electric324.01827.94 @ 1
thumbzoomWalker Industrial01012ET3E256TC-W221848.751In Stock17WEG1848.75 @ 1
thumbzoomSquare One01012ET3E256TC-W221848.751In StockWEG1848.75 @ 1
thumbzoomMRO Supply13122471886.261In StockWEG1886.26 @ 1
kscdirect.comWEG 01012ET3E256TC-W221893.051In StockWEG ELECTRIC CORP1893.05 @ 1
thumbzoomGalco01012ET3E256TC-W22-WEG2024.591In StockWEG Electric2024.59 @ 1
thumbzoomindustrialrefrigerationparts.com01012ET3E256TC-W222088.31In StockWEG314.912088.3 @ 1
thumbzoomRadwell01012ET3E256TC-W222250.01In StockWEG2250.0 @ 1
thumbzoomDealers Electric01012ET3E256TC-W222250.581In StockWeg324.02250.58 @ 1
thumbzoomPurvis01012ET3E256TC-W222253.011In StockWEG2253.01 @ 1
thumbzoomvfds.com01012ET3E256TC-W222465.01In StockWEG2465.0 @ 1
Airline HydraulicsWEG 01012ET3E256TC-W222541.241In StockWEG2541.24 @ 1
thumbzoomNational Supply NetworkB8734863107.191In StockWeg Electric Motors3107.19 @ 1
