- mpn48247
- brandname: CHICAGO-LATROBE
- manufacturername: CHICAGO-LATROBE

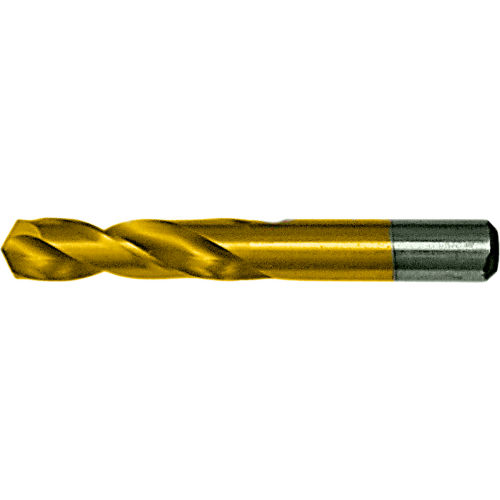

Chicago Latrobe 2159 High-Speed Steel Short Length Drill Bit, TiN Coated, Round Shank, 135 Degree Split Point, Letter Size P (Pack of 6)
- Brand: Chicago Latrobe
- PartNumber: 48247
- Model: 48247
- Size: P
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Bit Dia. | P |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 1-11/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3230 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3230" |
| Diameter (Wire/Let) | P |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Individual, Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | P |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0000 |
| Drill Size - Decimal In. | 0.323 in |
| Drill Size - Letter | P |
| Drill Size System | Letter |
| Drill Style | Screw Machine Drill |
| Drilling Length | 1-11/16" |
| Finish | TiN Coated |
| Finish - Machining | TiN |
| Flute Length | 1.6875", 1 11/16 in, 1-. |
| Flute Length (Metric) | 42.86mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| Item | Screw Machine Drill Bit |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | Heavy Duty |
| Maximum Drilling Depth | 1 11/16 in |
| Measurement System | Letter |
| Number of Flutes | 2 |
| Overall Length | 2-15/16 in, 2 15/16 in,. |
| Overall Length (Metric) | 74.61mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Steel, Tool . |
| Primary Material Applic. | K, P |
| Series | 159-TN, 159-TN/2159 |
| Shank Configuration | Straight |
| Shank Dia. | 5/16 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 0.323 in Dia x 1.25 in . |
| Shank Size (Metric) | 8.20mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | P |
| Spiral Direction | Right Hand |
| Standards | ANSI |
| Style | 159-TN |
| Surface Condition | TiN |
| Tool Size | P |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129932 | 7.33 | 5 | 6 | | Chicago-Latrobe | | 7.33 @ 6 |
 | Megadepot | 48247 | 7.49 | 1 | 6 | | Chicago-Latrobe | | 7.49 @ 6 |
 | heavydutydepot.com | 48247 | 7.49 | 14 | 6 | | Chicago-Latrobe | | 7.49 @ 14 |
 | Zoro | G2991821 | 7.85 | 6 | 6 | 8 | Chicago-Latrobe | 0.06 | 7.85 @ 6 |
 | sustainablesupply.com | C2764657 | 8.87 | 1 | 6 | | Chicago-Latrobe | 0.06 | 8.87 @ 6 |
 | usmegastore.com | 48247 | 9.1 | 1 | 6 | | Chicago-Latrobe | | 9.1 @ 6 |
 | bscsource.com | 48247 | 9.19 | 1 | 6 | | Chicago-Latrobe | | 9.19 @ 6 |
 | National Supply Network | 6131734 | 12.255 | 1 | 6 | | Chicago-Latrobe | | 12.255 @ 6 |
 | Guardian | 06131734 | 17.23 | 1 | 6 | | Chicago-Latrobe | | 17.23 @ 6 |
 | Global Industrial | WBB2546594 | 46.2 | 1 | 6 | | CHICAGO-LATROBE | | 46.2 @ 6 |
| Grainger | 439H82 | 57.0 | 1 | 6 | | CHICAGO-LATROBE | | 57.0 @ 6 |
