- mpnC24365
- brandname: Cle-Line
- manufacturername: Cle-Line

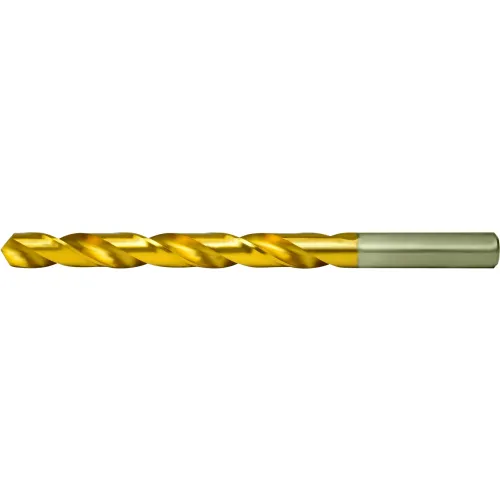

Cle-Line C24365 General Purpose Jobber Length Drill, High Speed Steel, TiN Finish, Straight Shank, 118-Degree Radial Point, 8.00 mm Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C24365
- Model: C24365
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.374, 0.3150 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3150" |
| Diameter (Metric) | 8.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 8.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in,. |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0946mm |
| Drill Size - Decimal In. | 0.315 in |
| Drill Size - Metric | 8 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | TiN Coated |
| Finish - Machining | TiN |
| Flute Length | 75 mm, 75.00 mm, 2.9528. |
| Flute Length (Metric) | 75.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Item? | 50CP92 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2 13/64 in, 1-1/4 in |
| Measurement System | Metric |
| Mfr. Model? | C24365 |
| Number of Flutes | 2 |
| Overall Length | 117.00mm, 117.00 mm, 4.. |
| Overall Length (Metric) | 117.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum; Brass; Bronze. |
| Primary Material Applic. | K; N; P |
| Series | 1898-TN, 1898T |
| Shank Configuration | Straight |
| Shank Dia. | 8 mm |
| Shank Length | 42 mm, 1.6535" |
| Shank Length (Metric) | 42.00mm |
| Shank Size | 8 mm Dia x 42 mm L, 0.3. |
| Shank Size (Metric) | 8.00mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | DIN 338, ASME B94.11M; . |
| Style | 1898T |
| Surface Condition | TiN |
| Through Coolant (Yes/No) | No |
| Tool Size | 8mm, 8.00mm |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545692 | 6.3 | 6 | 6 | | Cle-Line | | 6.3 @ 6 |
 | Megadepot | C24365 | 6.43 | 1 | 6 | | Cle-Line | | 6.43 @ 6 |
 | heavydutydepot.com | C24365 | 6.43 | 16 | 6 | | Cle-Line | | 6.43 @ 16 |
 | usmegastore.com | C24365 | 6.64 | 1 | 6 | | Cle-Line | | 6.64 @ 6 |
 | MRO Supply | 6125249 | 7.5 | 7 | 6 | | Cle-Line | | 7.5 @ 7 |
| Grainger | 50CP92 | 10.29 | 1 | 6 | | CLE-LINE | | 10.29 @ 6 |
 | Zoro | G4939536 | 44.94 | 1 | 6 | | Cle-Line | 0.01 | 44.94 @ 6 |
