- mpnC08688
- brandname: CLEVELAND
- manufacturername: CLEVELAND

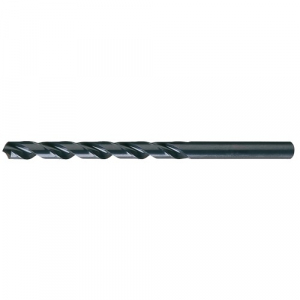

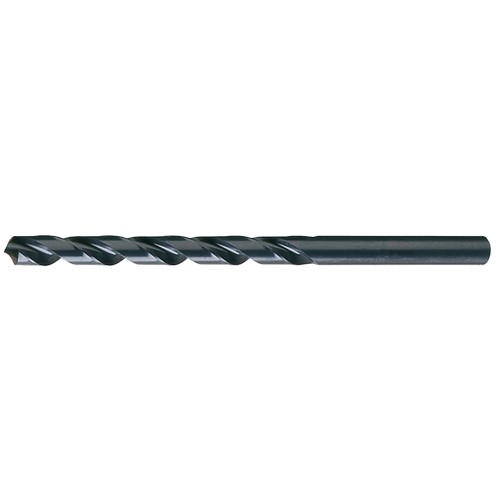

Cleveland C08688 High-Speed Steel General Purpose Taper Length Drill Bit, Steam Oxide Finish, Round Shank, Spiral Flute, 118 Degrees Radial Point, 21 Size (Pack of 10)
- Brand: CLEVELAND
- PartNumber: C08688
- Model: C08688
- Size: #21
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries, Inc.
- Label: Greenfield Industries, Inc.
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Drilling Carbon Ste. |
| Brand | CLEVELAND |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Depth | 3-3/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1590 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #21 |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.0478 in |
| Drill Size - Decimal In. | 0.159 in |
| Drill Size - Wire | #21 |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 3/8 in, 3-3/8 in |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 21 Degrees /34 Degrees,. |
| Item | Taper Length Drill Bit |
| Item? | 439M16 |
| List Number | 2510 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 3 3/8 in, 3-3/8 in |
| Measurement System | Wire |
| Mfr. Model? | C08688 |
| Number of Flutes | 2 |
| Overall Length | 5 3/4 in, 5-3/4 in |
| Point Angle | 118 deg |
| Point Type | Radial |
| Primary Material Applic. | Cast Iron, Steel, Cast . |
| Primary Material Applic. | K, P, K; P |
| Series | 2510 |
| Shank Dia. | 5/32 in |
| Shank Length | 2-3/8 in, 2 3/8 in |
| Shank Size | 0.159 in |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | #21 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M-1993 |
| Style | 2510 |
| Surface Condition | Steam Oxide |
| Tool Size | #21 |
| Type | General Purpose |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6109989 | 7.41 | 5 | 10 | | Cleveland | | 7.41 @ 10 |
 | usmegastore.com | C08688 | 8.63 | 1 | 10 | | Cleveland | | 8.63 @ 10 |
 | Megadepot | C08688 | 8.63 | 1 | 10 | | Cleveland | | 8.63 @ 10 |
 | Zoro | G2995288 | 9.1 | 1 | 16 | | Cleveland | 0.02 | 9.1 @ 10 |
 | sustainablesupply.com | C2974976 | 10.42 | 1 | 10 | | Cleveland | 0.02 | 10.42 @ 10 |
 | bscsource.com | C08688 | 11.69 | 1 | 10 | | Cleveland | | 11.69 @ 10 |
| Grainger | 439M16 | 13.46 | 1 | 10 | | CLEVELAND | | 13.46 @ 10 |
 | National Supply Network | 63725212 | 14.309 | 1 | 10 | | Cleveland | | 14.309 @ 10 |
 | Guardian | 63725212 | 14.72 | 1 | 10 | | Cleveland | | 14.72 @ 10 |
