CLEVELAND C09111

mpnC09111
brandname: CLEVELAND
manufacturername: CLEVELAND

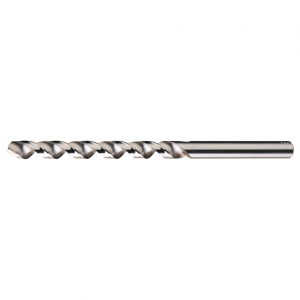

Cleveland 2550 High Speed Steel Long Length Drill Bit, High Helix, Uncoated (Bright), Round Shank, 118 Degree Conventional Point, 3/32 Inches (Pack of 10)

Brand: CLEVELAND
PartNumber: C09111
Model: C09111
Size: 3/32"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Alloy Steel, Aluminum, .
Application	For Drilling Carbon Ste.
Construction:	High Helix
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Cutting Depth	2-1/4 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.0938
Decimal Equivalent:	0.0938"/2.38mm
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter Fractional:	3/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Bright
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	3/32 in
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Taper Length
Drill Point Length	0.0282 in
Drill Size - Decimal In.	0.0938 in
Drill Size - Fraction	3/32 in
Finish	Bright
Finish - Machining	Bright (Uncoated)
Flute Length	2 1/4 in, 2-1/4 in
Flute Type	Helical, Spiral
Grade	General Purpose
Hand of Spiral Cut:	RHS/RHC
Helix Angle	35 Degrees /45 Degrees
Item	Taper Length Drill Bit
Length of Flute:	2.2500" /57.15mm
List Number	2550
List Style:	2550
Material	HSS
Material - Machining	High Speed Steel
Material Grade - Machin.	General Purpose
Material:	High Speed Steel
Maximum Drilling Depth	2 1/4 in
Measurement System	Fractional Inch
Number of Flutes	2
Overall Length	4 1/4 in, 4-1/4 in
Overall Length:	4.2500"/ 107.95mm
Point Angle	118 deg
Point Type	Radial
Point:	118? Radial
Primary Material Applic.	Aluminum, Brass, Bronze.
Primary Material Applic.	N, P
Secondary Material Appl.	Carbon Steel
Secondary Material Appl.	P
Series	2550
Shank Dia.	3/32 in
Shank Length	2 in
Shank Size	3/32 in
Shank Size:	0.0938"/2.38mm
Shank Type	Straight
Shank Type - Machining	Straight
Shank:	Straight
Sizes Included	3/32"
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2550
Surface Condition	Bright
Surface Condition:	Bright
Tool Size	3/32"
Type	High Helix

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
MRO Supply	6110117	4.25	9	10	Cleveland		4.25 @ 10
usmegastore.com	C09111	4.46	1	10	Cleveland		4.46 @ 10
Zoro	G2996581	5.79	1	13	Cleveland	0.01	5.79 @ 10
sustainablesupply.com	C2766625	5.92	1	10	Cleveland	0.01	5.92 @ 10
Guardian	63729065	9.15	1	10	Cleveland		9.15 @ 10
