- mpn205-SR
- brandname: De-Sta-Co
- manufacturername: De-Sta-Co

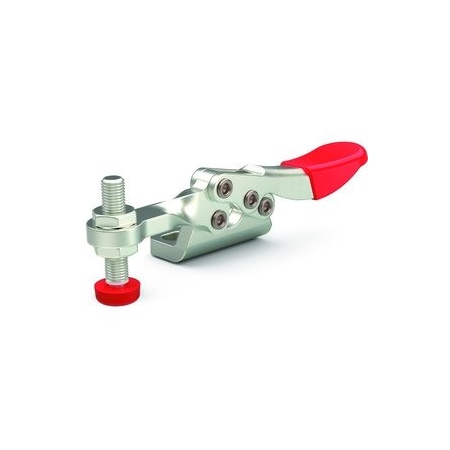

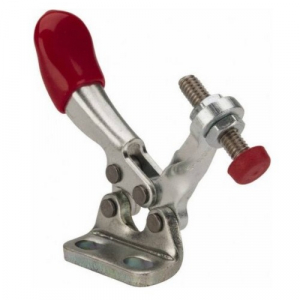

De-Sta-Co Horizontal Handle Hold-Down Clamp, Solid-bar, Right flange base, w/60 lbs. cap., Steel (1 Each)
- Brand: De-Sta-Co
- PartNumber: 205-SR
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Reid Supply Company
- Label: Reid Supply Company
Attributes
| Key | Value |
|---|
| Accommodates Workpiece . | No |
| Accomodates Workpiece V. | No |
| Application - Assembly | Excellent/High |
| Application - Checking . | Excellent/High |
| Application - Closures | Excellent/High |
| Application - Food Proc. | Fair/Medium |
| Application - Machining | Poor/Low |
| Application - Welding | Poor/Low |
| Application - Wood-Work. | Excellent/High |
| Arm and Tip Style | Solid Bar with Steel Tip |
| Arm Length | 0.88 in |
| Arm Movement | 94 |
| Arm Style | solid bar |
| Arm Type | Solid |
| Available | Upon Request |
| Bar Width (mm) | 6.35 |
| Base Mounting Style | flanged, right, Flange |
| Base Type | Right Flange |
| Base Width | 0.95, 24.1 |
| Body Material | Steel |
| Brand | DESTACO |
| Clamp Arm Length (in) | 0.88 |
| Clamp Arm Opening Angle | 94 Degrees |
| Clamp Arm Style | solid bar |
| Clamp Bar Opening (+10?. | 94 |
| Duty Cycle | 2 |
| Handle | Horizonal |
| Handle Design | Standard Horizontal Ha. |
| Handle Movement | 82 |
| Handle Opening (+10?) | 82 |
| Handle Orientation | Horizontal |
| Height Under Arm | 9.4, 0.370, 0.39 in |
| Height Under Clamp Arm . | 0.39 |
| Holding Capacity | 266.9, 60 |
| Holding Capacity - Maxi. | 60 lbf |
| Includes Locking Handle | No |
| Item | Clamp Hold-Down Action . |
| Locking Handle Included | Standard |
| Max Arm Length | Less than 2" |
| Max Height Under Arm | Less than 1 |
| Maxmum Holding Capacity. | 61 |
| Mounting Hole Spacing A. | 0.620, 15.7 |
| Overall Height | .67, 17 |
| Overall Length | 70.6, 2.78 |
| Product Type | Clamp Hold-Down Action . |
| Service Environment | Normal |
| Spindle Thread Size | 8-32,M4 |
| Spindle Type | Neoprene Tipped |
| Standard Material | Steel |
| Tip Material | Steel |
| Tip Material - Combined. | Steel |
| Toggle Lock Plus | No |
| Weight (lb) | 0.07 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| reidsupply.com | TC-205-SR | 18.77 | 1 | 6 | | DESTACO | | 18.77 @ 1 |
 | freertool.com | DE-STA-CO-205-SR | 19.82 | 1 | In Stock | | DESTACO | 0.07 | 19.82 @ 1 |
 | kinequip.com | 205-SR | 20.01 | 1 | In Stock | | Destaco | | 20.01 @ 1 |
 | Zoro | G0875975 | 24.38 | 1 | In Stock | 20 | De-Sta-Co | 0.1 | 24.38 @ 1 |
 | Guardian | 99147472 | 25.85 | 1 | In Stock | | De-Sta-Co | | 25.85 @ 1 |
 | bscsource.com | 205SR | 27.39 | 1 | In Stock | | De-Sta-Co | | 27.39 @ 1 |
 | primebuy.com | 205-SR | 27.72 | 1 | In Stock | | Destaco | | 27.72 @ 1 |
 | National Supply Network | 99147472 | 35.13 | 1 | In Stock | | De-Sta-Co | | 35.13 @ 1 |
 | Raptor Supplies | AJ8BHG | 37.051326 | 1 | In Stock | | DESTACO | | 37.051326 @ 1 |
