Dormer S9224.0

mpnS9224.0
brandname: Dormer
manufacturername: Dormer

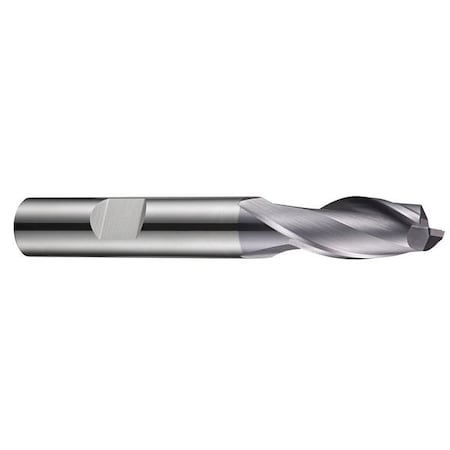

Dormer S9224.0 Shank End Mill, Weldon Shank, TiAlN Coat, HM, Head Diameter 4 mm, Shank Dia 4 mm, Flute Length 14 mm, Full Length 50 mm

Dormer S9224.0 Shank End Mill, Weldon Shank, TiAlN Coat, HM, Head Diameter 4 mm, Shank Dia 4 mm, Flute Length 14 mm, Full Length 50 mm

zoom

Brand: Dormer
PartNumber: S9224.0
Model: 0039946
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dormer Pramet
Label: Dormer Pramet

Attributes

Key	Value
Basic Standard	DORMER
Coating property (CTP)	1
Connection diameter - m.	4
Country of Origin (subj.	Brazil
Cutting Direction	Right
Depth of cut maximum - .	14
Dimension Type	Metric
EDP number	39946
End Mill Material	HM
End Mill Style	End Mill
Finish	TiAlN
Flute count (NOF)	2
Flute helix angle (FHA)	30
Item	Slotting End Mill,4mm
Length of Cut (In.)	14
Material	HM
Material application	K - Cast iron, N - Non-.
MID number	5982764
Milling Dia.	4
Number of Flutes	2
Ordering code ANSI	S9224.0
Overall Length (In.)	50
Peripheral effective cu.	2
Radial rake angle (GAMF)	12
Shank Dia. (In.)	4
Shank Shape	Medium

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G9048649	20.6	1	In Stock	10	Dormer	0.02	20.6 @ 1
	MRO Supply	6079266	27.11	3	In Stock		Dormer Pramet		27.11 @ 3
