FANTECH FR160

B000GXDZBM

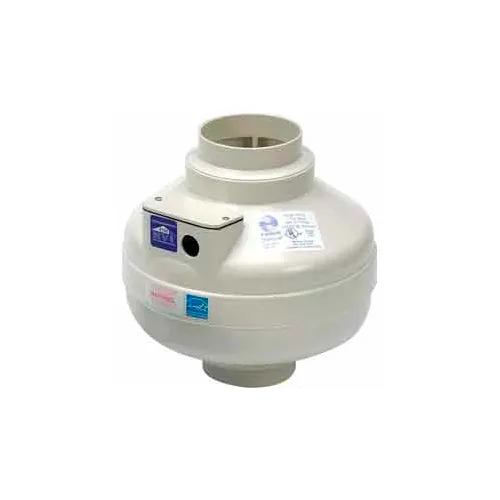

Fantech - FR160 FR 160 In-Line Centrifugal Duct Fan, 6-Inch

Fantech - FR160 FR 160 In-Line Centrifugal Duct Fan, 6-Inchzoom

Attributes

Key Value
Airflow @ 0.000 in SP345 cfm
ApplicationGeneral Purpose
Bearing TypeBall Bearing
BrandFantech
CFM @ 0.000-In. SP345
CFM @ 0.125-In. SP281
CFM @ 0.250-In. SP248 cfm
CFM @ 0.375-In. SP235 cfm
Current Stock47
Duct Diameter6 in
Fits Duct Dia.6 in
For Fan TypeCentrifugal Duct Fan
Green Certification or .ENERGY STAR(R) Certifie.
Green Environmental Att.Product Contributes To .
Height9 5/8 in
High-Efficiency MotorNo
Housing Dia.11 3/4 in
Housing FinishMolded Plastic
Housing MaterialPlastic
Hz60
IncludesMounting Bracket
Inlet and Outlet Dia.6 in
International ShippingNo
ItemIn-Line Duct Fan
Lead TimeExpected to ship in 1-2.
Length9 5/8 in
Max. Amps0.99 A
Max. Wattage99
Maximum Inlet Air Tempe.140 Degrees F
Motor EnclosureExternal Rotor
Motor IP RatingIP44
Motor Output Power116 W
Motor RPM2750
Motor Speed2,750 RPM
Mounting OrientationHorizontal or Vertical
MpnFR160
Nameplate Voltage120V AC
Number of Speeds1
Overall Diameter11 1/2 in
Overall Dimensions H x W9 1/4 in x 11 1/2 in
Overall Height9 1/4 in
Overall Width11 1/2 in
Phase1
SKUZO-G4718323
Speed Control IncludedYes
Speed ControllableYes
StandardsHVI, cULus, cCSAus
UPC650737011604
Voltage120v

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricsuppliesonline.comFR160201.71In StockFANTECH201.7 @ 1
thumbzoomZoroG4718323223.99165Fantech7.5223.99 @ 1
thumbzoomsustainablesupply.comC1129843237.441In StockFantech7.5237.44 @ 1
thumbzoomimprovedepot.com710029245.11In StockFantech245.1 @ 1
AmazonTPB008FM6IYC248.661In Stock2Fantech248.66 @ 1
AmazonUNKB008FM6IYC248.661In StockFantech248.66 @ 1
AmazonSCB008FM6IYC248.691In StockFantech248.69 @ 1
thumbzoomsimsupply.comZO-G4718323252.15147Fantech252.15 @ 1
thumbzoomFaucet DepotFR160255.21In StockFantech255.2 @ 1
thumbzoomGlobal IndustrialWBB460889279.951In Stock14Fantech279.95 @ 1
grainger.caWWG15W685280.081277341In StockFANTECH7.5280.08127734 @ 1
thumbzoomNational Supply NetworkB460889282.941In StockFantech Inc.282.94 @ 1
