- mpnDL24-00-15
- brandname: Flowline
- manufacturername: Flowline

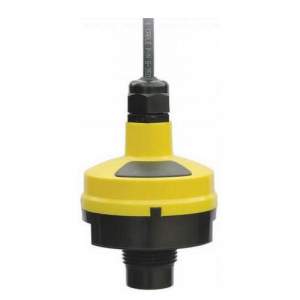

Flowline DL24-00-15, EchoPod Ultrasonic Level Transmitter, Switch
- PartNumber: DL24-00-15
- PackageQuantity: 1
- Manufacturer: Flowline
Attributes
| Key | Value |
|---|
| Accuracy | ? 0.2% of range |
| Ambient temp | F: -31? to 140?, C: -35. |
| Approvals | cFMus |
| Beam width | 2? (5.08cm) |
| Cable jacket mat | Polyurethane |
| Cable length | 48? (1.2m) |
| Cable type | 9-conductor, shielded |
| Classification | General purpose |
| Compliance | CE, RoHS |
| Configuration | WebCal? PC, Windows?, U. |
| Consumption | 0.5W |
| Contact fail-safe | Power loss: Hold last, . |
| Contact rating | 60 VA, 1A maximum |
| Contact type | (4) SPST relays |
| Dead band | 4? (10cm) |
| Encl. material | Polycarbonate |
| Enclosure rating | Type 6P, encapsulated, . |
| Hysteresis | Selectable |
| Loop resist | 400 max |
| Memory | Non-volatile |
| Mount gasket | Viton |
| Pressure | MWP = 30 PSI (2 bar) |
| Process mount | 1? NPT (1? G) |
| Process temp | F: 20? to 140?, C: -7? . |
| Range | 9.8' (3m) |
| Resolution | 0.039? (1mm) |
| Signal fail-safe | 4 mA, 20 mA, 21 mA, 22 . |
| Signal invert | 4-20 mA or 20-4mA |
| Signal output | 4-20 mA, two-wire |
| Supply voltage | 24 VDC (loop) |
| Temp. comp. | Automatic |
| Trans. material | PVDF |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| usmegastore.com | DL24-00-15 | 820.0 | 1 | In Stock | | Flowline | | 820.0 @ 1 |
