- mpn289459
- brandname: Greenfield Threading
- manufacturername: Greenfield Threading

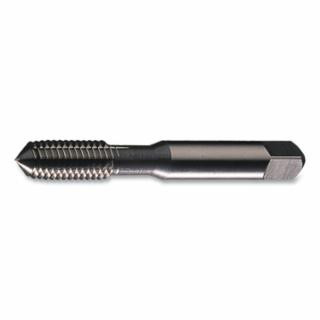

Greenfield Threading 289459 GT/VTD #10-32NF FTGP H6 GP Bottom Form Tap
- Brand: Vermont Tap & Die
- PartNumber: 289459
- Model: 289459
- Size: #10 - 32 Unf
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 4.52 mm, 4.52mm |
| 65% Thread Drill Size | 4.45 mm, 4.45mm |
| 75% Thread Drill Size | 4.40 mm, 4.40mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Bottoming |
| Class of Fit | 2B/3B, 2B-3B |
| Cutting Direction | Right Hand |
| Diameter | 0.1900" |
| Extended Neck | Yes |
| Finish/Coating | Bright |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Item | Machine Tap, Thread For. |
| Length of Cut | 2 in |
| List Number | FTGP |
| Material | HSS, High-Speed Steel |
| Material Grade - Machin. | FTGP |
| Measurement System | Imperial |
| Number of Flutes | 0 |
| Number of Pieces | 1 |
| Overall Length | 2-3/8 in, 2 3/8 in, 2.3. |
| Overall Length (Metric) | 60.32mm |
| Package Quantity | 6 per case |
| Pitch Diameter Limit | H6 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N, P |
| Product Type | Plug Machine Tap |
| Series | FTGP |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.194" |
| Shank Diameter | 0.152 in |
| Shank End | Square |
| Shank Length | 1 1/2 in |
| Shank Size | 0.1940", 0.194 in |
| Shank Size (Metric) | 4.93mm |
| Shank Square Length | 0.2500" |
| Shank Square Length (Me. | 6.35mm |
| Shank Square Width | 0.1520" |
| Shank Square Width (Met. | 3.86mm |
| SKU | 289459 |
| Spiral Direction | Neutral |
| Square Size | 0.152 in, 0.1520 in |
| Standards | USCTI Table 302A, USCTI. |
| Style | FTGP |
| Surface Condition | Bright |
| Surface Finish | Bright |
| Tap Blank Construction | USCTI Table 302A |
| Tap Chamfer | Bottoming |
| Tap Construction | Bottoming, Standard |
| Tap Dimension Type | Inch |
| Tap Finish | Bright, Bright (Uncoate. |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Interrupted Thread | No |
| Tap Limit | H6 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.875 in, 0.8750" |
| Tap Size | #10 |
| Tap Spiral Point | No |
| Tap Style | Thread Forming, Thread . |
| Tap Thread Size | #10-32 |
| Tap Thread Type | UNF |
| Tap Truncated Threads | No |
| Tap Type | Machine Tap |
| Thread | #10-32 |
| Thread Creation | Thread Forming |
| Thread Direction | Right Hand |
| Thread Form | UNF |
| Thread Length | 0.5 in, 0.5000", 1/2", . |
| Thread Length (Metric) | 12.70mm |
| Thread Limit | H6 |
| Thread Limit / Class of. | H6 / 2B-3B |
| Thread Pitch | 32 |
| Thread Size | #10-32, #10-32 UNF, #10 |
| Thread Standard | UNF |
| Thread Tolerance | 2B-3B |
| Threads per Inch | 32 |
| Tool Size | #10-32 UNF |
| Type | General Purpose Standard |
| UPC | 6.62355E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4356947 | 13.56 | 1 | 1 | | Greenfield Threading | 0.01 | 13.56 @ 1 |
 | Megadepot | 289459 | 13.71 | 1 | In Stock | | Greenfield Threading | | 13.71 @ 1 |
 | heavydutydepot.com | 289459 | 13.71 | 8 | In Stock | | Greenfield Threading | | 13.71 @ 8 |
 | rshughes.com | 662355-17236 | 14.32 | 6 | In Stock | | Greenfield Industries | | 14.32 @ 6 |
 | MRO Supply | 6107699 | 14.35 | 3 | In Stock | | Greenfield Threading | | 14.35 @ 3 |
 | usmegastore.com | 289459 | 14.78 | 1 | In Stock | | Greenfield Threading | | 14.78 @ 1 |
| grainger.ca | GNF289459 | 20.64192264 | 1 | In Stock | | GREENFIELD THREADING | 0.005 | 20.64192264 @ 1 |
 | imsbolt.com | 289459 | 23.18 | 1 | In Stock | | GREENFIELD THREADING | | 23.18 @ 1 |
