HAMMOND C3R886HCR

B017TIV8WY

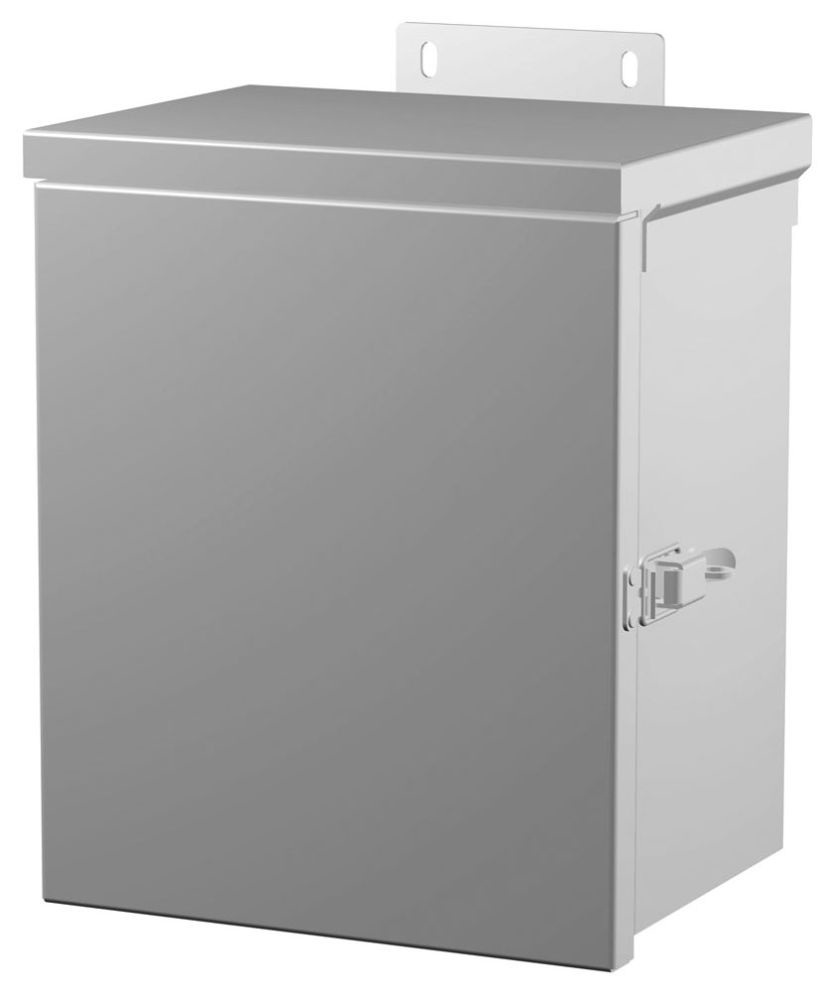

HAMMOND C3R886HCR Type 3R Painted Galvanized Steel Junction Box

HAMMOND C3R886HCR Type 3R Painted Galvanized Steel Junction Boxzoom

Attributes

Key Value
ApplicationDesigned for use as a w.
ApprovalsCSA, UL
Approximate Depth6" (152mm)
Approximate Height8" (203mm)
Approximate Width8" (203mm)
Area (L x W)64.0in? (413cm?)
Back Panel NumberN1JP88
Base Product NumberC3R886
BrandHammond Mfg.
Cable Entry SizeKnockout
Capacity384 cu-in
Catalog NumberC3R886HCR
CategoryBoxes, Enclosures, Racks
ColorANSI 61 Gray, Gray
CompositionMetallic
ConfigurationWith Knock-Outs
Container TypeBox
Country of OriginCanada
Cover DesignHinged
Cover MaterialSteel
Cover TypeHinged
Cubic Capacity384 Cubic in
Depth0.039 in, 6 in
Depth (In)6.00
DescriptionBOX STEEL GRAY 8"L X 8"W
Description:Type 3R Hinge Cover - 8.
DesignHinged Door, Lid
Detailed DescriptionBox Metal, Steel Gray H.
Digi-Key Part NumberC3R886HCR-ND
Dimensions8 x 8 x 6 . ; 203 x 203.
Dimensions (H x W x D)8 x 8 x 6"
Door DesignHinged (Single Door)
Enclosure MountingPanel Mount
Enclosure SeriesC3R HCR SM
Estimated Weight8
Family SeriesHammond Manufacturing E.
FeaturesKnockouts, Snap Latch, .
FinishPainted/Powder Coated, .
Gross Weight8 lbs
Height8 in, 6.000" (152.40mm)
Height (In)8.00
IEC RatingIP24
Inner PanelNot Supported
IP RatingIP24
Item NumberC3R886HCR
Item TypeType 3R Painted Galvani.
Latching MechanismPadlockable Latch
Length0.314 in
LockPadlock
Locking FeatureLatch
Made in USANo
ManufacturerHammond Manufacturing C.
Manufacturer Part NumberC3R886HCR
Manufacturer Product Nu.C3R886HCR
Manufacturer Standard L.4 Weeks
MaterialSteel, Galvanized Steel.
Material Flammability R.-
MFG Part #:C3R886HCR
MfrHammond Manufacturing
MountingFeet, Wall
Mounting TypeWall
Nema Rating3R
NEMA Rating3R, NEMA 3R, NEMA 3R/IP.
NEMA Type3R
Net Weight8 lbs
Nominal Depth6 "
Nominal Height8 "
Nominal Width8 "
Number of Doors1
Options IncludedGasketed Cover, Knockou.
PackageBulk
Panel IncludedNo
Panel Size6-1/4 in H x 6-1/4 in W
Part NumberC3R886HCR
Product SeriesC3RHCR
Product StatusActive
RatingsIP24, NEMA 3R, UL-50
RoHSYes
SeriesC3R HCR SM, C3R HCR SM .
Shipping InfoShipped from Digi-Key
SizeSmall, 8 in x 8 in x 6 .
Size / Dimension8.000" L x 8.000" W (20.
Special FeaturesFormed and spot welded .
StandardCSA, UL
StandardsUL Recognized, CSA Cert.
Sub BrandC3R HCR SM Series
Supplier:Hammond Manufacturing
Thickness16 Gauge
TypeJunction Box, Wall Moun.
UPC623980361857, 062398036.
UPC Code623980361857
UPC:623980361857
Weight8 lbs (3.6 kg)
Width8 in, 0 in
Width (In)8.00
Window/Clear CoverNo
