Hubbell Wiring Device-Kellems HBL2311VBK

B00DAHYKMY

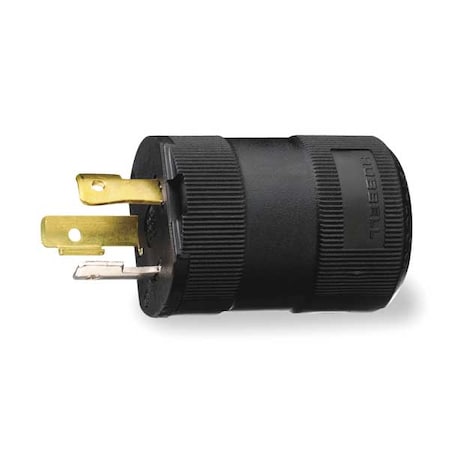

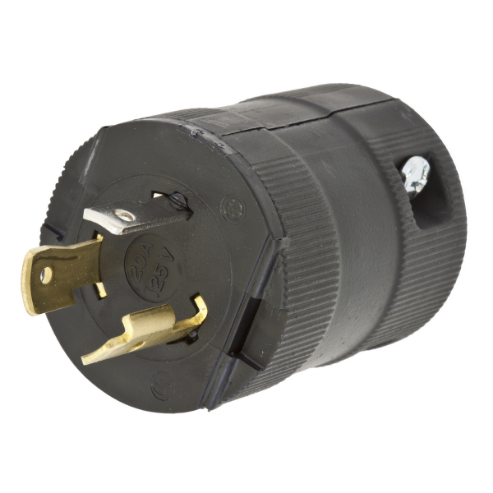

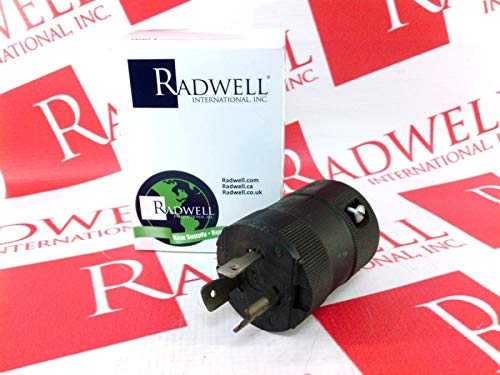

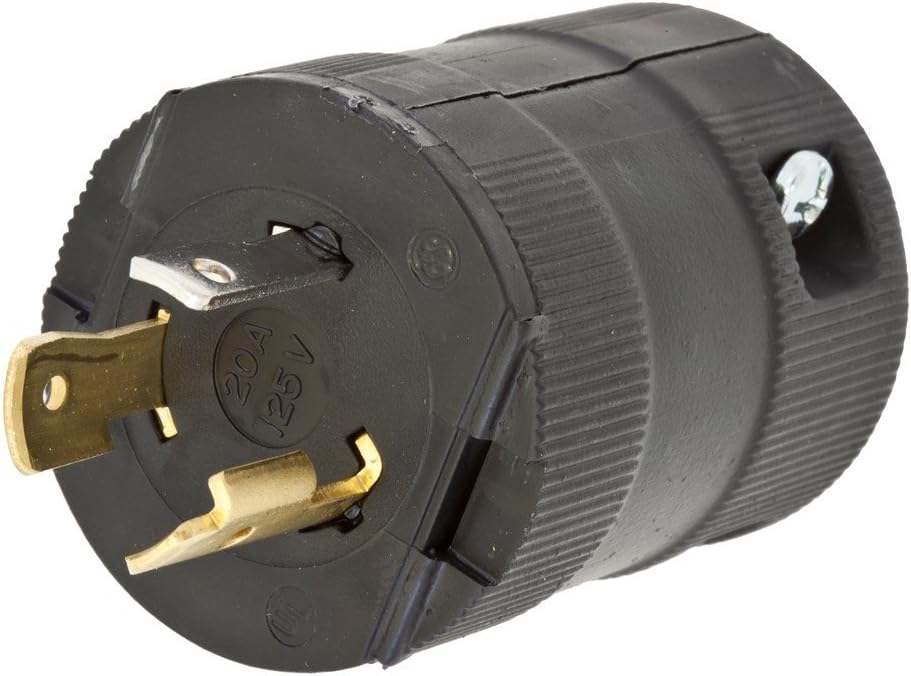

HBL2311VBK Plug, 125VAC, 20A, L5-20P, 2P, 3W, 1PH

HBL2311VBK Plug, 125VAC, 20A, L5-20P, 2P, 3W, 1PHzoom

Attributes

Key Value
Amperage20 A
Amperage Rating20A
Amps20
Amps - Plugs and Recept.20
AntimicrobialNo
ApplicationExtra Heavy Duty Indust.
ApprovalsCSA, UL
ASINB0137U3I9Y
AWG Range#18 AWG to #10 AWG
Batteries Required?No
Blade MaterialBrass
Body Length1.78 in
Body TypeStraight
BrandTwist-Lock
Cable range0.325 - 0.720 in
Cable Range0.325 - 0.720 in.
ColorBlack
Color - Plugs and Recep.Black
Color FamilyBlack
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Cord range0.325 in-0.720 in(8.26-.
Cord Size0.360 in to 0.930 in
Cord typeAll Listed Portables
Corrosion ResistantNo
Country of OriginUS - United States
Country of Origin (subj.United States
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Dielectric strengthWithstands 2,000V minim.
Dimensions1.78 in x 1.78 in x 2.5.
Display TypeStandard Sized
ECCNEAR99
Environmental conditionsIndoor Dry Unless Prote.
Face Diameter1.781 in
Family SeriesHubbell Plugs & Recepta.
For EnvironmentDry
For LocationIndoor
For Maximum Cable Diame.0.72 in
For Minimum Cable Diame.0.325 in
GradeIndustrial
Grade - Plugs and Recep.Industrial
Gross Weight0.2 lbs
GroundingGrounded
Height2.50 in, 2.5 in.
Horsepower Rating1 hp
Housing ColorBlack
Housing MaterialNylon
HP1.0
IP Rating20
Isolated GroundNo
ItemLocking Plug
Item - Plugs and Recept.Locking Plug
Item NumberHBL2311VBK
Item Package Quantity1
Length1.78 in., 1.78 in
ManufacturerHubbell
Manufacturer Part NumberHBL2311VBK
MarketIndustrial
MaterialNylon
Material - mounting har.Cord Mounted
Max HP1
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size18 AWG
NEMA ConfigurationL5-20P
NEMA Plug ConfigurationL5-20P
NEMA Plug Configuration.L5-20P
Nema RatingL5-20P
Net Weight0.2 lbs
No. of Poles2
No. of Wires3
Number of Blades3
Number of poles2-Pole
Number of Poles2
Number of Wires3
Number of wires3-Wire
Operating temperatureMaximum continuous 75C .
Overall Length1.78 in
Part NumberHBL2311VBK
Phase1, Single phase
PolarizedYes
Rated Voltage125V AC
Resistance PropertiesChemical Resistant, Imp.
ShroudedNo
Shrouded / Non-ShroudedNon-Shrouded
StandardCertified to CSA C22.2 .
StandardsUL/CSA
TypePlugs
UL 94 Flammability Rati.HB
UNSPSC39121402
UNSPSC Code39120000
Voltage125VAC, 125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC
Voltage rating descript.125 VAC
WatertightNo
Width1.78 in.
Width (in)1.78
Wire Connection TypeScrew Terminals
Wire size#18 AWG to #10 AWG
Wiring StyleHinged

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL2311VBK13.61240Hubbell Wiring Device-Kellems13.61 @ 2
thumbzoomZoroG262597113.691In StockHubbell0.313.69 @ 1
thumbzoomgordonelectricsupply.comHBL2311VBK14.791In StockHUBBELL14.79 @ 1
standardelectricsupply.com93258515.211In StockHubbell15.21 @ 1
thumbzoomMRO Supply102042415.213In StockHubbell Wiring15.21 @ 3
thumbzoomGalcoHBL2311VBK-HBBL15.661In StockHubbell0.215.66 @ 1
us.rs-online.com7198748416.651In StockHubbell Wiring Device-Kellems16.65 @ 1
thumbzoomsustainablesupply.comC119994718.791In StockHubbell0.318.79 @ 1
thumbzoomAmazonSCB0137U3I9Y19.01In StockHUBBELL19.0 @ 1
Graybar9609419619.02881In StockHubbell Wiring Device - Kellems19.0288 @ 1
AmazonTPB00DAHYKMY21.341In Stock3Hubbell Wiring Device-Kellems21.34 @ 1
thumbzoomRadwellHBL2311VBK22.014HUBBELL KELLEMS22.0 @ 1
thumbzoomNewark91F235024.51In StockHUBBELL WIRING DEVICES24.5 @ 1
thumbzoomRaptor SuppliesAD7YGF26.73818551In StockHUBBELL WIRING DEVICE-KELLEMS26.7381855 @ 1
kirbyrisk.com198788032.041In StockHubbell32.04 @ 1
