Leeson E110220.00

mpnE110220.00
brandname: LEESON
manufacturername: LEESON

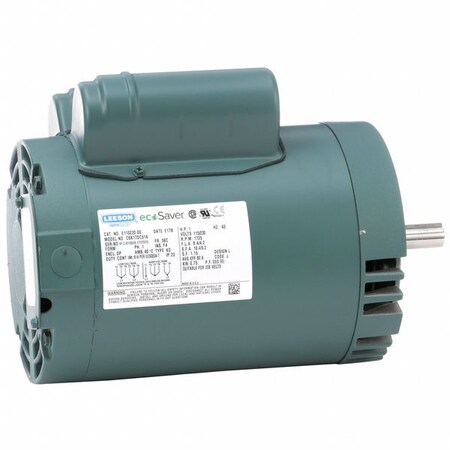

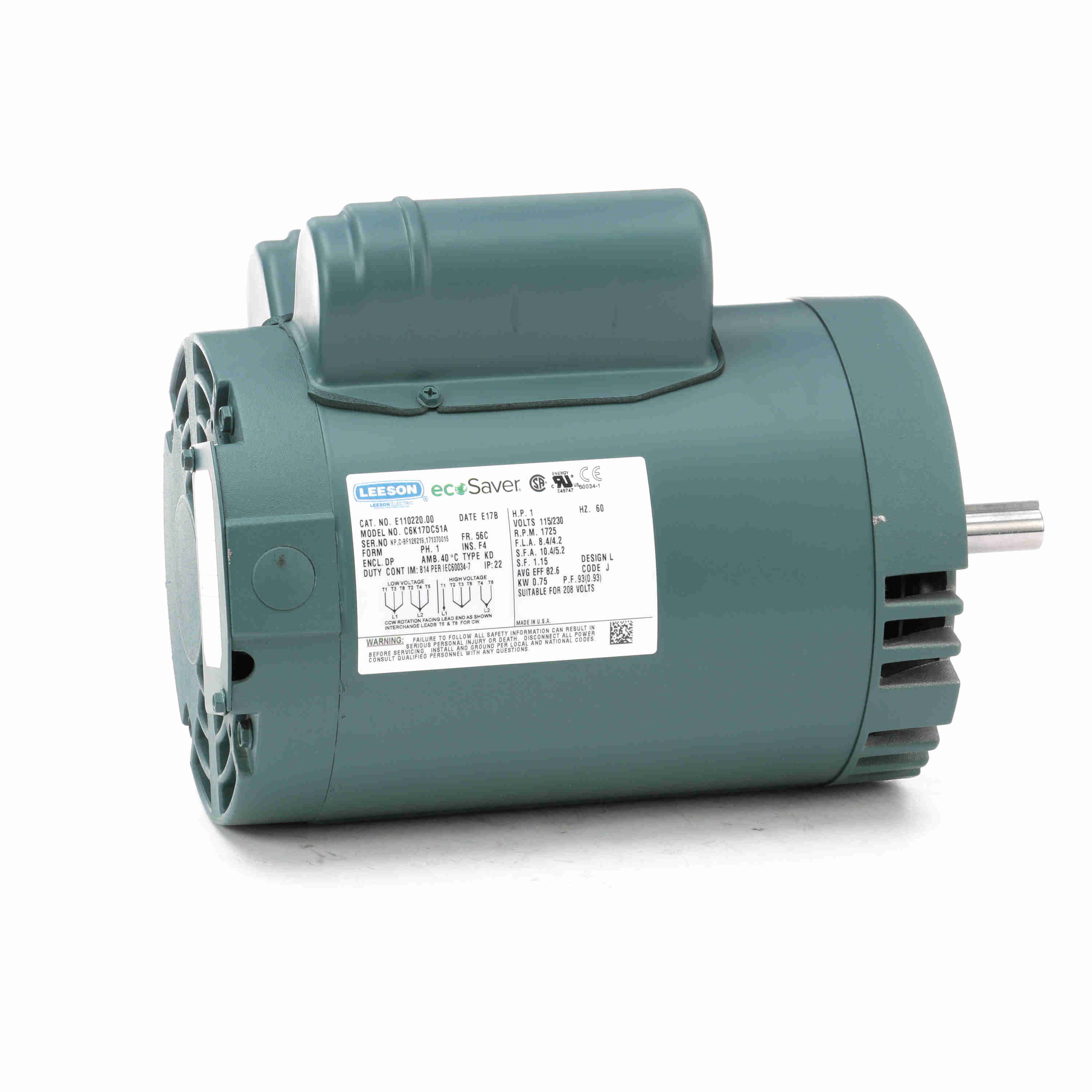

Leeson E110220.00 General Purpose Drip-Proof C Face Motor, 1 Phase, 56C Frame, Round Mounting, 1HP, 1800 RPM, 115/230V Voltage, 60Hz Fequency

Brand: Leeson
PartNumber: E110220.00
Model: E110220.00
Size: 1 Phase
PackageQuantity: 1
Binding: Misc.
Manufacturer: Leeson
Label: Leeson

Attributes

Key	Value
Amperage Rating	8.4/4.2 A
Application Type	General Purpose AC Moto.
Bearing Type	Ball
Category	Electric Motor
Composition	Steel
Country of Origin (subj.	United States
Description:	E110220.00..1HP..1725RP.
Dimensions	11.87 in L
Duty Cycle	Continuous
Efficiency %	82.6 %
Enclosure	ODP, Drip Proof
Enclosure Type	DP
Family Series	Leeson Motors
Frame	56C
Frame Remarks	FOOTLESS
Frequency	60 Hz
Frequency Rating	60 Hz
Full Load Amps	8.4/4.2
Gross Weight	0 lbs
Horsepower	1 hp
HP	1
Hz	60
Ins. Class	F
Insulation Class	Class F
Item	General Purpose Motors
Item Condition	FACTORY NEW
Item Number	E110220.00
Manufacturer	LEESON ELECTRIC CORPORA.
Manufacturer Part Number	E110220.00
Material	Rolled Steel
Max. Ambient Temp.	40 Degrees C
MFG Part #:	E110220.00
Motor Application	General Application
Motor Bearings	Ball
Motor Design	Capacitor-Start
Motor Enclosure Design	Open Dripproof
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face
Motor Service Factor	1.15
Motor Shaft Design	NEMA 56
Motor Shaft Rotation	CCW
Motor Thermal Protection	None
mounting	C-face (NO base)
Mounting Type	C-Face, Round/C-Face/Fo.
Nameplate RPM	1,725
NEMA Design	L
NEMA Frame	56C
Net Weight	0 lbs
No. of Speeds	1
Nominal Efficiency	82.6 %
Nominal Voltage	120 VAC, 240 VAC
Number of Speeds	1
Overall Length	11 7/8 in
Phase	1, Single, 1 ph
Promotion Restriction	Not eligible for promot.
Removable Base	Permanently Lubricated .
Rotation	Selective CCW
RPM	1800, 1,725 RPM
RPM Range	5400
Service Factor	1.15
Shaft Dia.	5/8 in
Shaft Size	0.63 in Dia x 1.88 in L
Special Features	Capacitor Start Motors
Standards	CSA, UL
Supplier:	LEESON ELECTRIC CORPORA.
UPC:	691720041352
Voltage	115/230V
Voltage (AC)	110-120 VAC, 230 VAC
Voltage Compatibility	115/230V AC
Volts	115/230
Weight	37.22 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
electricmotorwholesale.com	E110220	363.0	1	2		LEESON		363.0 @ 2
AmazonSC	B00EP2QT8Q	430.17	1	2		LEESON		430.17 @ 2
AmazonTP	B0773SPWT8	472.75	1	2	5	Leeson Electric		472.75 @ 2
Galco	E110220.00-LEES	621.17	1	2		Leeson		621.17 @ 2
Dealers Electric	E110220.00	654.91	1	2		Leeson	37.0	654.91 @ 2
Zoro	G207353906	732.1	1	2		Leeson	37.22	732.1 @ 2
cbtcompany.com	E110220.00	758.99	1	2		Leeson Electric		758.99 @ 2
kscdirect.com	LEE E110220.00	841.3	1	2		LEESON ELECTRIC CORPORATION		841.3 @ 2
factorysupplyoutlet.com	HR71EZ	864.72	1	2		LEESON		864.72 @ 2
Raptor Supplies	AJ2URW	981.9830475	1	2		LEESON		981.9830475 @ 2
