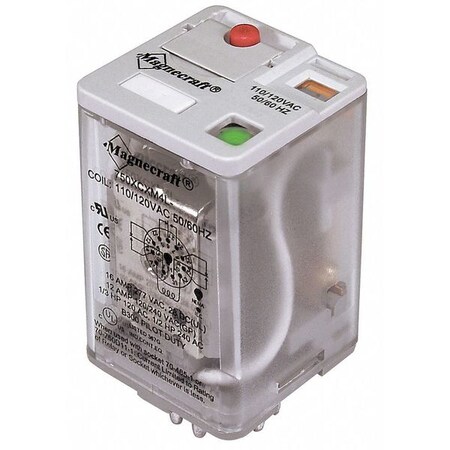

750XCXM4L-24D, Electromechanical Relay 24VDC 470Ohm 16A 3PDT (34.9x34.4x57.9) mm Socket Power Relay (2 Items)

750XCXM4L-24D, Electromechanical Relay 24VDC 470Ohm 16A 3PDT (34.9x34.4x57.9) mm Socket Power Relay (2 Items)

zoom

Brand: Magnecraft / Schneider
PartNumber: 750XCXM4L-24D
Model: 750XCXM4L-24D
Manufacturer: Magnecraft / Schneider
Label: Magnecraft / Schneider

Attributes

Key	Value
AC Contact Rating - Rel.	16A @ 277V
Alternate Mfr Part Numb.	P503014E
Alternate Part No.	528-750XC4-24D
Base Type	Octal
Base Type - Plug In Rel.	Octal
Body Depth - Relay	1.40 in
Body Height - Relay	2.20 in
Body Width - Relay	1.40 in
Brand	Magnecraft / Schneider .
Coil Resistance	470 Ohms, 470 Ohms @ 25.
Coil Termination	Plug Pin
Coil Type	Non-Latching
Coil Voltage	24 V
Coil Volts	24VDC
Contact Current Rating	12 A
Contact Form	3PDT, 3PDT (3 Form C)
Contact Form - Relay	3PDT
Contact Material	Silver Alloy, Gold Flas.
Contact Rating	16A @ 277VAC/28VDC
Contact Termination	Plug In
Control Voltage	24 VDC
Country of Origin (subj.	Unknown
Current Rating	16 A
DC Contact Rating - Rel.	16A @ 28V
Dielectric Rating	2500 V (RMS) (Coil to C.
Dimensions	2.28" (Ma x .) L x 1.37.
Features	Removable ID Tag
Function	General Purpose
HP @ 120V	1/3
HP @ 240V	1/2
Item	Plug-In Relay
Manufacturer	Schneider Electric
Manufacturer Part No.	750XCXM4L-24D
Maximum Operating Tempe.	65 ?C
Minimum Operating Tempe.	-40 ?C
Mounting Style	Socket
Mounting Type	Socket
Number of Pins	11 Pin
Number of Pins - Relay	11
On State Voltage Drop	10 V
Pins	11
Power Consumption	3 VA/1.4 W
Power Consumption - Rel.	3.0W
Product	Power Relays
Product Category	General Purpose Relays
Product Header	750 Series Octal Relay
Push To Test	Lockable
Relay Type	Electromechanical
Series	750H Hazardous Location.
Socket	Mfr. No. 70-465-1, 70-7.
Socket Code	B
Standards	UL ; CSA ; CE, UL Liste.
Status Indicator	LED and Mechanical Flag
Switching Voltage	300 V
Termination	11-Pin Octal
Termination Style	Plug Pin
Type	Push Test
Voltage Rating	300 VAC
