MEAN WELL RS-15-12

B017TIVS7Y

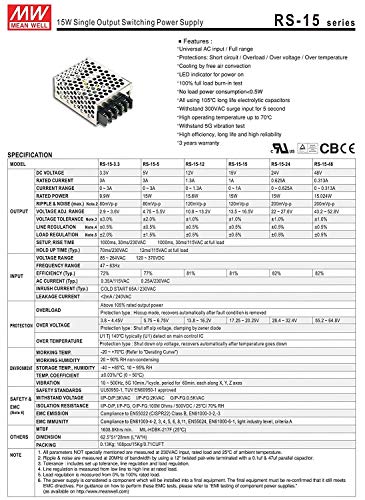

MW Mean Well RS-15-12 12V 1.3A 15.6W Single Output Switching Power Supply

MW Mean Well RS-15-12 12V 1.3A 15.6W Single Output Switching Power Supplyzoom

Attributes

Key Value
AC Current (Typ.)0.35A /115VAC 0.25A.
AC inrush currentCold start, 65A at 230V.
ApplicationsITE (Commercial)
Approval AgencyCB, CCC, CE, cURus, TUV
Base Product NumberRS-15
CategoryPower Supplies - Extern.
ConfigurationEnclosed, Cover Attached
Current - Output (Max)1.3A
Current - Output 11.3 A
DescriptionAC/DC CONVERTER 12V 16W
Detailed DescriptionEnclosed AC DC Converte.
Digi-Key Part Number1866-4128-ND
Dimension62.5 x 51 x 28mm (LxWxH)
Dimension (LxWxH)62.5x 51x 28
Dimensions62.5 x 51 x 28 mm, 2.46.
Efficiency81%
Efficiency (Typ.)72%
EMC ImmunityCompliance to EN61000-4.
EMC standardsEN55022 class B, EN6100.
FeaturesAdjustable Output, Univ.
Industry Aliasesnew
Input Output Terminal S.Screw
Input Voltage110 VAC ; 115 VAC ; 120.
Input Voltage Range100-264 VAC
Inrush Current (Typ.)COLD START 65A/230VAC
Isolation ResistanceI/P - O/P, I/P-FG, O/P-.
Lead Free Status / RoHS.RoHS Compliant
Leakage Current (Typ.)<2mA / 240VAC
Load Regulation?2.0%
ManufacturerMEAN WELL USA Inc.
Manufacturer Part NumberRS-15-12
Manufacturer Product Nu.RS-15-12
Manufacturer Standard L.14 Weeks, 16 Weeks
MfrMEAN WELL USA Inc.
Minimum Load RequiredNo
Mounting TypePanel Mount, Chassis Mo.
MTBF1608.8Khrs min. MIL-HDB.
Number of Outputs1
Operating Temperature-20?C ~ 70?C (With Dera.
OperationSwitching
Output Current1.3 A
Output Power15.6 W
Output Voltage12 VDC, 12V
Over Voltage3.8 ~ 4.45V
Overload protection>105%, hiccup mode
PackageBox
Packing0.13Kg; 108pcs / 15Kg /.
Power (Watts)16W
Primary TypeAC-DC
Product StatusActive
SeriesRS Series, RS-15 (15W),.
Setup, Rise Time1000ms, 30ms/230VAC .
Size / Dimension2.46" L x 2.01" W x 1.1.
Special Features3 Year Warranty
Standard Package108
Storage Temp., Humidity-40 ~ +85?C, 10 ~ 95% RH
Temp. Coefficient?0.03%/?C (0 ~ 50?C)
TypeEnclosed, Embedded
Vibration10~500Hz, 5G 10min. /1 .
Voltage - Input85 ~ 264 VAC, 120 ~ 370.
Voltage - Isolation3 kV, 3kV
Voltage - Output 112V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Voltage - Output 6-
Wattage15
Withstand VoltageI/P - O/P : 3KVAC .
Withstand voltageI/P - O/P: 3kVAC, I/P -.
Working Humidity20 ~ 90% RH non-condens.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomiodPartsRS-15-126.4150756MEAN WELL6.41 @ 50
Onlinecomponents.comRS-15-127.41In StockMEAN WELL7.4 @ 1
Future Electronics90100478.881470MEAN WELL8.88 @ 1
thumbzoompowersupplymall.comRS-15-129.6811416Mean Well9.68 @ 1
thumbzoompeaktopeakpower.comRS-15-129.91In StockMean Well9.9 @ 1
thumbzoomTMERS-15-1210.751In StockMEAN WELL10.75 @ 1
us.rs-online.com7006956011.8411063MEAN WELL11.84 @ 1
electricautomationnetwork.comRS-15-1212.291In StockMEANWELL12.29 @ 1
thumbzoomNewark44AC730612.711551MEAN WELL12.71 @ 1
thumbzoomDigi-Key770616313.03219036MEAN WELL USA Inc.13.032 @ 1
RS Delivers413-66717.4481886Mean Well17.448 @ 1
thumbzoomMisumi USARS-15-1222.251In StockMean Well22.25 @ 1
AmazonTPB07M6M15L751.721In Stock1Mean Well USA51.72 @ 1
thumbzoomebay.com_meanwellRS-15-12106.031In StockMEAN WELL106.03 @ 1
thumbzoomebay.com_lemona_electronicsRS-15-12110.721In StockMEAN WELL110.72 @ 1
thumbzoomebay.com_powersupplymallRS-15-12110.741In StockMEAN WELL110.74 @ 1
thumbzoomebay.com_xuemarket00RS-15-12117.081In StockMEAN WELL117.08 @ 1
thumbzoomebay.com_industrybestmenRS-15-12117.461In StockMEAN WELL117.46 @ 1
thumbzoomebay.com_supramachinetoolRS-15-12118.471In StockMEAN WELL118.47 @ 1
thumbzoomebay.com_howa2023RS-15-12119.971In StockMEAN WELL119.97 @ 1
thumbzoomebay.com_rab110RS-15-12119.991In StockMEAN WELL119.99 @ 1
thumbzoomebay.com_lelen-coRS-15-12121.991In StockMEAN WELL121.99 @ 1
