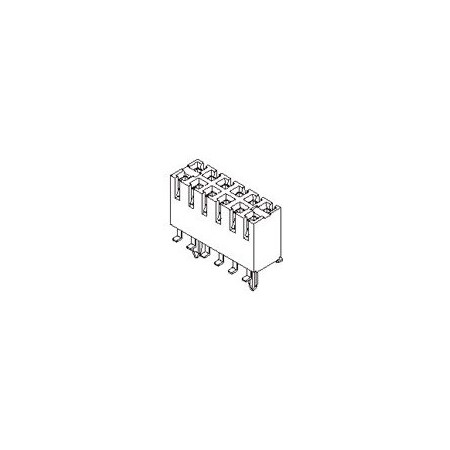

15-45-3114, 2.54mm Pitch C-Grid PCB Connector, Surface Mount, High Profile, Dual Row, Vertical, 14 Circuits (10 Items)

15-45-3114, 2.54mm Pitch C-Grid PCB Connector, Surface Mount, High Profile, Dual Row, Vertical, 14 Circuits (10 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.71395-1114
Amps - Plugs and Recept.2.5 A
AngleVertical
ApplicationBoard-to-Board ; Signal
ApplicationsAutomotive, General Pur.
Base Product Number001545
Body Material - Pin and.High Temperature Thermo.
CategoryConnectors, Interconnec.
ColorBlack
Color - Plugs and Recep.Black
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.74.8?in (1.90?m)
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating2.5 A
Current Rating (Amps)2.5A
DescriptionCONN RCPT 14POS 0.1 GOL.
Detailed Description14 Position Receptacle .
Digi-Key Part Number0015453114-ND
Family NameC-Grid
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.368" (9.35mm)
Insulation MaterialLiquid Crystal Polymer .
ManufacturerMolex
Manufacturer Product Nu.0015453114
Manufacturer Standard L.12 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeSurface Mount
Number of Circuits14
Number of Contacts14
Number of Positions14
Number of Positions Loa.All
Number of Rows2
Operating Temp. Range-40? to +105?C
Operating Temperature-40?C ~ 105?C
OrientationVertical
PackageTray
Pitch2.54 mm (0.100")
Pitch - Mating0.100" (2.54mm)
Plating MaterialGold
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
Series71395 Series, C-Grid 71.
StandardsCSA LR19980, UL E29179
StyleBoard to Board or Cable
Terminal ConnectionSurface Mount
TerminationSolder, Surface Mount
TypeReceptacle
Use WithBoard-to-Board, Signal
Voltage250V
Voltage Rating250VAC
