- mpnOA60EC-UR-1WBIP68A
- brandname: Orion (Knight Electronics, Inc.)
- manufacturername: Orion (Knight Electronics, Inc.)

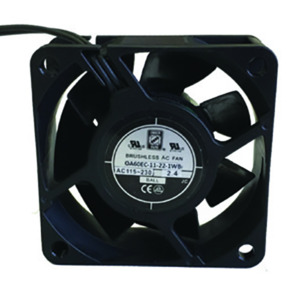

ORION FANS OA60EC-UR-1WBIP68A AC Fans Electronically Commutated (EC) Fan, 60x25mm, Universal Voltage 94-264VAC, 50/60Hz, 19.5CFM, 2.1/2.4W, 31dBA, 3950RPM, Ball Bearing, 2 Wire Leads, IP68 ATEX
- Brand: Orion Fans
- PartNumber: OA60EC-UR-1WBIP68A
- Manufacturer: ORION FANS
- Label: ORION FANS
Attributes
| Key | Value |
|---|
| Air Flow | 19.5 CFM, 19.5 CFM (0.5. |
| Approval Agency | ATEX, CE, cURus, UR |
| Approximate Size | 2.4 x 2.4 in. ; 60 x 60. |
| Approximate Thickness | 1 in. ; 25 mm |
| Base Product Number | OA60EC |
| Bearing Type | Dual Ball, Ball |
| Category | Fans, Thermal Management |
| Configuration | Square |
| Current Rating (Amps) | 0.050A |
| Description | FAN EC 60X25MM 95-264VA. |
| Detailed Description | Fan Tubeaxial 95 ~ 264V. |
| Digi-Key Part Number | 1053-1810-ND |
| Duty Type | Harsh Environment |
| Family Series | Orion Miscellaneous |
| Fan Type | Tubeaxial, AC |
| Features | Electronic Commutation . |
| Gross Weight | 0 lbs |
| Ingress Protection | IP68 - Dust Tight, Wate. |
| Item Number | OA60EC-UR-1WBIP68A |
| Lifetime @ Temp. | 50000 Hrs @ 40?C |
| Manufacturer | Orion Fans, Orion |
| Manufacturer Part Number | OA60EC-UR-1WBIP68A |
| Manufacturer Product Nu. | OA60EC-UR-1WBIP68A |
| Manufacturer Standard L. | 19 Weeks |
| Material - Blade | Polybutylene Terephthal. |
| Material - Frame | Polybutylene Terephthal. |
| Mfr | Orion Fans |
| Net Weight | 0 lbs |
| Noise | 31.0dB |
| Noise Level | 31 dB |
| Operating Temperature | -4 ~ 158?F (-20 ~ 70?C) |
| Package | Box |
| Power (Watts) | 2.40W |
| Product Status | Active |
| RPM | 3950 RPM |
| Series | OA60EC, OA60EC Series |
| Size / Dimension | Square - 60mm L x 60mm H |
| Static Pressure | 0.170 in H2O (42.3 Pa) |
| Termination | 2 Wire Leads, Wire Leads |
| Voltage - Rated | 95 ~ 264VAC |
| Voltage Range | - |
| Voltage Rating | 115 ; 230 V |
| Weight | 0.133 lb (60.33 g) |
| Width | 25.00mm |
