- mpnLCA4/0-12F-X
- brandname: Panduit Corp
- manufacturername: Panduit Corp

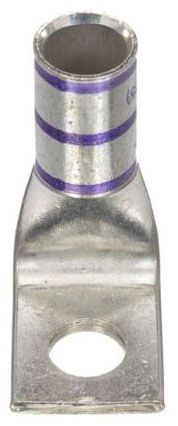

Panduit LCA4/0-12F-X Code Conductor Lug, One-Hole, Standard Barrel with Window, 90 Degree Angle, 4/0 AWG Copper Conductor Size, 1/2" Stud Hole
- Brand: Panduit
- PartNumber: LCA4/0-12F-X
- Model: LCA4/0-12F-X
- Color: Purple
- Size: Conductor Size/Range 1 350kcmil
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 4/0 |
| Approvals | CSA, UL |
| Barrel Type | Standard |
| Base Product Number | LCA4 |
| Brand | Panduit |
| Cable Size | 4/0 AWG |
| Catalog Number | LCA4/0-12F-X |
| Category | Connectors, Interconnec. |
| Color | Purple |
| Color Code | Purple |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN TERM RECT TONG 4/0. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | 0.570" (14.48mm) |
| Diameter - Barrel OD | 0.710" (18.03mm) |
| Diameter - Ring ID | 0.530" (13.46mm) |
| Digi-Key Part Number | 298-14661-ND |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Gross Weight | 1.4 lbs |
| GTIN | 00074983559459 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCA4/0-12F-X |
| Item Type | Copper Compression Conn. |
| Length | 2.07" |
| Length - Overall | - |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCA4/0-12F-X |
| Manufacturer Product Nu. | LCA4/0-12F-X |
| Manufacturer Standard L. | 2 Weeks |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 4/0 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 4/0 AWG |
| Mounting | 1.25, 1-Hole |
| Mounting Type | Free Hanging (In-Line),. |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Package | Bulk |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Size | 4/0 AWG Code |
| Special Features | Consult cable manufactu. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Stud Size | 42.767, 1/2 in |
| Stud/Tab Size | 1/2 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.140" (3.56mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| UPC | 074983559459 |
| UPC Code | 074983559459 |
| Width | 1.06" |
| Width - Outer Edges | 1.060" (26.92mm) |
| Wire Gauge | 4/0 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCA4/0-12F-X | 9.03 | 1 | In Stock | | PANDUIT | | 9.03 @ 1 |
 | NEP Electronics | LCA4/0-12F-X | 14.0 | 1 | 10 | | Panduit | | 14.0 @ 1 |
| Arrow | LCA4/0-12F-X | 14.81 | 1 | 14 | | Panduit | | 14.81 @ 1 |
| Radwell | LCA4012FX | 15.1 | 100 | In Stock | | PANDUIT | | 15.1 @ 100 |
 | Digi-Key | 4564389 | 16.26 | 1 | In Stock | | Panduit Corp | | 16.26 @ 1 |
 | Newark | 40P2448 | 17.33 | 1 | In Stock | | PANDUIT | | 17.33 @ 1 |
 | Zoro | G0771613 | 18.36 | 1 | In Stock | 15 | Panduit | 1.41 | 18.36 @ 1 |
| Mouser | 644-LCA4/0-12F-X | 18.41 | 1 | 6 | | Panduit | | 18.41 @ 1 |
 | Galco | LCA4/0-12F-X-PNDT | 20.06 | 10 | In Stock | | Panduit | 1.4 | 20.06 @ 10 |
 | Platt.com | 0171599 | 21.34 | 1 | In Stock | | Panduit | | 21.34 @ 1 |
 | crescentelectric.com | 52447 | 22.83 | 1 | In Stock | | Panduit | | 22.83 @ 1 |
| us.rs-online.com | 71263423 | 24.12 | 10 | In Stock | | Panduit | | 24.12 @ 10 |
| Airline Hydraulics | PANDUIT LCA4/0-12F-X | 24.17 | 1 | In Stock | | Panduit Corp | | 24.17 @ 1 |
 | Carlton Bates Company | 07498355945 | 180.1 | 1 | In Stock | | PANDUIT | | 180.1 @ 1 |
 | gordonelectricsupply.com | LCA4/0-12F-X | 211.0 | 1 | In Stock | 12 | PANDUIT | | 211.0 @ 1 |
| steinerelectric.com | 313857 | 2354.14 | 1 | In Stock | | Panduit | | 2354.14 @ 1 |
 | turtle.com | PAN LCA4/0-12F-X | 2363.38 | 1 | In Stock | | Panduit | | 2363.38 @ 1 |
