Schneider Electric DPE25U7

mpnDPE25U7
brandname: Schneider Electric
manufacturername: Schneider Electric

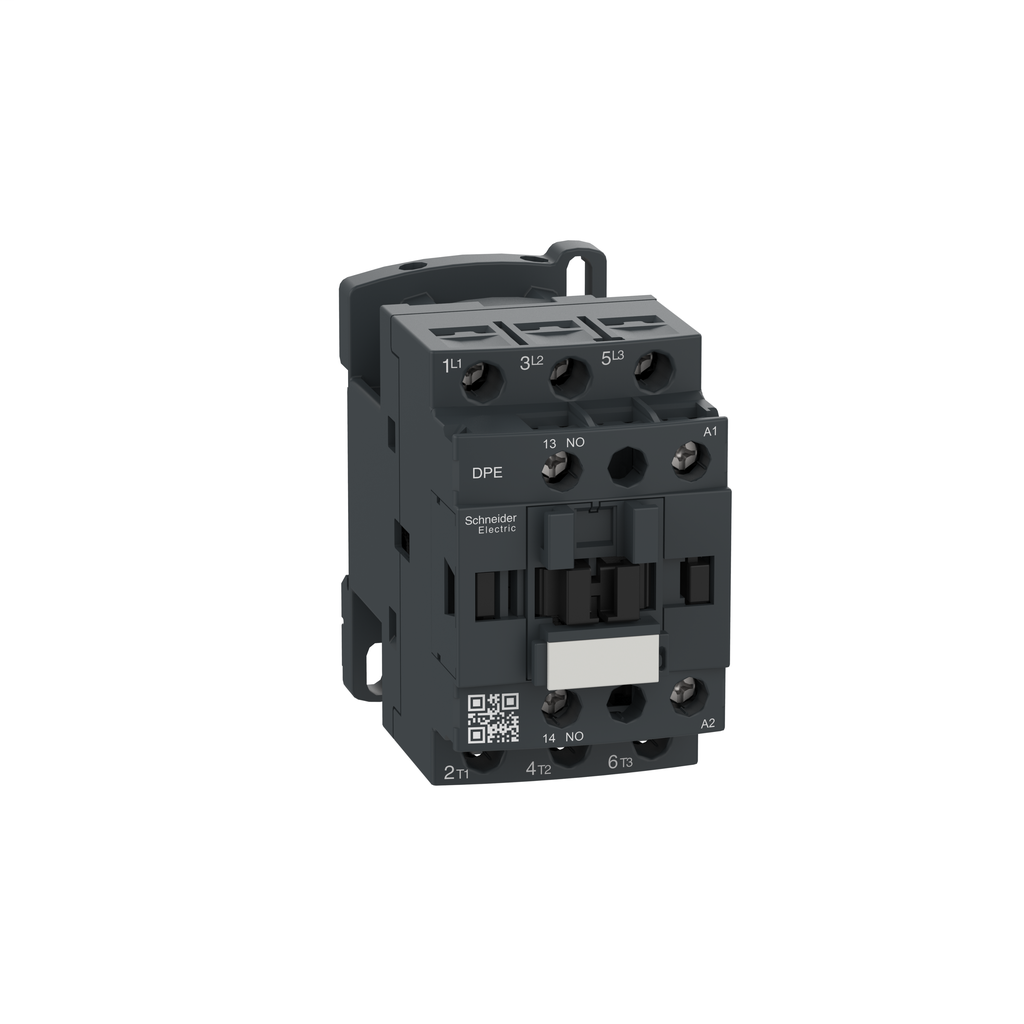

Schneider Electric - DPE25U7 Easy TeSys IEC Contactor, 10HP, 480V, 240VAC Coil, DIN Mount/Screw Fixing

Brand: Schneider Electric
PartNumber: DPE25U7
Model: DPE25U7
Size: 10HP 460V
PackageQuantity: 1
Binding: Misc.
Manufacturer: Schneider Electric
Label: Schneider Electric

Attributes

Key	Value
Application	Motor Control, Resistiv.
Aux. Contact Configurat.	1NO
Auxiliary Contact	1 NO
Brand	Schneider Electric
Catalog Number	DPE25U7
Category	Relays
Coil Power	-
Coil Resistance	-
Coil Voltage	240VAC, 240 V AC 50/60 .
Coil Volts	240 V AC
Connection	Power circuit screw cla.
Contact Configuration	1 NO;3 NO;Mechanically .
Contact Form	3PST-NO (3 Form A)
Contact Material	-
Contact Rating (Current)	25 A
Continuous Current	32 A
Continuous Current (A)	25
Country of Origin	Indonesia, 00 - Unknown
Depth	3.39 in
ECCN	EAR99
Enclosure NEMA Rating	3R; 4
Features	Auxiliary Contacts, Wit.
Frame / Series / Class .	TeSys
Full Load Amps-Inductive	25 A
Full Load Amps-Resistive	25 A
Height	92 mm, 3.03 in
Horsepower, Max, 1 Phas.	3
Horsepower, Max, 3 Phas.	5
Horsepower, Max, 3 Phas.	5
Horsepower, Max, 3 Phas.	10
Horsepower, Max, 3 Phas.	15
HP @ 1 Phase - 120V	1 hp
HP @ 1 Phase - 240V	3 hp
HP @ 3 Phase - 208V	5 hp
HP @ 3 Phase - 240V	5 hp
HP @ 3 Phase - 480V	10 hp
HP @ 3 Phase - 575V	15 hp
Hz	50/60 Hz
Item	Easy TeSys
Item Type	Contactor
Length	85 mm
Made in USA	No
Manufacturer	Schneider Electric
Mfr	Schneider Electric
Mounting	Rail Plate
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	204 VAC
Must Release Voltage	72 VAC
Number of Poles	3
Operate Time	22 ms
Operating Temperature	-40?C ~ 60?C
Package	Box
Part Status	Active
Phase	Single, Three
Release Time	19 ms
Reversing	No
Series	-
Single Phase Horsepower	115V - 1, 230V-240V - 3
Special Features	Overvoltage Category II.
Standard	UL;CSA
Standards	CSA, CSA C22.2 No 14, E.
Sub Brand	Easy TeSys DPE;DPE
Switching Voltage	690VAC, 300VDC - Max
Termination Style	Screw Terminal
Three Phase Horsepower	200V-208V - 5, 230V-240.
UNSPSC	39121529
Weight	0.73 lbs
Width	1.77 in, 0 mm
Working Height	Up to 6561.68 ft

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
gordonelectricsupply.com	DPE25U7	38.7	1	In Stock	10	SQUARE D		38.7 @ 1
standardelectricsupply.com	2392249	38.7	1	In Stock		Square D (Schneider Electric)		38.7 @ 1
us.rs-online.com	72299384	47.73	1	3		Schneider Electric	0.73	47.73 @ 1
Graybar	26522279	49.8512	1	2		Square D (Schneider Electric)		49.8512 @ 1
Zoro	G803481096	52.29	1	In Stock	10	Schneider Electric	0.92	52.29 @ 1
Digi-Key	15858479	53.02	500	60		Schneider Electric		53.02 @ 1
crescentelectric.com	1296647	57.59	1	In Stock		Schneider Electric		57.59 @ 1
Newark	43AJ7108	75.93	1	6		SCHNEIDER ELECTRIC		75.93 @ 1
