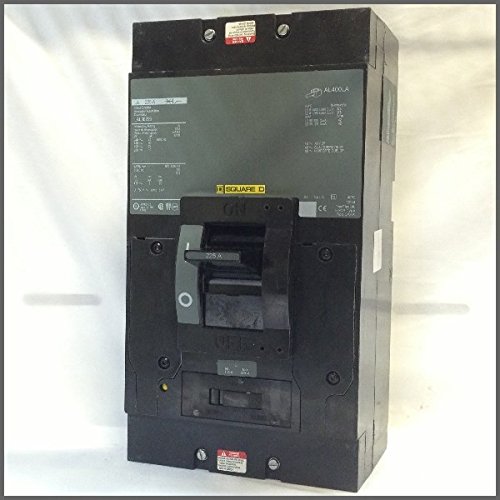

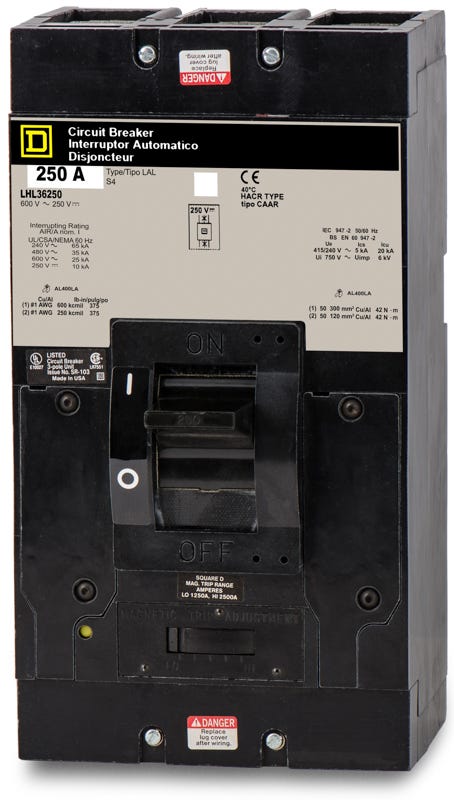

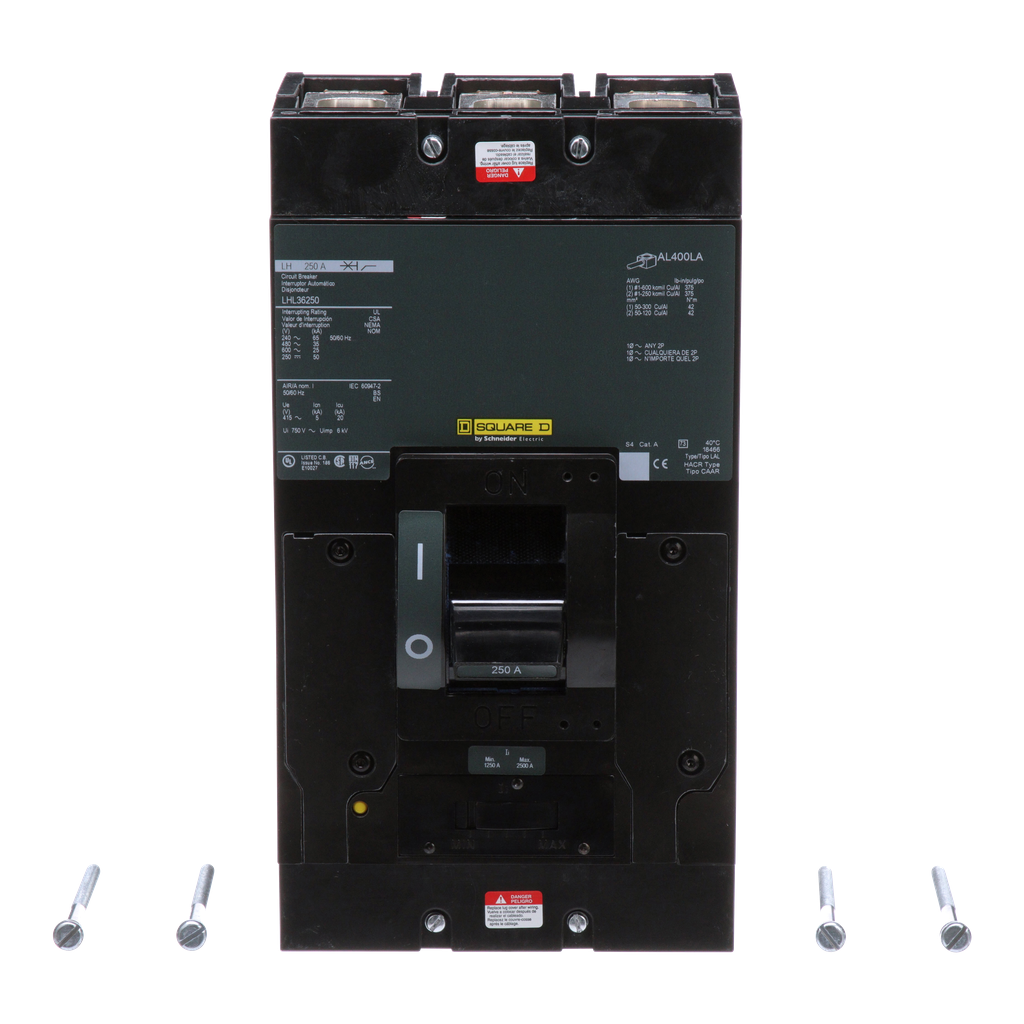

Square D LHL36250

B00KXK3CGG

LHL36250

LHL36250zoom

Attributes

Key Value
AC Voltage Rating600V AC
Amperage250A
Amperage (Molded Case B.250 Amp
Amperage Rating250
Amps250 A
ApprovalUL Listed, CE and CSA C.
BrandSquare D, Square D by S.
Breaking Capacity CodeH
California Proposition .DINP, which is known to.
Catalog NumberLHL36250
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeHigh Interrupting Capac.
Circularity ProfileN/A
ComponentMolded Case Circuit Bre.
ConnectionLugs load;lugs line
Country of OriginMexico
DC Voltage Rating250V DC
Depth5.84 in
DisplayLHL36250 Circuit breake.
Electrical Connectionlugs, load || lugs, line
Environmental DisclosureENVPEP1410004EN
Eu Rohs DirectiveCompliant with Exemptio.
FrameH
Frame Size400A/LA
Frame Type (Molded Case.LH Frame
Gtin785901339366
Halogen Content Perform.Halogen free plastic pa.
Height11 in, 11.0
Height UOMInch
High Amp Trip Setting2,500 A
Instantaneous TripInstantaneous
Interrupt Rating250 V DC-600 V AC,65 KA.
Interrupt Rating (Molde.50 kA 250 Volt, 25 kA 6.
ItemMolded Case Circuit Bre.
Item Typecircuit breaker
Length5.84
Length UOMInch
Line Rated Current250 A
Low Amp Trip Setting1,250 A
Made in USANo
Magnetic Hold Current1250 A
Magnetic Tripping Curre.2500-2500 A
ManufacturerSquare D, Schneider Ele.
Max. AIR Rating65 kA at 240V AC, 65kA .
Max. Wire Size250 MCM, 600 MCM
Maximum Voltage (Molded.250 VDC, 600 VAC
Mercury FreeYes
Min. Wire Size1/0 AWG
MountingFree Standing
Mounting (Molded Case B.unit mount
Mounting Modeunit mount
Mounting TypePlug-On
MpnLHL36250
Number of Poles3
Phase3, Three
Phase ConnectionABC
Poles3
Poles (Molded Case Brea.Three Pole
Poles Description3P
Product CertificationsCSA || UL Listed || IEC
Product Or Component Ty.circuit breaker
Pvc FreeYes
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesLHL
Special Featuresunit mount
StandardCSA-UL LISTED-IEC
StandardsCSA, IEC, UL Listed, CS.
Sustainable Offer StatusGreen Premium product
Terminal ConnectionLine/Load Lug
Terminal IdentifierAL400LA
Tightening Torque13-13 N.m 42-304 mm? (A.
Trip Range1250 A,250 A,2500 A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
Upc785901339366
UPC785901339366
Voltage600
Voltage Rating600 V AC-250 V DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width6.0, 6 in
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG7CXL4.4694122SQUARE D4.4694 @ 1
simplybreakers.comLHL362502273.991In StockSchneider Electric2273.99 @ 1
thumbzoomsuperbreakers.comLHL362503623.1413Square D3623.14 @ 1
AmazonTPB009OY6EYY4231.61221SQUARE D4231.6 @ 1
thumbzoomZoroG67236745235.87122Square D15.555235.87 @ 1
standardelectricsupply.com24052726232.421In StockSchneider Electric6232.42 @ 1
thumbzoommayerelectric.comSQDLHL362506574.811In StockSQUARE D6574.81 @ 1
thumbzoomgordonelectricsupply.comLHL362506665.012210SQUARE D6665.0 @ 1
Newark16B5246830.611In StockSQUARE D BY SCHNEIDER ELECTRIC6830.61 @ 1
thumbzoomRadwellLHL362506950.0122SCHNEIDER ELECTRIC SQUARE D6950.0 @ 1
thumbzoomcrescentelectric.com2050927480.06122Square D by Schneider Electric7480.06 @ 1
Grainger5B9227528.012216SQUARE D7528.0 @ 1
rspsupply.comSCHNEIDER LHL362508277.931In StockSchneider Electric8277.93 @ 1
steinerelectric.com977748376.3122Square D?8376.3 @ 1
thumbzoomsustainablesupply.comC12039828400.88122Square D15.558400.88 @ 1
grainger.caSQDLHL362508987.08956932122SQUARE D15.08987.08956932 @ 1
