Square D 9007FTUB5

B00CONO93U

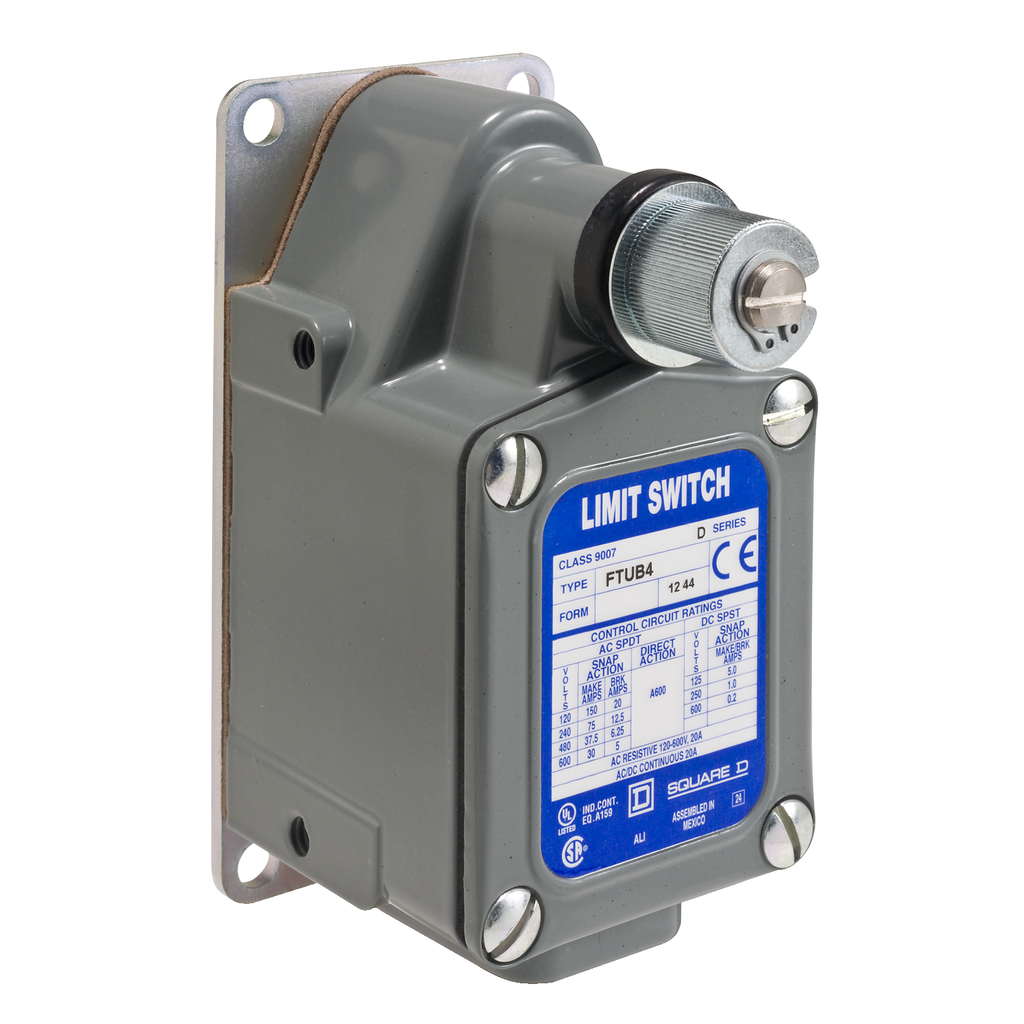

Square D 9007FT NEMA Limit Switch, Universal Style, for Foundry Casting, Base Plate w/End Mounting Holes, SPDT, CCW Action, Spring Ret, No Neutral, 1/2"-14 NPT, Heavy Duty Contacts

Square D 9007FT NEMA Limit Switch, Universal Style, for Foundry Casting, Base Plate w/End Mounting Holes, SPDT, CCW Action, Spring Ret, No Neutral, 1/2"-14 NPT, Heavy Duty Contactszoom

Attributes

Key Value
[Ithe] Conventional Enc.20 A
[Ui] Rated Insulation V.600 V 3)IEC 609470-1 ||.
[Uimp] Rated Impulse Wi.2.5 kV AC for 1 minute .
Actuator TypeSide Rotary - No Lever
Ambient Air Temperature.-10-185 ?F
Ambient Air Temperature.-10-185 ?F
Base Plate Stylestyle B
Body Materialcast zinc
Body Typefixed
Cable Entry1 entry for 1/2" - 14 N.
California Proposition .Diisononyl phthalate (D.
CategorySwitches
Contact Code DesignationA600, AC (Ue = 600 V) I.
Contact FormForm Z
Contact Operationsnap action
Contact Sequence Number5
Contacts Materialsilver flashed copper
Country of Origin00 - Unknown
Current Rating (Amps)20A (AC), 5A (DC)
Depth3.41 in
Device Applicationuniversal foundry switch
Device Short Name9007T/FT
Differential Travel-
ECCNEAR99
Electrical Connectionscrew-clamp terminals A.
Electrical Life-
Electrical Shock Protec.class 0 IEC 61140
Environmental DisclosureENVPEP111160EN
Eu Rohs DirectivePro-active compliance (.
Features-
Fixing Modeby the body
Head Typerotary head
Height4.66-4.66 in
Ingress ProtectionIP67 - Dust Tight, Wate.
Ip Degree Of ProtectionIP67 conforming to IEC .
Maximum Actuation Speed130 ft/min with 30? cam.
Maximum Displacement An.88 ?
Mechanical Life-
Mercury FreeYes
MfrSchneider Electric
Minimum Torque For Trip.12 lbf.in
Mounting TypeChassis Mount
Movement Of Operating H.rotary
Nema Degree Of Protecti.NEMA 1 Nema type 250 ||.
Net Weight2.5 lb(US)
Number Of Poles1
Operating Force-
Operating Position-
Operating Temperature-23?C ~ 85?C
Overtravel-
PackageBox
Positive Openingwithout
Pretravel-
Product Or Component Ty.limit switch
Product StatusActive
Protective Treatmentcorrosion resistant gra.
Range Of Product9007
Reach RegulationReference contains Subs.
Release Force-
Repeat Accuracy+/- 0.004 in linear tra.
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.1
Series-
Series Namesevere duty foundry
Shock Resistance30 gn 9 ms IEC 60068-2-.
Short-Circuit Protection20 A Bussmann class CC .
Sustainable Offer StatusGreen Premium product
Switch Actuationfrom right || CCW
Switch FunctionSPDT-DB, On-Mom
Terminals Description I.A (left side contact) |.
Termination StyleScrew Terminal
Tripping Angle14 ?
Type Of Approachlateral approach
Type Of Operatorspring return without o.
UNSPSC39122213
Vibration Resistance10 gn 10-55 Hz)IEC 6006.
Voltage Rating - AC120 V
Voltage Rating - DC120 V
Warranty18 months
Width2.25 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.com9007FTUB5510.01In Stock10SQUARE D510.0 @ 1
Digi-Key16566957587.191In StockSchneider Electric587.19 @ 1
thumbzoommayerelectric.comSQD9007FTUB5667.071In StockSQUARE D2.5667.07 @ 1
thumbzoommostelectric.com9007FTUB5677.5115SQUARE D/TELEMECANIQUE677.51 @ 1
Graybar882492141093.29921In StockSquare D (Schneider Electric)1093.2992 @ 1
