Schneider Electric PGL36060U44A

B00CONAKC4

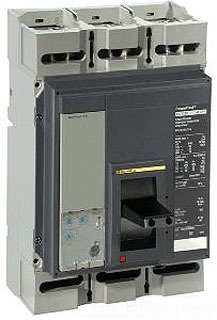

SCHNEIDER ELECTRIC Molded Case Circuit Breaker 600-Volt 600A PGL36060U44A Terminal Shroud Top Or Bottom 600-800A

SCHNEIDER ELECTRIC Molded Case Circuit Breaker 600-Volt 600A PGL36060U44A Terminal Shroud Top Or Bottom 600-800Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 240 V AC 50/60 Hz.
[Ue] Rated Operational .600 V AC 50/60 Hz UL 489
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
ApplicationDistribution
Awg Gauge3 x AWG 3/0...3 x 500 k.
BrandSquare D by Schneider E.
Breaking CapacityAIR 65 kA 240 V AC 50/6.
Breaking Capacity CodeG
California Proposition .DINP, which is known to.
Catalog NumberPGL36060U44A
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1407012EN
ConnectionLugs load;lugs line; 3 .
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States
Depth8.05 in
Device ApplicationDistribution
Electrical Connectionlugs load || lugs line
Environmental DisclosureENVPEP1407012EN
Eu Rohs DirectiveCompliant
FrameP-FRAME
Height12.86 in, 12.86
Height UOMInch
Interrupt Rating600 V AC,65 KA 240 V AC.
Ip Degree Of Protectionfront cover IP40
Item TypeCircuit breaker
Length8.05
Length UOMInch
Line Rated Current600-600 A
Local Signallingoverload 1 1 LED amber).
Long Time Pick-Up Adjus.0.4...1 x Ir
Made in USAYes
ManufacturerSchneider Electric
Mercury FreeYes
Net Weight32 lb(US)
Network Frequency50/60 Hz
Number of Poles3
Number Of Slots2 auxiliary switch OF p.
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact P
Product Or Component Ty.Circuit breaker
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Special FeaturesUNIT MOUNT
StandardsUL || CSA || NEMA || NO.
Sustainable Offer StatusGreen Premium product
Terminal IdentifierAL800M23K
Tightening Torque50-50 N.m 95-240 mm? (3.
Trip TypeElectronic, ammeter, Mi.
Trip Unit NameMicrologic 6.0 A
Trip Unit TechnologyElectronic, ammeter, Mi.
UPC785901863656
Voltage Rating600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width8.27 in, 8.27
Width UOMInch
Wire Stripping Length25 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comPGL36060U44A16590.01In Stock10SQUARE D16590.0 @ 1
thumbzoomcrescentelectric.com27922716928.851In StockSquare D by Schneider Electric16928.85 @ 1
thumbzoomRadwellPGL36060U44A17250.01In StockSCHNEIDER ELECTRIC SQUARE D17250.0 @ 1
thumbzoommayerelectric.comSQDPGL36060U44A18099.551In StockSQUARE D32.018099.55 @ 1
