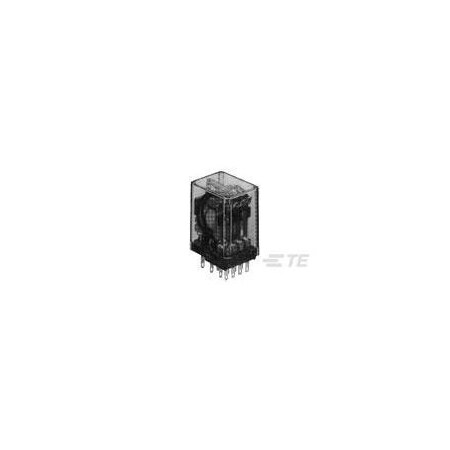

TE Connectivity 4-1393123-1

B00KSPN0M2

TE Connectivity Part Number 4-1393123-1

TE Connectivity Part Number 4-1393123-1zoom

Attributes

Key Value
Actuator TypeToggle .
Alternate Mfr Part Numb.4-1393123-1
Alternate Part No.655-KHU-17D11-24
Base Product NumberKHU
BrandTE Connectivity / P&B
carry current3 a
carry voltage120 v
CategoryRelays
Coil Current37.5 mA
Coil InsulationClass B
Coil Magnetic SystemMonostable, DC
Coil Power Rating Class800 to 1000 mW
Coil Resistance690 Ohms
Coil Special FeaturesUL Coil Insulation Clas.
Coil TerminationSolder Lug
Coil TypeNon-Latching, Non Latch.
Coil Voltage24 v, 24VDC, 24 VDC
coil voltage dc24 v
Coil Voltage Rating24 VDC
Contact Arrangement4 Form C (CO)
Contact Current Class16 A, 2 to 5 A
Contact Current Rating2.5 A, 3 a
Contact FormDPDT, 4PDT (4 Form C)
Contact MaterialSilver, Ag, Silver (Ag)
Contact Number of Poles4
Contact Rating (Current)3 a
Contact Switching Load .100mA @ 12V
Contact TerminationPin
Contact Voltage Rating300 VAC, 240 VAC
Control Voltage24
Current Rating3 a, 30 A .
DescriptionRELAY GEN PURPOSE 4PDT .
Detailed DescriptionGeneral Purpose Relay 4.
Digi-Key Part NumberPB606-ND
Dimensions1.111 L x 0.858 W x 1.3.
Environmental Ambient T.70?C
Environmental Ambient T.50 to 70?C
Environmental Category .RTI
Features-
FunctionGeneral Purpose
Height32.5 mm
Height Class (Mechanica.30 to 40 mm
Insulation Initial Diel.1500 Vrms
Insulation Initial Diel.1000 to 1500 V
Insulation Initial Diel.1000 Vrms
Insulation Initial Resi.100 M?
item per pack1
Length28.2 mm
Length Class (Mechanica.25 to 30 mm
ManufacturerTE Connectivity, TE Con.
Manufacturer Part No.KHU-17D11-24
Manufacturer Product Nu.KHU-17D11-24
Manufacturer Standard L.19 Weeks
MfrTE Connectivity Potter .
Mounting StyleThrough Hole
Mounting TypeSocket Mount, Socketabl.
Must Operate Voltage18 VDC
Must Release Voltage-
Number of Poles2 .
Operate Time13 ms
Operating Temperature-45?C ~ 70?C
packageBULK
PackageTray
Part # Aliases4-1393123-1
Power Consumption850 mW
Power Relay TypeIndustrial Panel Plug-In
Primary TypePower Relays
ProductPower Relays
Product CategoryGeneral Purpose Relays
Product HeaderKHU Series General Purp.
Product Height1.5 in
Product Length1.111 in
Product StatusActive
Product TypeCircuit Breaker .
Product Width.858 in
Relay TypeElectromechanical, Gene.
Release Time6 ms
Seal Rating-
SeriesKHU, KHU Series
StandardsUL ; CSA
switch function4pdt
Switching Voltage240VAC - Max
TerminationPlug-In
Termination StyleSolder Lug, Plug In
TypeStandard
Voltage Rating240 V
Width21.8 mm
Width Class (Mechanical)20 to 25 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsKHU-17D11-246.4977112Potter & Brumfield6.49771 @ 2
thumbzoomComponent Electronics710-24V-1677.6912Potter & Brumfield7.69 @ 2
Onlinecomponents.com4-1393123-18.751493TE Connectivity / AMP Brand8.75 @ 2
Allied Electronics7121060014.47150TE Connectivity14.47 @ 2
AmazonB00DDDX0XK15.312Potter & Brumfield15.3 @ 2
ArrowKHU-17D11-2417.459122TE Connectivity17.459 @ 2
AmazonTPB00KQBW1YG19.6122TE CONNECTIVITY / POTTER & BRUMFIELD19.6 @ 2
thumbzoomTedss203400075319.9912TE CONNECTIVITY POTTER & BRUMFIELD19.99 @ 2
thumbzoomswatee.comKHU-17D11-2420.78159TE Connectivity20.78 @ 2
us.rs-online.com7019895122.381In StockTE Connectivity22.38 @ 2
Newark36AC409924.1212AMP - TE CONNECTIVITY24.12 @ 2
thumbzoomDigi-Key67823926.85612TE Connectivity Potter & Brumfield Relays26.856 @ 2

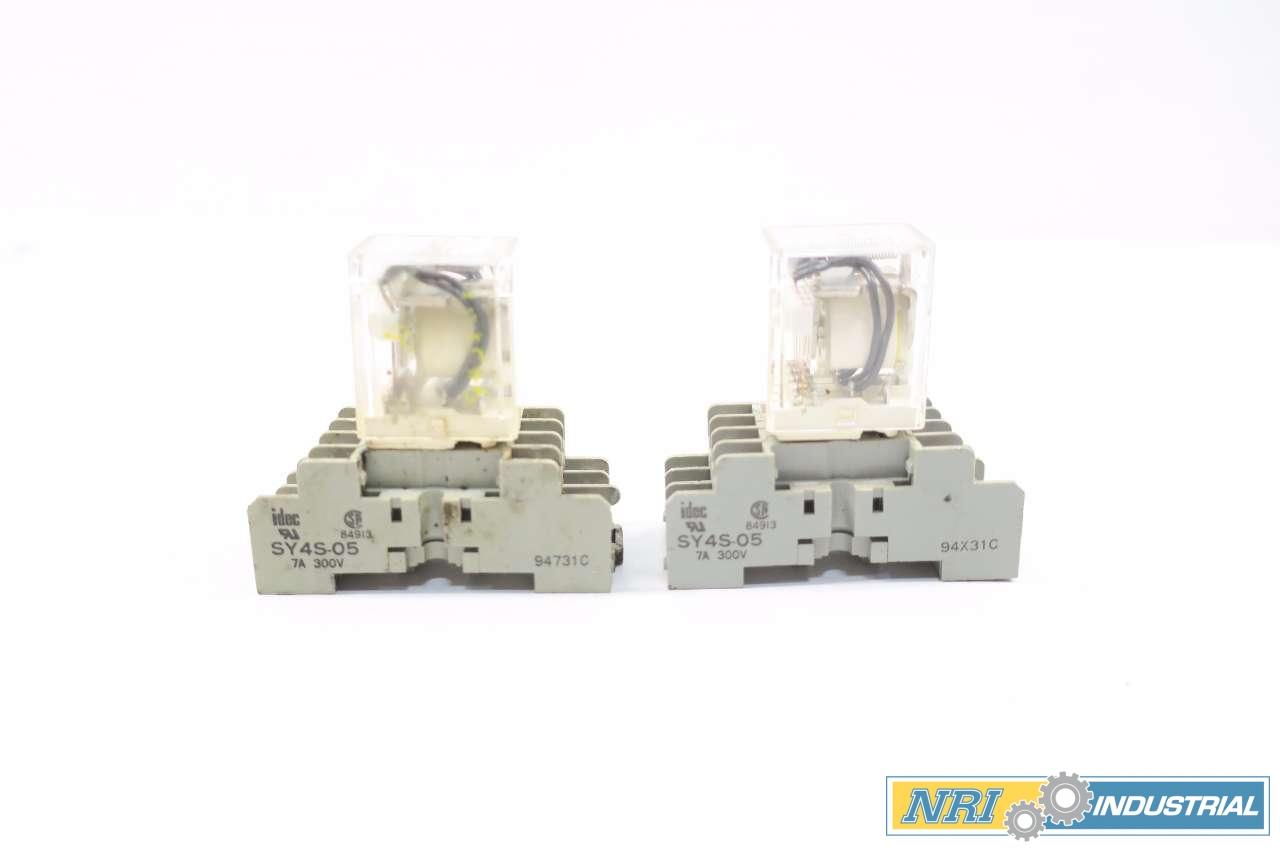

thumbzoomNRI IndustrialD57333929.9412POTTER BRUMFIELD29.94 @ 2
sourceresearch.comKHU-17D11-2444.7922Potter & Brumfield / Tyco44.79 @ 2
thumbzoomZoroG20097574798.612Te Connectivity98.6 @ 2
